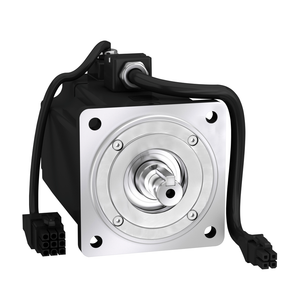

Schneider Electric BCH2LF0433CA5C 80Mm 400W 20Bit E. Oil S. Key Leads

Schneider Electric BCH2LF0433CA5C 80Mm 400W 20Bit E. Oil S. Key Leads

Schneider Electric
SKU:
BCH2LF0433CA5C
|
UPC:
3606480733703
$637.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of speed of rotation (3000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 2.29A and a continuous power of 400W. The shaft dimensions are 14mm (Diameter) x 30mm (Length). It is furnished with free lead for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 112mm (Length) x 80mm (Width), centring collar dimensions are 4mm (Depth) x 70mm (Diameter) with 90mm circle diameter of the mounting hole. It weighs 2kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 80mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Additional Information
Maximum Axial Force Fa:
115 N
Torque Constant:
0.55 N.m/A 20 °C
[Us] Rated Supply Voltage:
220 V || 110 V
Rotor Inertia:
0.67 kg.cm²
Holding Brake:
without
Product Compatibility:
LXM26D servo drive 0.4 kW, 220 V, single phase || LXM26D servo drive 0.4 kW, 220 V, three phase || LXM28... servo drive 0.4 kW, 220 V, single phase || LXM28... servo drive 0.4 kW, 220 V, three phase || LXM28... servo drive 0.4 kW, 110 V, single phase
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation:
X
Continuous Power:
400 W
Maximum Current Irms:
7.73 A LXM28... 0.4 kW, 220 V || 7.73 A LXM28... 0.4 kW, 110 V
Continuous Stall Torque:
1.27 N.m LXM26D 2.6 A, 220 V, single phase || 1.27 N.m LXM26D 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Continuous Stall Current:
2.29 A
Motor Flange Size:
80 mm
Type Of Cooling:
natural convection
Brake Pull-In Power:
10.2 W
Stator Resistance:
3.2 Ohm 20 °C
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Or Component Type:
servo motor
Feedback Type:
20 bits single turn absolute encoder
Peak Stall Torque:
3.81 N.m LXM26D 2.6 A, 220 V, single phase || 3.81 N.m LXM26D 2.6 A, 220 V, three phase || 3.81 N.m LXM28... 2.6 A, 220 V, single phase || 3.81 N.m LXM28... 2.6 A, 220 V, three phase || 3.81 N.m LXM28... 5.7 A, 110 V, single phase
Nominal Speed:
3000 rpm LXM26D 2.6 A, 220 V, single phase || 3000 rpm LXM26D 2.6 A, 220 V, three phase || 3000 rpm LXM28... 2.6 A, 220 V, single phase || 3000 rpm LXM28... 2.6 A, 220 V, three phase || 3000 rpm LXM28... 5.7 A, 110 V, single phase
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Shaft End:
keyed
Circularity Profile:
ENVEOLI1504002EN
Electrical Connection:
free lead
Maximum Radial Force Fr:
332 N 3000 rpm
Rohs Exemption Information:
Yes
Mounting Support:
asian standard flange
Shaft Diameter:
14 mm
Shaft Length:
30 mm
Length:
112 mm
Circle Diameter Of The Mounting Holes:
90 mm
Distance Shaft Shoulder-Flange:
4 mm
Centring Collar Diameter:
70 mm
Net Weight:
2 kg
Key Width:
5 mm
Phase:
single phase || three phase
Sustainable Offer Status:
Green Premium product
Nominal Output Power:
400 W LXM26D 2.6 A, 220 V, single phase || 400 W LXM26D 2.6 A, 220 V, three phase || 400 W LXM28... 2.6 A, 220 V, single phase || 400 W LXM28... 2.6 A, 220 V, three phase || 400 W LXM28... 5.7 A, 110 V, single phase
Ambient Air Temperature For Operation:
-20-40 °C
Maximum Permanent Current:
2.52 A
Stator Electrical Time Constant:
3.53 ms 20 °C
Mounting Holes Diameter:
6.6 mm
Pvc Free:
Yes
Mercury Free:
Yes
Centring Collar Depth:
4 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Number Of Mounting Holes:
4
Maximum Mechanical Speed:
5000 rpm
Back Emf Constant:
33.5 V/krpm 20 °C
Stator Inductance:
11.3 mH 20 °C
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Range Compatibility:
Lexium 28
Number Of Motor Stacks:
1
Nominal Torque:
1.27 N.m LXM26D 2.6 A, 220 V, single phase || 1.27 N.m LXM26D 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Device Short Name:
BCH2
