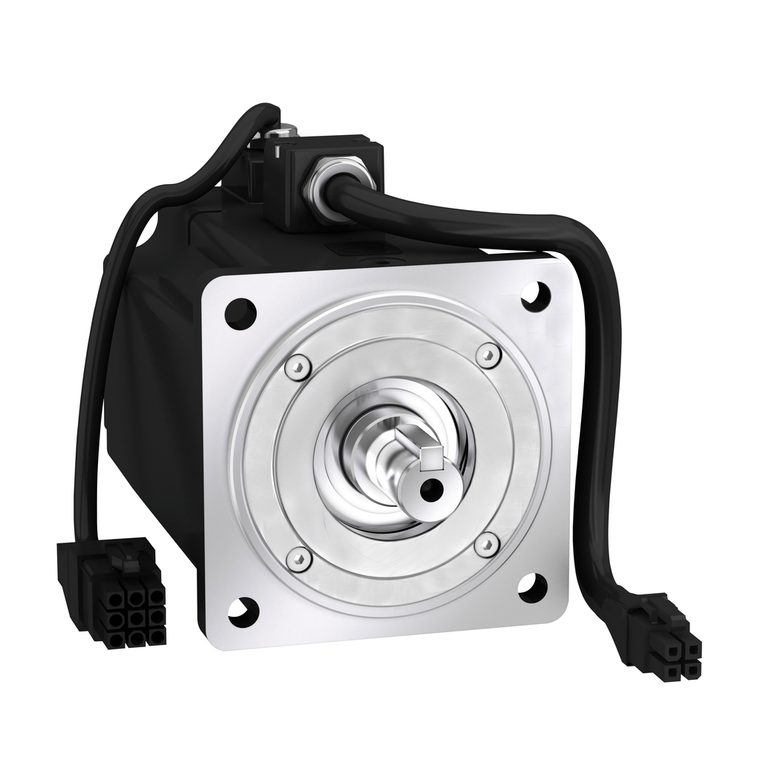

Schneider Electric BCH2LF0733CF5C 80Mm 750W 20Bit E. Oil S. Key Brk Leads

(No reviews yet) Write a Review
SKU:
BCH2LF0733CF5C
UPC:
3606480733871
Condition:
New
Rotor Inertia:
1.24 kg.cm²
Sustainable Offer Status:
Green Premium product
Nominal Speed:
3000 rpm LXM26D 4.5 A, 220 V, single phase || 3000 rpm LXM26D 4.5 A, 220 V, three phase || 3000 rpm LXM28... 4.5 A, 220 V, single phase || 3000 rpm LXM28... 4.5 A, 220 V, three phase || 3000 rpm LXM28... 9 A, 110 V, single phase
Torque Constant:
0.6 N.m/A 20 °C
Maximum Axial Force Fa:
115 N
Maximum Mechanical Speed:
5000 rpm
Product Compatibility:
LXM26D servo drive 0.75 kW, 220 V, single phase || LXM26D servo drive 0.75 kW, 220 V, three phase || LXM28... servo drive 0.75 kW, 220 V, single phase || LXM28... servo drive 0.75 kW, 220 V, three phase || LXM28... servo drive 0.75 kW, 110 V, single
Continuous Power:
750 W
China Rohs Regulation:
X
Distance Shaft Shoulder-Flange:
4 mm
Environmental Disclosure:
ENVPEP1504002EN
Stator Inductance:
6.1 mH 20 °C
Feedback Type:
20 bits single turn absolute encoder
Key Width:
6 mm
Pvc Free:
Yes
Nominal Torque:
2.39 N.m LXM26D 4.5 A, 220 V, single phase || 2.39 N.m LXM26D 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase
Reach Free Of Svhc:
Yes
Continuous Stall Torque:
2.39 N.m LXM26D 4.5 A, 220 V, single phase || 2.39 N.m LXM26D 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase
Centring Collar Depth:
4 mm
Shaft End:
keyed
Circle Diameter Of The Mounting Holes:
90 mm
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Range Compatibility:
Lexium 28
Stator Electrical Time Constant:
4.07 ms 20 °C
Back Emf Constant:
36 V/krpm 20 °C
Type Of Cooling:
natural convection
Electrical Connection:
free lead
Nominal Output Power:
750 W LXM26D 4.5 A, 220 V, single phase || 750 W LXM26D 4.5 A, 220 V, three phase || 750 W LXM28... 4.5 A, 220 V, single phase || 750 W LXM28... 4.5 A, 220 V, three phase || 750 W LXM28... 9 A, 110 V, single phase
Device Short Name:
BCH2
Phase:
single phase || three phase
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Shaft Diameter:
19 mm
Ambient Air Temperature For Operation:
0-40 °C
Mercury Free:
Yes
Stator Resistance:
1.5 Ohm 20 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Or Component Type:
servo motor
Holding Brake:
with
Brake Pull-In Power:
10.2 W
Number Of Motor Stacks:
2
Number Of Mounting Holes:
4
Centring Collar Diameter:
70 mm
Length:
178 mm
Peak Stall Torque:
7.16 N.m LXM26D 4.5 A, 220 V, single phase || 7.16 N.m LXM26D 4.5 A, 220 V, three phase || 7.16 N.m LXM28... 4.5 A, 220 V, single phase || 7.16 N.m LXM28... 4.5 A, 220 V, three phase || 7.16 N.m LXM28... 9 A, 110 V, single phase
Maximum Radial Force Fr:
332 N 3000 rpm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Maximum Permanent Current:
4.29 A
Mounting Holes Diameter:
6.6 mm
Net Weight:
3.6 kg
Circularity Profile:
ENVEOLI1504002EN
[Us] Rated Supply Voltage:
220 V || 110 V
Maximum Current Irms:
13.23 A LXM28... 0.75 kW, 220 V || 13.23 A LXM28... 0.75 kW, 110 V
Holding Torque:
2.5 N.m built-in
Mounting Support:
asian standard flange
Motor Flange Size:
80 mm
Shaft Length:
35 mm
Continuous Stall Current:
4.01 A
Catalog:
View
Datasheet:
View
$1,013.41

Description

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM, IP65 parallel keyed shaft and holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of speed of rotation (3000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 4.01A and a continuous power of 750W. The shaft dimensions are 19mm (Diameter) x 35mm (Length). It is furnished with free lead for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 178mm (Length) x 80mm (Width), centring collar dimensions are 4mm (Depth) x 70mm (Diameter) with 90mm circle diameter of the mounting hole. It weighs 3.6kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 80mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
