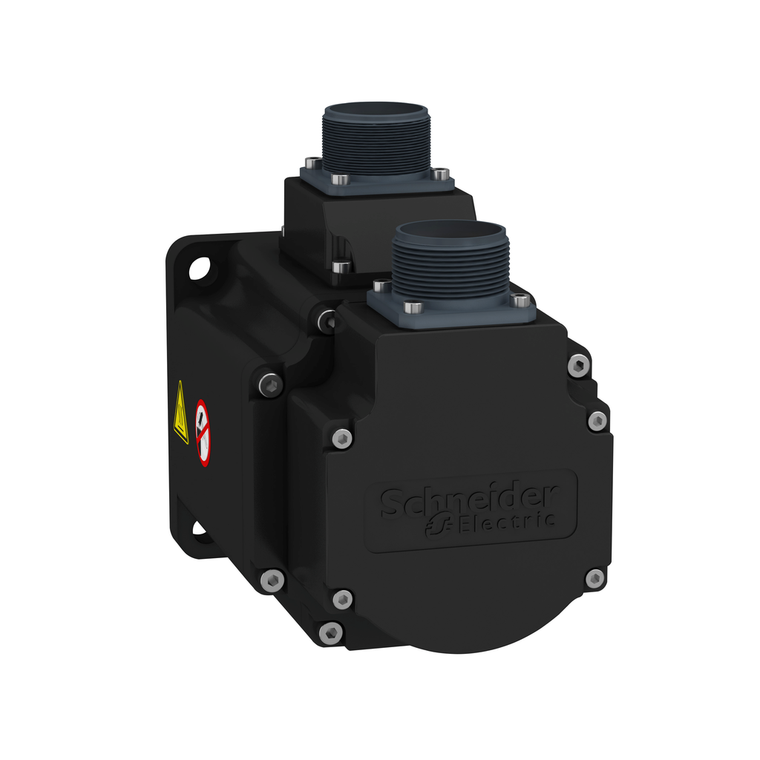

Schneider Electric BCH2LH1032CF6C 100Mm 1000W 20Bit E. Oil S. Brk Mil
SKU:
BCH2LH1032CF6C
UPC:
3.60648E+12
MPN:
Condition:
New
Peak Stall Torque:
9.54 N.m LXM28... 7 A, 220 V, single phase || 9.54 N.m LXM28... 7 A, 220 V, three phase
Nominal Torque:
3.18 N.m LXM28... 7 A, 220 V, single phase || 3.18 N.m LXM28... 7 A, 220 V, three phase
Maximum Radial Force Fr:
570 N 3000 rpm
Shaft Diameter:
22 mm
Circularity Profile:
ENVEOLI1504002EN
Circle Diameter Of The Mounting Holes:
115 mm
Shaft End:
smooth shaft
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rotor Inertia:
2.45 kg.cm²
Continuous Power:
1000 W
Nominal Speed:
3000 rpm LXM28... 7 A, 220 V, single phase || 3000 rpm LXM28... 7 A, 220 V, three phase
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
Feedback Type:
20 bits single turn absolute encoder
Number Of Mounting Holes:
4
Motor Flange Size:
100 mm
[Us] Rated Supply Voltage:
220 V
Stator Electrical Time Constant:
6.27 ms 20 °C
Maximum Current Irms:
18.9 A LXM28... 1 kW, 220 V
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Continuous Stall Torque:
3.18 N.m LXM28... 7 A, 220 V, single phase || 3.18 N.m LXM28... 7 A, 220 V, three phase
Type Of Cooling:
natural convection
Torque Constant:
0.55 N.m/A 20 °C
Holding Torque:
6.5 N.m built-in
Ambient Air Temperature For Operation:
0-40 °C
Range Compatibility:
Lexium 28
Electrical Connection:
connector MIL
Product Compatibility:
LXM28... servo drive 1 kW, 220 V, single phase || LXM28... servo drive 1 kW, 220 V, three phase
China Rohs Regulation:
X
Nominal Output Power:
1000 W LXM28... 7 A, 220 V, single phase || 1000 W LXM28... 7 A, 220 V, three phase
Holding Brake:
with
Environmental Disclosure:
ENVPEP1504002EN
Mercury Free:
Yes
Mounting Support:
asian standard flange
Centring Collar Diameter:
95 mm
Back Emf Constant:
33 V/krpm 20 °C
Brake Pull-In Power:
10.4 W
Shaft Length:
45 mm
Phase:
three phase || single phase
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Free Of Svhc:
Yes
Pvc Free:
Yes
Maximum Axial Force Fa:
200 N
Mounting Holes Diameter:
9.2 mm
Length:
180.5 mm
Maximum Mechanical Speed:
5000 rpm
Stator Resistance:
0.67 Ohm 20 °C
Device Short Name:
BCH2
Continuous Stall Current:
5.83 A
Net Weight:
5.1 kg
Stator Inductance:
4.2 mH 20 °C
Reach Regulation:
Free of Substances of Very High Concern above the threshold
