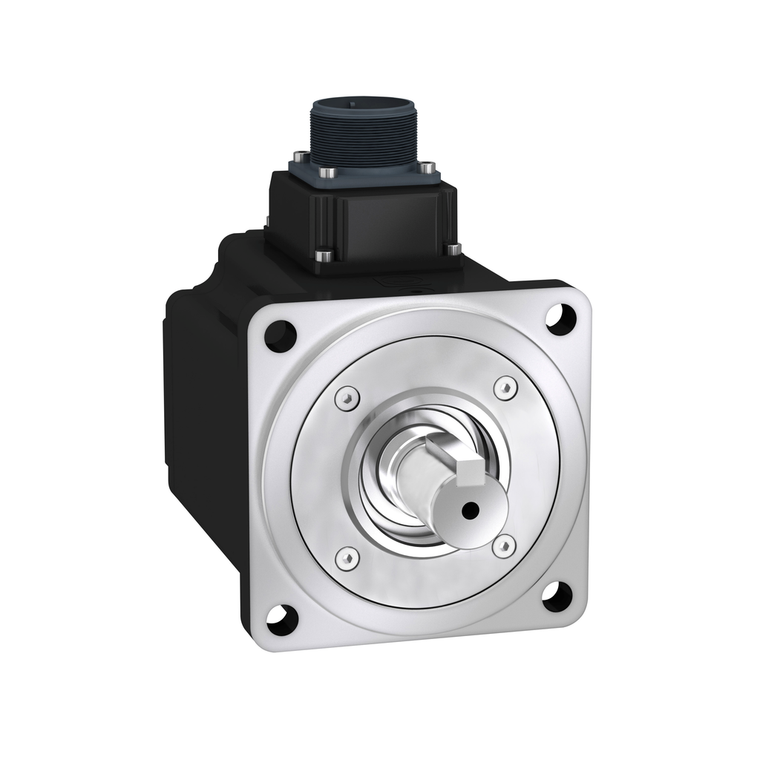

Schneider Electric BCH2LH2033CA6C 100Mm 2000W 20Bit E. Oil S. Key Mil

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric BCH2LH2033CA6C 100Mm 2000W 20Bit E. Oil S. Key Mil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BCH2LH2033CA6C

UPC:

3.60648E+12

MPN:

Condition:

New

Rotor Inertia:

4.28 kg.cm²

Range Compatibility:

Lexium 28

Distance Shaft Shoulder-Flange:

7 mm

Circularity Profile:

ENVEOLI1504002EN

Torque Constant:

0.65 N.m/A 20 °C

Nominal Speed:

3000 rpm LXM26D 12 A, 220 V, three phase || 3000 rpm LXM28... 12 A, 220 V, three phase

China Rohs Regulation:

X

Shaft Diameter:

22 mm

Number Of Mounting Holes:

4

[Us] Rated Supply Voltage:

220 V

Maximum Radial Force Fr:

570 N 3000 rpm

Continuous Stall Current:

9.87 A

Type Of Cooling:

natural convection

Nominal Output Power:

2000 W LXM26D 12 A, 220 V, three phase || 2000 W LXM28... 12 A, 220 V, three phase

Centring Collar Diameter:

95 mm

Stator Inductance:

2.59 mH 20 °C

Phase:

three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mounting Support:

asian standard flange

Ip Degree Of Protection:

IP50 IM V3 || IP65 IM B5, IM V1

Back Emf Constant:

39 V/krpm 20 °C

Mounting Holes Diameter:

9.2 mm

Net Weight:

6.7 kg

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Mechanical Speed:

5000 rpm

Centring Collar Depth:

7 mm

Motor Flange Size:

100 mm

Mercury Free:

Yes

Stator Resistance:

0.36 Ohm 20 °C

Product Or Component Type:

servo motor

Circle Diameter Of The Mounting Holes:

115 mm

Brake Pull-In Power:

10.4 W

Sustainable Offer Status:

Green Premium product

Maximum Current Irms:

32.3 A LXM26D 2 kW, 220 V || 32.3 A LXM28... 2 kW, 220 V

Environmental Disclosure:

ENVPEP1504002EN

Ambient Air Temperature For Operation:

-20-40 °C

Maximum Axial Force Fa:

200 N

Product Compatibility:

LXM26D servo drive 2 kW, 220 V, three phase || LXM28... servo drive 2 kW, 220 V, three phase

Stator Electrical Time Constant:

7.19 ms 20 °C

Continuous Stall Torque:

6.37 N.m LXM26D 12 A, 220 V, three phase || 6.37 N.m LXM28... 12 A, 220 V, three phase

Length:

198.5 mm

Electrical Connection:

connector MIL

Peak Stall Torque:

19.11 N.m LXM26D 12 A, 220 V, three phase || 19.11 N.m LXM28... 12 A, 220 V, three phase

Holding Brake:

without

Number Of Motor Stacks:

2

Pvc Free:

Yes

Reach Free Of Svhc:

Yes

Shaft End:

keyed

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Key Width:

8 mm

Maximum Permanent Current:

10.27 A

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Device Short Name:

BCH2

Feedback Type:

20 bits single turn absolute encoder

Shaft Length:

45 mm

Continuous Power:

2000 W

Nominal Torque:

6.37 N.m LXM26D 12 A, 220 V, three phase || 6.37 N.m LXM28... 12 A, 220 V, three phase
