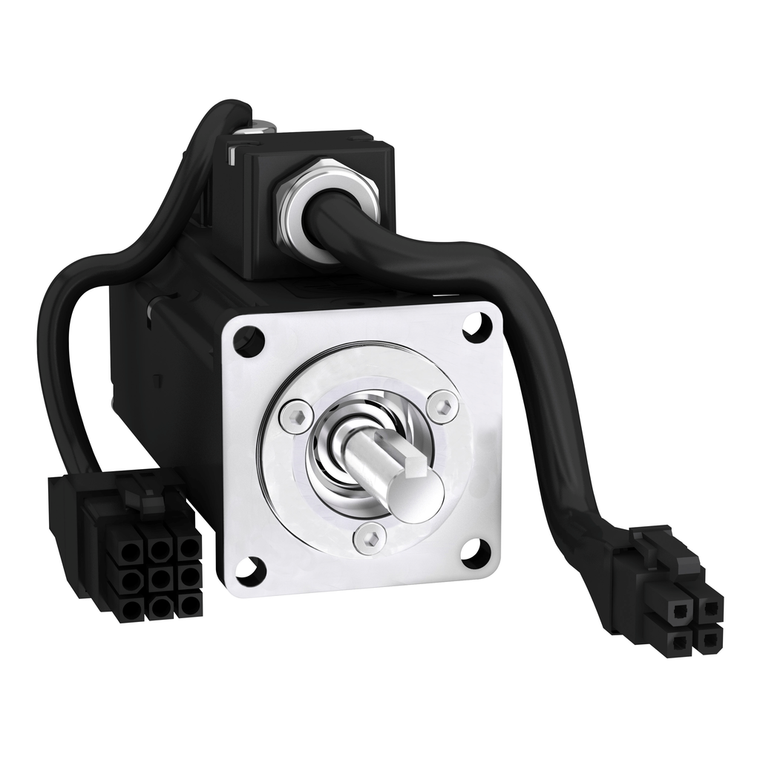

Schneider Electric BCH2MBA533CA5C 40Mm 50W 20Bit E. Oil S. Key Leads
SKU:
BCH2MBA533CA5C
UPC:
3606480733383
MPN:
Condition:
New
Back Emf Constant:
18 V/krpm 20 °C
Length:
82 mm
Torque Constant:
0.3 N.m/A 20 °C
Device Short Name:
BCH2
Mounting Holes Diameter:
4.5 mm
Maximum Axial Force Fa:
40 N
Maximum Current Irms:
1.77 A LXM28... 0.05 kW, 220 V || 1.77 A LXM28... 0.05 kW, 110 V
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Maximum Permanent Current:
0.59 A
Continuous Power:
50 W
Mercury Free:
Yes
Nominal Output Power:
50 W LXM26D 0.64 A, 220 V, single phase || 50 W LXM26D 0.64 A, 220 V, three phase || 50 W LXM28... 0.64 A, 220 V, single phase || 50 W LXM28... 0.64 A, 220 V, three phase || 50 W LXM28... 1.2 A, 110 V, single phase
Number Of Mounting Holes:
4
Holding Brake:
without
Feedback Type:
20 bits single turn absolute encoder
Shaft Length:
25 mm
Centring Collar Depth:
3 mm
Stator Electrical Time Constant:
0.8 ms 20 °C
Continuous Stall Torque:
0.16 N.m LXM26D 0.64 A, 220 V, single phase || 0.16 N.m LXM26D 0.64 A, 220 V, three phase || 0.16 N.m LXM28... 0.64 A, 220 V, single phase || 0.16 N.m LXM28... 0.64 A, 220 V, three phase || 0.16 N.m LXM28... 1.2 A, 110 V, single phase
Number Of Motor Stacks:
1
Motor Flange Size:
40 mm
Product Or Component Type:
servo motor
Maximum Mechanical Speed:
5000 rpm
Rotor Inertia:
0.054 kg.cm²
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Us] Rated Supply Voltage:
220 V || 110 V
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Electrical Connection:
free lead
Shaft End:
keyed
Centring Collar Diameter:
30 mm
Shaft Diameter:
8 mm
Type Of Cooling:
natural convection
Pvc Free:
Yes
Continuous Stall Current:
0.54 A
Net Weight:
0.4 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Brake Pull-In Power:
4.35 W
Circle Diameter Of The Mounting Holes:
46 mm
Distance Shaft Shoulder-Flange:
3 mm
Product Compatibility:
LXM26D servo drive 0.05 kW, 220 V, single phase || LXM26D servo drive 0.05 kW, 220 V, three phase || LXM28... servo drive 0.05 kW, 220 V, single phase || LXM28... servo drive 0.05 kW, 220 V, three phase || LXM28... servo drive 0.05 kW, 110 V, single
Reach Free Of Svhc:
Yes
Key Width:
3 mm
Range Compatibility:
Lexium 28
Environmental Disclosure:
ENVPEP1504002EN
Ambient Air Temperature For Operation:
-20-40 °C
Phase:
three phase || single phase
Stator Resistance:
31 Ohm 20 °C
Nominal Torque:
0.16 N.m LXM26D 0.64 A, 220 V, single phase || 0.16 N.m LXM26D 0.64 A, 220 V, three phase || 0.16 N.m LXM28... 0.64 A, 220 V, single phase || 0.16 N.m LXM28... 0.64 A, 220 V, three phase || 0.16 N.m LXM28... 1.2 A, 110 V, single phase
Mounting Support:
asian standard flange
Nominal Speed:
3000 rpm LXM26D 0.64 A, 220 V, single phase || 3000 rpm LXM26D 0.64 A, 220 V, three phase || 3000 rpm LXM28... 0.64 A, 220 V, single phase || 3000 rpm LXM28... 0.64 A, 220 V, three phase || 3000 rpm LXM28... 1.2 A, 110 V, single phase
Circularity Profile:
ENVEOLI1504002EN
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
X
Peak Stall Torque:
0.48 N.m LXM26D 0.64 A, 220 V, single phase || 0.48 N.m LXM26D 0.64 A, 220 V, three phase || 0.48 N.m LXM28... 0.64 A, 220 V, single phase || 0.48 N.m LXM28... 0.64 A, 220 V, three phase || 0.48 N.m LXM28... 1.2 A, 110 V, single phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed...
