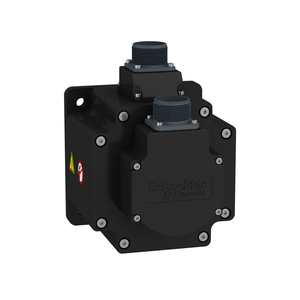

Schneider Electric BCH2MM0313CF6C 130Mm 300W 20Bit E. Oil S. Key Brk Mil

SKU:

BCH2MM0313CF6C

UPC:

3606480734519

MPN:

Condition:

New

Feedback Type:

20 bits single turn absolute encoder

Continuous Stall Current:

1.88 A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Stator Inductance:

24.9 mH 20 °C

Length:

183 mm

Continuous Power:

300 W

Range Compatibility:

Lexium 28

Electrical Connection:

connector MIL

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Current Irms:

5.98 A LXM28... 0.3 kW, 220 V || 5.98 A LXM28... 0.3 kW, 110 V

Net Weight:

8.2 kg

Type Of Cooling:

natural convection

Circle Diameter Of The Mounting Holes:

145 mm

Sustainable Offer Status:

Green Premium product

Rohs Exemption Information:

Yes

Mounting Holes Diameter:

9.2 mm

Ip Degree Of Protection:

IP50 IM V3 || IP65 IM B5, IM V1

Phase:

three phase || single phase

Maximum Axial Force Fa:

200 N

Shaft End:

keyed

[Us] Rated Supply Voltage:

220 V || 110 V

Number Of Motor Stacks:

1

Rotor Inertia:

6.91 kg.cm²

Key Width:

8 mm

Mounting Support:

asian standard flange

Reach Free Of Svhc:

Yes

Device Short Name:

BCH2

Nominal Torque:

2.86 N.m LXM26D 2.6 A, 220 V, single phase || 2.86 N.m LXM26D 2.6 A, 220 V, three phase || 2.86 N.m LXM28... 2.6 A, 220 V, single phase || 2.86 N.m LXM28... 2.6 A, 220 V, three phase || 2.86 N.m LXM28... 5.7 A, 110 V, single phase

China Rohs Regulation:

X

Maximum Permanent Current:

2.09 A

Ambient Air Temperature For Operation:

0-40 °C

Stator Resistance:

1.93 Ohm 20 °C

Holding Brake:

with

Motor Flange Size:

130 mm

Torque Constant:

1.52 N.m/A 20 °C

Continuous Stall Torque:

2.86 N.m LXM26D 2.6 A, 220 V, single phase || 2.86 N.m LXM26D 2.6 A, 220 V, three phase || 2.86 N.m LXM28... 2.6 A, 220 V, single phase || 2.86 N.m LXM28... 2.6 A, 220 V, three phase || 2.86 N.m LXM28... 5.7 A, 110 V, single phase

Shaft Length:

45 mm

Shaft Diameter:

22 mm

Product Or Component Type:

servo motor

Nominal Output Power:

300 W LXM26D 2.6 A, 220 V, single phase || 300 W LXM26D 2.6 A, 220 V, three phase || 300 W LXM28... 2.6 A, 220 V, single phase || 300 W LXM28... 2.6 A, 220 V, three phase || 300 W LXM28... 5.7 A, 110 V, single phase

Distance Shaft Shoulder-Flange:

8 mm

Nominal Speed:

1000 rpm LXM26D 2.6 A, 220 V, single phase || 1000 rpm LXM26D 2.6 A, 220 V, three phase || 1000 rpm LXM28... 2.6 A, 220 V, single phase || 1000 rpm LXM28... 2.6 A, 220 V, three phase || 1000 rpm LXM28... 5.7 A, 110 V, single phase

Maximum Mechanical Speed:

3000 rpm

Product Compatibility:

LXM26D servo drive 0.3 kW, 220 V, single phase || LXM26D servo drive 0.3 kW, 220 V, three phase || LXM28... servo drive 0.3 kW, 220 V, single phase || LXM28... servo drive 0.3 kW, 220 V, three phase || LXM28... servo drive 0.3 kW, 110 V, single phase

Circularity Profile:

ENVEOLI1504002EN

Number Of Mounting Holes:

4

Mercury Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Environmental Disclosure:

ENVPEP1504002EN

Maximum Radial Force Fr:

670 N 1000 rpm

Holding Torque:

9.6 N.m built-in

Back Emf Constant:

92 V/krpm 20 °C

Brake Pull-In Power:

19.7 W

Stator Electrical Time Constant:

12.9 ms 20 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Centring Collar Diameter:

110 mm

Centring Collar Depth:

8 mm

Peak Stall Torque:

8.59 N.m LXM26D 2.6 A, 220 V, single phase || 8.59 N.m LXM26D 2.6 A, 220 V, three phase || 8.59 N.m LXM28... 2.6 A, 220 V, single phase || 8.59 N.m LXM28... 2.6 A, 220 V, three phase || 8.59 N.m LXM28... 5.7 A, 110 V, single phase
