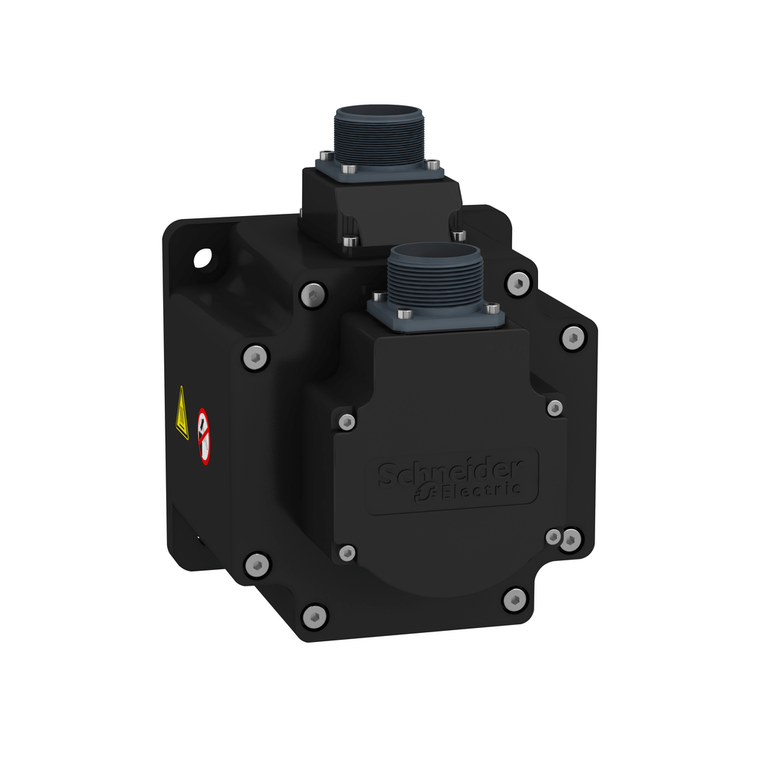

Schneider Electric BCH2MM0613CF6C 130Mm 600W 20Bit E. Oil S. Key Brk Mil

Schneider Electric BCH2MM0613CF6C 130Mm 600W 20Bit E. Oil S. Key Brk Mil

Schneider Electric
SKU:
BCH2MM0613CF6C
|
UPC:
3606480734595
$3,478.80
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
servo motor BCH, Lexium 28, 130mm, 600W, 6.91kg.cm², with oil seal, with key, brake, straight connection
Additional Information
Stator Electrical Time Constant:
12.9 ms 20 °C
Number Of Mounting Holes:
4
Stator Inductance:
24.9 mH 20 °C
Key Width:
8 mm
Nominal Output Power:
600 W LXM26D 4.5 A, 220 V, single phase || 600 W LXM26D 4.5 A, 220 V, three phase || 600 W LXM28... 4.5 A, 220 V, single phase || 600 W LXM28... 4.5 A, 220 V, three phase || 600 W LXM28... 9 A, 110 V, single phase
Peak Stall Torque:
17.19 N.m LXM26D 4.5 A, 220 V, single phase || 17.19 N.m LXM26D 4.5 A, 220 V, three phase || 17.19 N.m LXM28... 4.5 A, 220 V, single phase || 17.19 N.m LXM28... 4.5 A, 220 V, three phase || 17.19 N.m LXM28... 9 A, 110 V, single phase
Brake Pull-In Power:
19.7 W
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
X
Continuous Stall Torque:
5.73 N.m LXM26D 4.5 A, 220 V, single phase || 5.73 N.m LXM26D 4.5 A, 220 V, three phase || 5.73 N.m LXM28... 4.5 A, 220 V, single phase || 5.73 N.m LXM28... 4.5 A, 220 V, three phase || 5.73 N.m LXM28... 9 A, 110 V, single phase
Nominal Torque:
5.73 N.m LXM26D 4.5 A, 220 V, single phase || 5.73 N.m LXM26D 4.5 A, 220 V, three phase || 5.73 N.m LXM28... 4.5 A, 220 V, single phase || 5.73 N.m LXM28... 4.5 A, 220 V, three phase || 5.73 N.m LXM28... 9 A, 110 V, single phase
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Continuous Stall Current:
3.77 A
Device Short Name:
BCH2
Torque Constant:
1.52 N.m/A 20 °C
Electrical Connection:
connector MIL
Motor Flange Size:
130 mm
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Phase:
single phase || three phase
Maximum Radial Force Fr:
670 N 1000 rpm
Mounting Support:
asian standard flange
Net Weight:
8.2 kg
Shaft Length:
45 mm
Maximum Axial Force Fa:
200 N
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Nominal Speed:
1000 rpm LXM26D 4.5 A, 220 V, single phase || 1000 rpm LXM26D 4.5 A, 220 V, three phase || 1000 rpm LXM28... 4.5 A, 220 V, single phase || 1000 rpm LXM28... 4.5 A, 220 V, three phase || 1000 rpm LXM28... 9 A, 110 V, single phase
Centring Collar Depth:
8 mm
Maximum Permanent Current:
4.1 A
Range Compatibility:
Lexium 28
Shaft End:
keyed
Mercury Free:
Yes
Back Emf Constant:
92 V/krpm 20 °C
Holding Brake:
with
Maximum Current Irms:
13.44 A LXM28... 0.6 kW, 220 V || 13.44 A LXM28... 0.6 kW, 110 V
Length:
183 mm
Centring Collar Diameter:
110 mm
Holding Torque:
9.6 N.m built-in
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation:
0-40 °C
Rohs Exemption Information:
Yes
Type Of Cooling:
natural convection
[Us] Rated Supply Voltage:
220 V || 110 V
Number Of Motor Stacks:
1
Reach Free Of Svhc:
Yes
Distance Shaft Shoulder-Flange:
8 mm
Environmental Disclosure:
ENVPEP1504002EN
Pvc Free:
Yes
Mounting Holes Diameter:
9.2 mm
Feedback Type:
20 bits single turn absolute encoder
Product Compatibility:
LXM26D servo drive 0.6 kW, 220 V, single phase || LXM26D servo drive 0.6 kW, 220 V, three phase || LXM28... servo drive 0.6 kW, 220 V, single phase || LXM28... servo drive 0.6 kW, 220 V, three phase || LXM28... servo drive 0.6 kW, 110 V, single phase
Shaft Diameter:
22 mm
Product Or Component Type:
servo motor
Continuous Power:
600 W
Stator Resistance:
1.93 Ohm 20 °C
Circularity Profile:
ENVEOLI1504002EN
Rotor Inertia:
6.91 kg.cm²
Maximum Mechanical Speed:
3000 rpm
Circle Diameter Of The Mounting Holes:
145 mm
