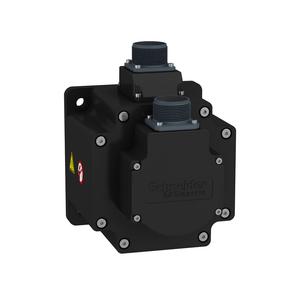

Schneider Electric BCH2MM0913CF6C 130Mm 900W 20Bit E. Oil S. Key Brk Mil

(No reviews yet) Write a Review

Write a Review

Schneider Electric BCH2MM0913CF6C 130Mm 900W 20Bit E. Oil S. Key Brk Mil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BCH2MM0913CF6C

UPC:

3606480734670

MPN:

Condition:

New

Peak Stall Torque:

25.77 N.m LXM26D 7 A, 220 V, single phase || 25.77 N.m LXM26D 7 A, 220 V, three phase || 25.77 N.m LXM28... 7 A, 220 V, single phase || 25.77 N.m LXM28... 7 A, 220 V, three phase

Sustainable Offer Status:

Green Premium product

Motor Flange Size:

130 mm

Rotor Inertia:

10 kg.cm²

Continuous Power:

900 W

Feedback Type:

20 bits single turn absolute encoder

Mounting Support:

asian standard flange

Pvc Free:

Yes

Nominal Speed:

1000 rpm LXM26D 7 A, 220 V, single phase || 1000 rpm LXM26D 7 A, 220 V, three phase || 1000 rpm LXM28... 7 A, 220 V, single phase || 1000 rpm LXM28... 7 A, 220 V, three phase

Maximum Current Irms:

19.81 A LXM28... 0.9 kW, 220 V

Brake Pull-In Power:

19.7 W

Number Of Motor Stacks:

2

Maximum Mechanical Speed:

3000 rpm

Range Compatibility:

Lexium 28

Maximum Axial Force Fa:

200 N

Circularity Profile:

ENVEOLI1504002EN

Torque Constant:

1.52 N.m/A 20 °C

Ip Degree Of Protection:

IP50 IM V3 || IP65 IM B5, IM V1

Key Width:

8 mm

Holding Torque:

9.6 N.m built-in

Circle Diameter Of The Mounting Holes:

145 mm

Back Emf Constant:

92 V/krpm 20 °C

Nominal Output Power:

900 W LXM26D 7 A, 220 V, single phase || 900 W LXM26D 7 A, 220 V, three phase || 900 W LXM28... 7 A, 220 V, single phase || 900 W LXM28... 7 A, 220 V, three phase

Centring Collar Depth:

8 mm

Product Compatibility:

LXM26D servo drive 0.9 kW, 220 V, single phase || LXM26D servo drive 0.9 kW, 220 V, three phase || LXM28... servo drive 0.9 kW, 220 V, single phase || LXM28... servo drive 0.9 kW, 220 V, three phase

Product Or Component Type:

servo motor

Nominal Torque:

8.59 N.m LXM26D 7 A, 220 V, single phase || 8.59 N.m LXM26D 7 A, 220 V, three phase || 8.59 N.m LXM28... 7 A, 220 V, single phase || 8.59 N.m LXM28... 7 A, 220 V, three phase

China Rohs Regulation:

X

Stator Electrical Time Constant:

12.52 ms 20 °C

Environmental Disclosure:

ENVPEP1504002EN

Shaft Diameter:

22 mm

Reach Free Of Svhc:

Yes

Distance Shaft Shoulder-Flange:

8 mm

Ambient Air Temperature For Operation:

0-40 °C

Length:

198 mm

Stator Inductance:

14.9 mH 20 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Continuous Stall Torque:

8.59 N.m LXM26D 7 A, 220 V, single phase || 8.59 N.m LXM26D 7 A, 220 V, three phase || 8.59 N.m LXM28... 7 A, 220 V, single phase || 8.59 N.m LXM28... 7 A, 220 V, three phase

Mounting Holes Diameter:

9.2 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Number Of Mounting Holes:

4

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Shaft End:

keyed

Rohs Exemption Information:

Yes

Electrical Connection:

connector MIL

[Us] Rated Supply Voltage:

220 V

Type Of Cooling:

natural convection

Continuous Stall Current:

5.64 A

Net Weight:

8.8 kg

Shaft Length:

55 mm

Centring Collar Diameter:

110 mm

Phase:

single phase || three phase

Stator Resistance:

1.19 Ohm 20 °C

Maximum Radial Force Fr:

670 N 1000 rpm

Maximum Permanent Current:

6.15 A

Device Short Name:

BCH2

Holding Brake:

with

Mercury Free:

Yes
