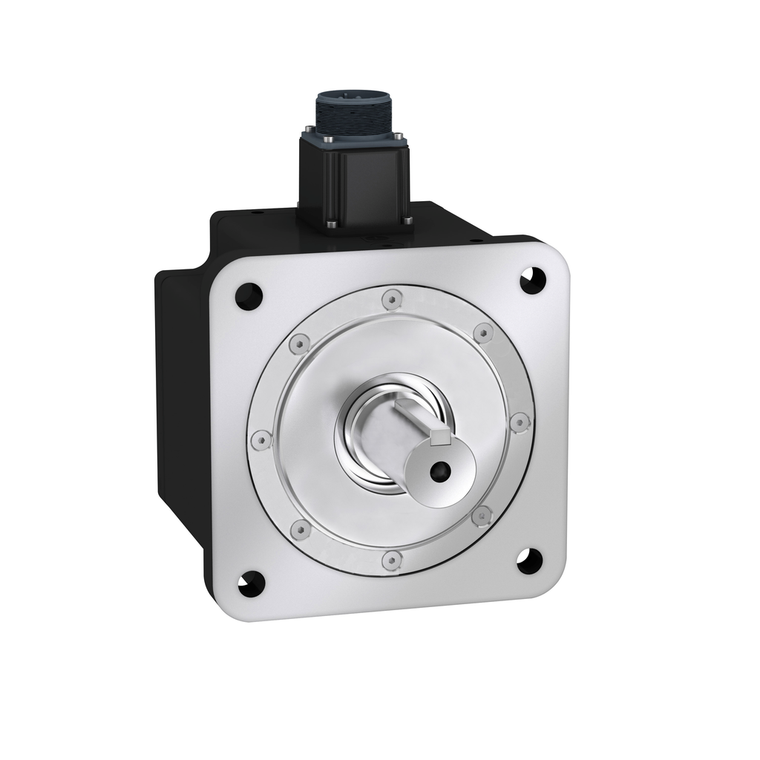

Schneider Electric BCH2MR2023CA6C 180Mm 2000W 20Bit E. Oil S. Key Mil

SKU:

BCH2MR2023CA6C

UPC:

3606480734748

MPN:

Condition:

New

Maximum Axial Force Fa:

497 N

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Continuous Power:

2000 W

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Stator Electrical Time Constant:

15.49 ms 20 °C

Continuous Stall Torque:

9.55 N.m LXM26D 12 A, 220 V, three phase || 9.55 N.m LXM28... 12 A, 220 V, three phase || 9.55 N.m

Length:

169 mm

Mercury Free:

Yes

Nominal Speed:

2000 rpm || 2000 rpm LXM26D 12 A, 220 V, three phase || 2000 rpm LXM28... 12 A, 220 V, three phase

Back Emf Constant:

66 V/krpm 20 °C

Feedback Type:

20 bits single turn absolute encoder

China Rohs Regulation:

X

Circularity Profile:

ENVEOLI1504002EN

Motor Flange Size:

180 mm

Phase:

three phase

Product Or Component Type:

servo motor

Shaft Length:

79 mm

Shaft End:

keyed

Holding Brake:

without

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Stator Resistance:

0.572 Ohm 20 °C

Number Of Motor Stacks:

1

Peak Stall Torque:

28.65 N.m LXM26D 12 A, 220 V, three phase || 28.65 N.m LXM28... 12 A, 220 V, three phase || 28.65 N.m

Brake Pull-In Power:

49.6 W

Product Compatibility:

LXM26D servo drive 2 kW, 220 V, three phase || LXM28... servo drive 2 kW, 220 V, three phase

Pvc Free:

Yes

Nominal Output Power:

2000 W LXM26D 12 A, 220 V, three phase || 2000 W LXM28... 12 A, 220 V, three phase || 2000 W

Number Of Mounting Holes:

4

Key Width:

10 mm

[Us] Rated Supply Voltage:

220 V

Stator Inductance:

8.86 mH 20 °C

Maximum Mechanical Speed:

3000 rpm

Ambient Air Temperature For Operation:

-20-40 °C

Environmental Disclosure:

ENVPEP1504002EN

Mounting Holes Diameter:

13.5 mm

Sustainable Offer Status:

Green Premium product

Shaft Diameter:

35 mm

Net Weight:

13 kg

Type Of Cooling:

natural convection

Ip Degree Of Protection:

IP50 IM V3 || IP65 IM B5, IM V1

Device Short Name:

BCH2

Nominal Torque:

9.55 N.m LXM26D 12 A, 220 V, three phase || 9.55 N.m LXM28... 12 A, 220 V, three phase || 9.55 N.m

Continuous Stall Current:

8.75 A

Maximum Radial Force Fr:

1200 N 2000 rpm

Mounting Support:

asian standard flange

Centring Collar Diameter:

114.3 mm

Torque Constant:

1.09 N.m/A 20 °C

Electrical Connection:

connector MIL

Distance Shaft Shoulder-Flange:

4 mm

Maximum Current Irms:

35.4 A 2 kW, 220 V || 35.4 A LXM28... 2 kW, 220 V

Reach Free Of Svhc:

Yes

Rotor Inertia:

26.5 kg.cm²

Centring Collar Depth:

4 mm

Range Compatibility:

Lexium 28

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Circle Diameter Of The Mounting Holes:

200 mm

Maximum Permanent Current:

9.6 A
