Schneider Electric

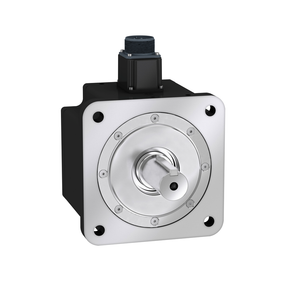

Schneider Electric BCH2MR4512CA6C 180Mm 4500W 20Bit E. Oil S. Mil

SKU:

BCH2MR4512CA6C

UPC:

3606480735042

MPN:

Condition:

New

Ambient Air Temperature For Operation:

-20-40 °C

Brake Pull-In Power:

49.6 W

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Holding Brake:

without

Mounting Support:

asian standard flange

Stator Electrical Time Constant:

19.1 ms 20 °C

Maximum Current Irms:

57.6 A LXM28... 4.5 kW, 220 V

Maximum Axial Force Fa:

497 N

Circle Diameter Of The Mounting Holes:

200 mm

Mercury Free:

Yes

Feedback Type:

20 bits single turn absolute encoder

Back Emf Constant:

88 V/krpm 20 °C

Length:

235 mm

China Rohs Regulation:

X

Peak Stall Torque:

71.62 N.m LXM28... 22.9 A, 220 V, three phase

Circularity Profile:

ENVEOLI1504002EN

Centring Collar Depth:

4 mm

Nominal Speed:

1500 rpm LXM28... 22.9 A, 220 V, three phase

Sustainable Offer Status:

Green Premium product

Electrical Connection:

connector MIL

Stator Inductance:

3.8 mH 20 °C

Mounting Holes Diameter:

13.5 mm

Nominal Output Power:

4500 W LXM28... 22.9 A, 220 V, three phase

Product Compatibility:

LXM28... servo drive 4.5 kW, 220 V, three phase

Number Of Motor Stacks:

3

Nominal Torque:

28.65 N.m LXM28... 22.9 A, 220 V, three phase

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Range Compatibility:

Lexium 28

Shaft Diameter:

35 mm

Shaft Length:

79 mm

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

IP50 IM V3 || IP65 IM B5, IM V1

[Us] Rated Supply Voltage:

220 V

Centring Collar Diameter:

114.3 mm

Maximum Mechanical Speed:

3000 rpm

Continuous Power:

4500 W

Maximum Permanent Current:

22.8 A

Continuous Stall Torque:

28.65 N.m LXM28... 22.9 A, 220 V, three phase

Environmental Disclosure:

ENVPEP1504002EN

Rotor Inertia:

73.32 kg.cm²

Net Weight:

23.64 kg

Type Of Cooling:

natural convection

Maximum Radial Force Fr:

1200 N 1500 rpm

Torque Constant:

1.46 N.m/A 20 °C

Motor Flange Size:

180 mm

Phase:

three phase

Continuous Stall Current:

19.68 A

Shaft End:

smooth shaft

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Or Component Type:

servo motor

Distance Shaft Shoulder-Flange:

4 mm

Reach Free Of Svhc:

Yes

Stator Resistance:

0.199 Ohm 20 °C

Number Of Mounting Holes:

4

Device Short Name:

BCH2
