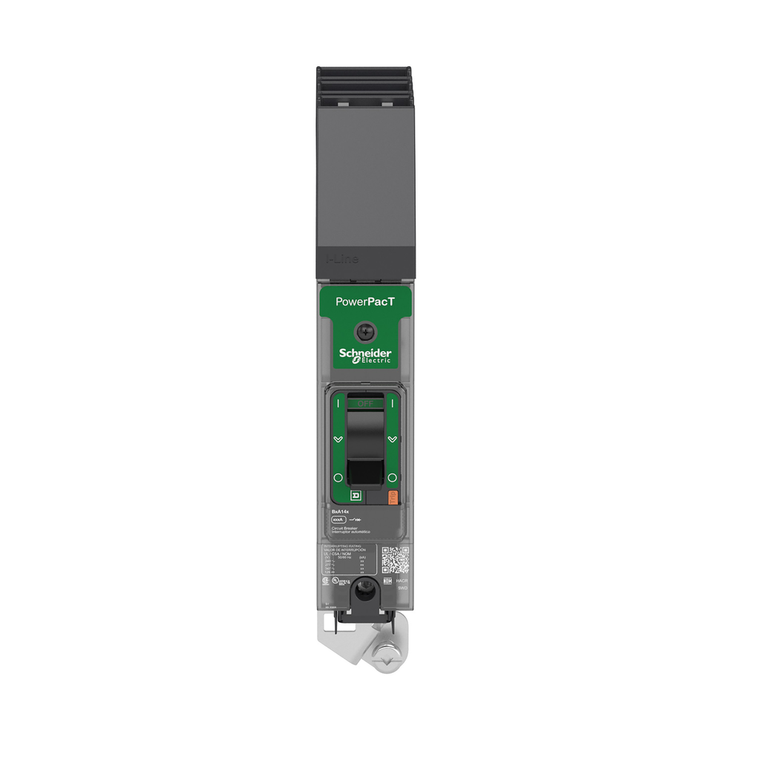

Schneider Electric BDA140603 Molded Case Circuit Breaker 277V 60A

Schneider Electric BDA140603 Molded Case Circuit Breaker 277V 60A

Schneider Electric
SKU:
BDA140603
|
UPC:
3606481151650
Availability:
Factory stock
$281.38
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 60A, 1 pole, circuit breaker has a breaking capacity of 18kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with a B phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Product Name:
PowerPact B
Device Short Name:
BD 060
Pollution Degree:
3 IEC 60947-1
9 Mm Pitches:
3
Local Signalling:
presence of auxiliary contacts flag green)
Width:
27 mm
Line Rated Current:
60-60 A
Breaking Capacity Code:
D
Mercury Free:
Yes
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz UL 489
Color:
Gray RAL 7016)
Halogen Content Performance:
Halogen free product
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Continuous Current Rating:
0.8
Product Or Component Type:
circuit breaker
Sustainable Offer Status:
Green Premium product
Wire Stripping Length:
20 mm
Quantity Per Set:
set of 1
Breaking Capacity:
25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480Y/277 V AC 50/60 Hz UL 489 || 10 kA 125 V DC 50/60 Hz UL 489 || 14 kA 600/347 V AC 50/60 Hz UL 489
Circuit Breaker Application:
HACR rated
Range:
PowerPact
Trip Unit Technology:
thermal-magnetic
Quality Labels:
CE
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
Eu Rohs Directive:
Compliant
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pvc Free:
Yes
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP1610005EN
Suitability For Isolation:
yes IEC 60947-2
Electrical Connection:
I-Line connection, line || lugs, load
Standards:
NEMA AB1 || UL 489 || EN/IEC 60947-2 || NMX J-266 || CSA C22.2 No 5 || EN/IEC 60947-5-1 || GB 14048.2
Depth:
89 mm
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Connection Pitch:
27 mm
[Ics] Rated Service Breaking Capacity:
25 kA 220...240 V AC 50/60 Hz IEC 60947-2
Device Application:
distribution
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Ambient Air Temperature For Storage:
-50-85 °C
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Phase Connection:
B
Control Type:
toggle
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Ip Degree Of Protection:
front cover IP40 IEC 60529
Poles Description:
1P
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Network Frequency:
50/60 Hz
Utilisation Category:
category A
Net Weight:
0.6375 kg
Mounting Height:
38.1 mm
Ik Degree Of Protection:
IK07 IEC 62262
Height:
137 mm
Ambient Air Temperature For Operation:
-25-70 °C
Mounting Mode:
I-Line
