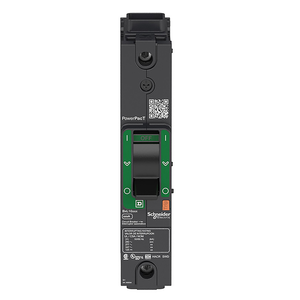

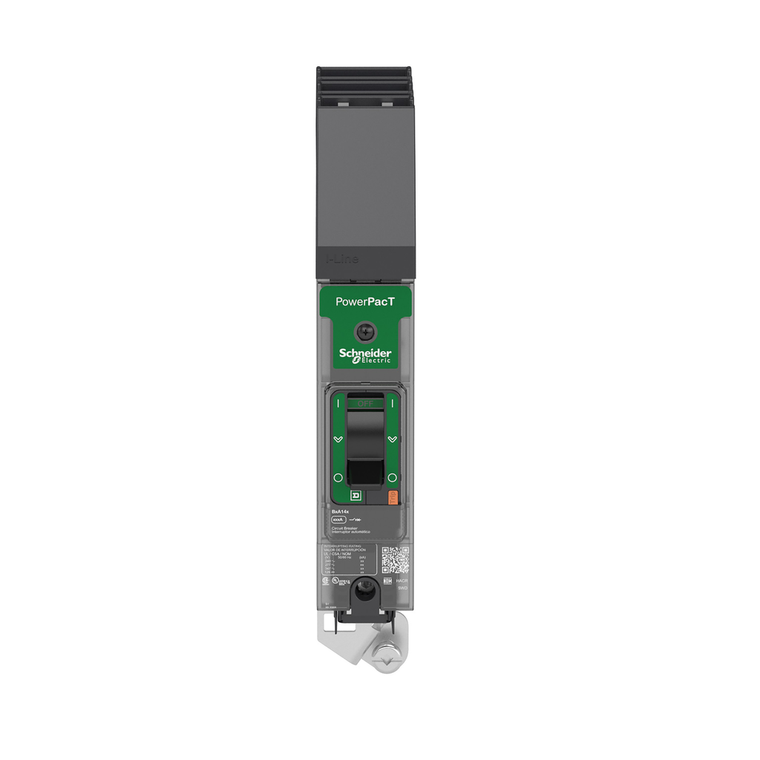

Schneider Electric BDA160151 Molded Case Circuit Breaker 347V 15A

(No reviews yet) Write a Review

Write a Review

Schneider Electric BDA160151 Molded Case Circuit Breaker 347V 15A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BDA160151

UPC:

3606481151001

MPN:

Condition:

New

Product Certifications:

UL || IEC || CCC || EAC || CSA || NOM

Control Type:

toggle

Local Signalling:

presence of auxiliary contacts flag green)

Range:

PowerPact

Device Short Name:

BD 015

[Ue] Rated Operational Voltage:

240 V AC 50/60 Hz UL 489

Line Rated Current:

15-15 A

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mounting Mode:

I-Line

Mechanical Durability:

20000 cycles IEC 947-1 Annex K ed 5.2

Phase Connection:

A

Circularity Profile:

N/A

Poles Description:

1P

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Product Name:

PowerPact B

[Ics] Rated Service Breaking Capacity:

25 kA 220...240 V AC 50/60 Hz IEC 60947-2

Breaking Capacity Code:

D

Network Frequency:

50/60 Hz

Tightening Torque:

3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)

Width:

27 mm

Pvc Free:

Yes

Suitability For Isolation:

yes IEC 60947-2

Ambient Air Temperature For Storage:

-50-85 °C

9 Mm Pitches:

3

Sustainable Offer Status:

Green Premium product

Circuit Breaker Application:

HACR rated

Mounting Height:

38.1 mm

Color:

Gray RAL 7016)

Pollution Degree:

3 IEC 60947-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Awg Gauge:

AWG 14...AWG 2/0 aluminium/copper

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Breaking Capacity:

25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480Y/277 V AC 50/60 Hz UL 489 || 14 kA 125 V DC 50/60 Hz UL 489 || 10 kA 600/347 V AC 50/60 Hz UL 489

Rohs Exemption Information:

Yes

Ambient Air Temperature For Operation:

-25-70 °C

Device Application:

distribution

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Standards:

NMX J-266 || NEMA AB1 || EN/IEC 60947-5-1 || EN/IEC 60947-2 || GB 14048.2 || CSA C22.2 No 5 || UL 489

Halogen Content Performance:

Halogen free product

Depth:

89 mm

Continuous Current Rating:

0.8

Connection Pitch:

27 mm

Ip Degree Of Protection:

front cover IP40 IEC 60529

Quantity Per Set:

set of 1

Ik Degree Of Protection:

IK07 IEC 62262

Net Weight:

0.6375 kg

Trip Unit Technology:

thermal-magnetic

Eu Rohs Directive:

Compliant with Exemptions

Utilisation Category:

category A

Wire Stripping Length:

20 mm

[Ui] Rated Insulation Voltage:

800 V IEC 60947-2

Electrical Connection:

I-Line connection, line || lugs, load

Environmental Disclosure:

ENVPEP1610005EN

Mercury Free:

Yes

Quality Labels:

CE

Product Or Component Type:

circuit breaker

Electrical Durability:

10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Height:

137 mm
