Schneider Electric BDA24020Y2 Molded Case Circuit Brkr 480Y/277V 20A

Schneider Electric BDA24020Y2 Molded Case Circuit Brkr 480Y/277V 20A

Schneider Electric
SKU:
BDA24020Y2
|
UPC:
3606481151773
Availability:
Factory stock
$455.07
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

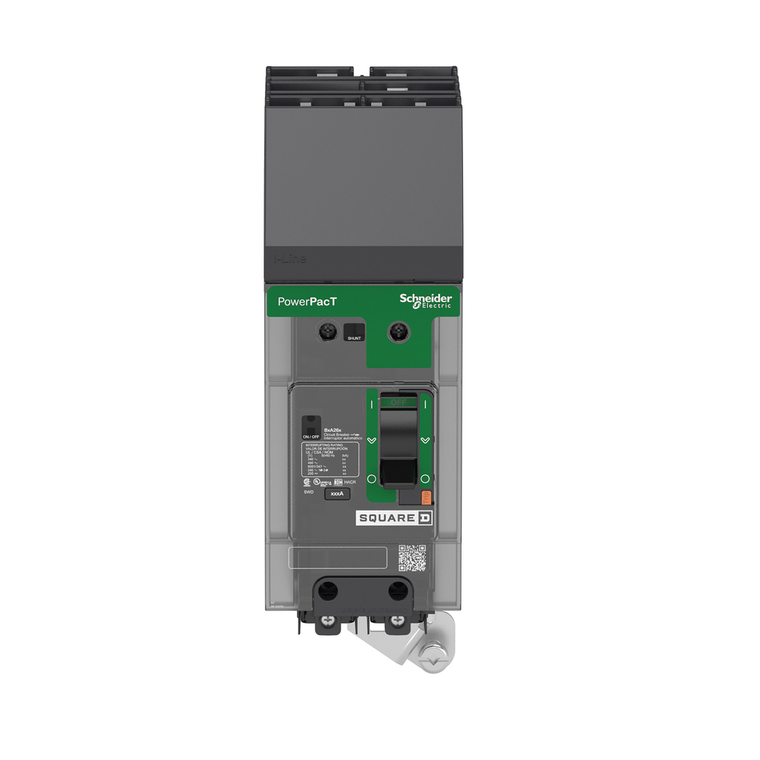

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 20A, 2 pole, circuit breaker has a breaking capacity of 18kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Ambient Air Temperature For Operation:
-25-70 °C
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
9 Mm Pitches:
6
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Depth:
89 mm
Net Weight:
0.952 kg
Device Short Name:
BD 020
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Control Type:
toggle
Product Name:
PowerPact B
Mercury Free:
Yes
Circularity Profile:
N/A
Phase Connection:
AC
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Line Rated Current:
20-20 A
Network Frequency:
50/60 Hz
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Breaking Capacity:
25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 10 kA 600Y/347 V AC 50/60 Hz UL 489
Height:
137 mm
Pvc Free:
Yes
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Quantity Per Set:
set of 1
Range:
PowerPact
Suitability For Isolation:
yes IEC 60947-2
Standards:
UL 489 || GB 14048.2 || EN/IEC 60947-5-1 || CSA C22.2 No 5 || EN/IEC 60947-2 || NEMA AB1 || NMX J-266
Utilisation Category:
category A
Mounting Mode:
I-Line
Device Application:
distribution
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Pollution Degree:
3 IEC 60947-1
Electrical Connection:
I-Line connection, line || lugs, load
Ip Degree Of Protection:
front cover IP40 IEC 60529
Halogen Content Performance:
Halogen free product
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Ambient Air Temperature For Storage:
-50-85 °C
Rohs Exemption Information:
Yes
Wire Stripping Length:
20 mm
Continuous Current Rating:
0.8
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
Environmental Disclosure:
ENVPEP1610005EN
Breaking Capacity Code:
D
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Ik Degree Of Protection:
IK07 IEC 62262
Sustainable Offer Status:
Green Premium product
Poles Description:
2P
Local Signalling:
presence of auxiliary contacts flag green)
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Eu Rohs Directive:
Compliant with Exemptions
[Ics] Rated Service Breaking Capacity:
25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
Connection Pitch:
27 mm
Circuit Breaker Application:
HACR rated
Product Or Component Type:
circuit breaker
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
Quality Labels:
CE
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Color:
Gray RAL 7016)
Trip Unit Technology:
thermal-magnetic
Width:
54 mm
Mounting Height:
76.2 mm
Brochure:
View
Catalog:
View
Datasheet:
View
