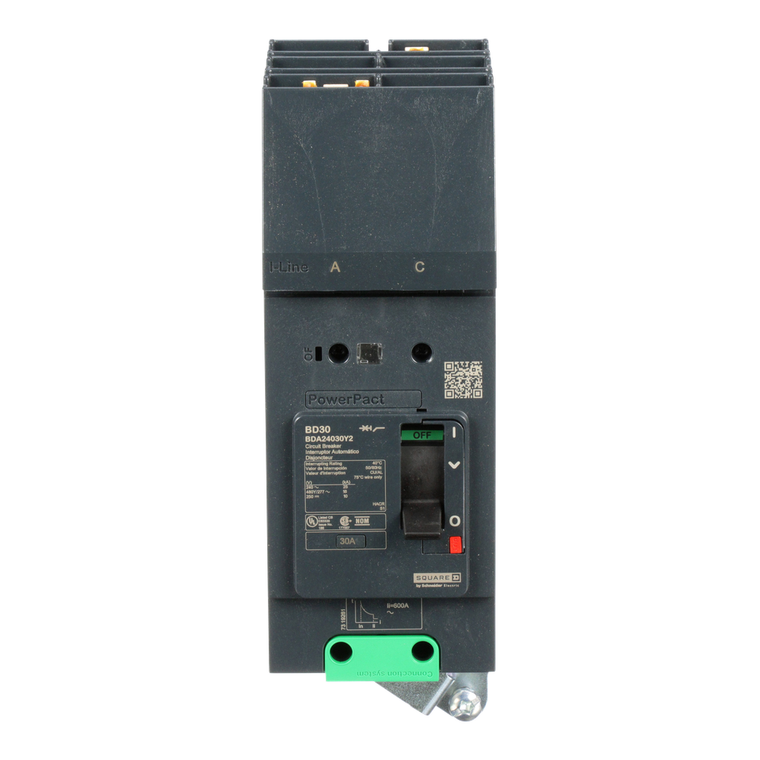

Schneider Electric BDA24030Y2 Molded Case Circuit Brkr 480Y/277V 30A

Schneider Electric BDA24030Y2 Molded Case Circuit Brkr 480Y/277V 30A

Schneider Electric
SKU:
BDA24030Y2
|
UPC:
3606481151803
Availability:
Contact us to confirm availability and lead times.
$714.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 30A, 2 pole, circuit breaker has a breaking capacity of 18kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
Pollution Degree:
3 IEC 60947-1
Width:
54 mm
Circularity Profile:
N/A
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Line Rated Current:
30-30 A
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Height:
137 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Quantity Per Set:
set of 1
Mounting Height:
76.2 mm
Sustainable Offer Status:
Green Premium product
Utilisation Category:
category A
Breaking Capacity Code:
D
Product Or Component Type:
circuit breaker
Mercury Free:
Yes
Standards:
GB 14048.2 || EN/IEC 60947-5-1 || UL 489 || NEMA AB1 || NMX J-266 || EN/IEC 60947-2 || CSA C22.2 No 5
Net Weight:
0.952 kg
Ambient Air Temperature For Storage:
-50-85 °C
Circuit Breaker Application:
HACR rated
Ip Degree Of Protection:
front cover IP40 IEC 60529
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Color:
Gray RAL 7016)
Poles Description:
2P
Device Application:
distribution
Local Signalling:
presence of auxiliary contacts flag green)
Network Frequency:
50/60 Hz
Wire Stripping Length:
20 mm
Pvc Free:
Yes
Eu Rohs Directive:
Compliant with Exemptions
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Phase Connection:
AC
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
Control Type:
toggle
[Ics] Rated Service Breaking Capacity:
25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
9 Mm Pitches:
6
Rohs Exemption Information:
Yes
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Continuous Current Rating:
0.8
Depth:
89 mm
Product Name:
PowerPact B
Connection Pitch:
27 mm
Device Short Name:
BD 030
Trip Unit Technology:
thermal-magnetic
Quality Labels:
CE
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electrical Connection:
I-Line connection, line || lugs, load
Breaking Capacity:
25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 10 kA 600Y/347 V AC 50/60 Hz UL 489
Ik Degree Of Protection:
IK07 IEC 62262
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Ambient Air Temperature For Operation:
-25-70 °C
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Range:
PowerPact
Halogen Content Performance:
Halogen free product
Environmental Disclosure:
ENVPEP1610005EN
Suitability For Isolation:
yes IEC 60947-2
Mounting Mode:
I-Line
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
