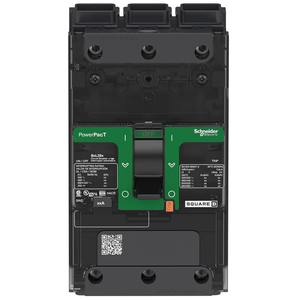

Schneider Electric BDA260601 Molded Case Circuit Brkr 600Y/347V 60A

Schneider Electric BDA260601 Molded Case Circuit Brkr 600Y/347V 60A

Schneider Electric
SKU:
BDA260601
|
UPC:
3606481152206
Availability:
Contact us to confirm availability and lead times.
$809.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 60A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Pvc Free:
Yes
Sustainable Offer Status:
Green Premium product
Device Short Name:
BD 060
Ambient Air Temperature For Operation:
-25-70 °C
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
Quantity Per Set:
set of 1
Net Weight:
0.952 kg
Electrical Connection:
I-Line connection, line || lugs, load
Line Rated Current:
60-60 A
Phase Connection:
AB
Breaking Capacity Code:
D
Range:
PowerPact
Ambient Air Temperature For Storage:
-50-85 °C
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ics] Rated Service Breaking Capacity:
25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
Ik Degree Of Protection:
IK07 IEC 62262
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Color:
Gray RAL 7016)
Product Name:
PowerPact B
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
9 Mm Pitches:
6
Suitability For Isolation:
yes IEC 60947-2
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Circuit Breaker Application:
HACR rated
Quality Labels:
CE
Breaking Capacity:
25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600Y/347 V AC 50/60 Hz UL 489 || 10 kA 250 V DC UL 489
Device Application:
distribution
Network Frequency:
50/60 Hz
Mounting Height:
76.2 mm
Ip Degree Of Protection:
front cover IP40 IEC 60529
Mercury Free:
Yes
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Depth:
89 mm
Rohs Exemption Information:
Yes
Wire Stripping Length:
20 mm
Trip Unit Technology:
thermal-magnetic
Utilisation Category:
category A
Product Or Component Type:
circuit breaker
Poles Description:
2P
Halogen Content Performance:
Halogen free product
Eu Rohs Directive:
Compliant with Exemptions
Circularity Profile:
N/A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
Standards:
NEMA AB1 || NMX J-266 || EN/IEC 60947-2 || EN/IEC 60947-5-1 || UL 489 || GB 14048.2 || CSA C22.2 No 5
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Height:
137 mm
Connection Pitch:
27 mm
Mounting Mode:
I-Line
Width:
54 mm
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Continuous Current Rating:
0.8
Control Type:
toggle
Environmental Disclosure:
ENVPEP1610005EN
Local Signalling:
presence of auxiliary contacts flag green)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Pollution Degree:
3 IEC 60947-1
