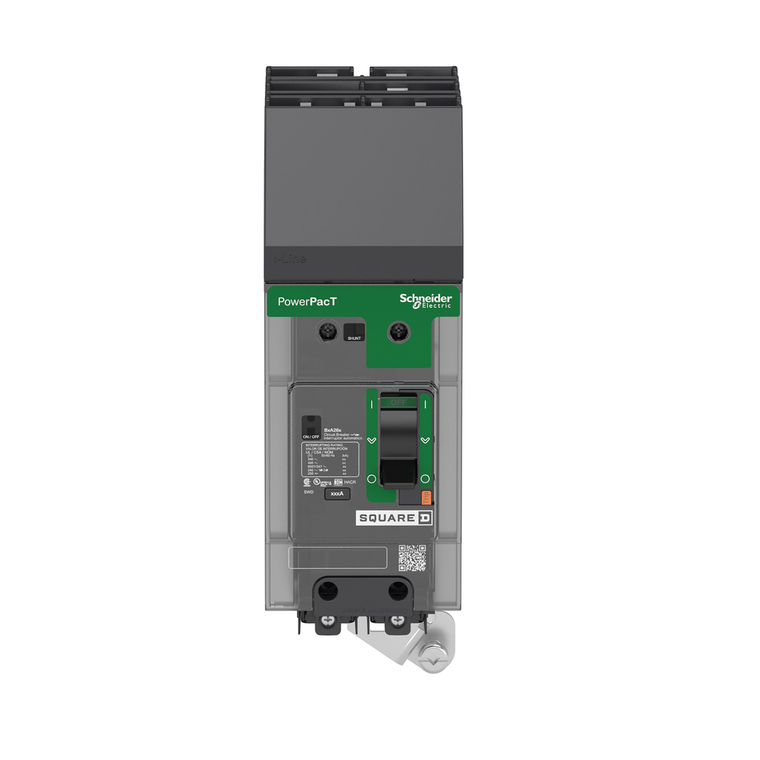

Schneider Electric BDA261001 Molded Case Circuit Brkr 600Y/347V 100A

Schneider Electric BDA261001 Molded Case Circuit Brkr 600Y/347V 100A

Schneider Electric
SKU:
BDA261001
|
UPC:
785901049050
Availability:
Factory stock
$624.60
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 100A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Net Weight:
0.952 kg
Line Rated Current:
100-100 A
Utilisation Category:
category A
Pvc Free:
Yes
Ik Degree Of Protection:
IK07 IEC 62262
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
Suitability For Isolation:
yes IEC 60947-2
Range:
PowerPact
Color:
Gray RAL 7016)
Mounting Height:
76.2 mm
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
9 Mm Pitches:
6
Network Frequency:
50/60 Hz
Ambient Air Temperature For Operation:
-25-70 °C
[Ics] Rated Service Breaking Capacity:
25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Eu Rohs Directive:
Compliant with Exemptions
Height:
137 mm
Product Or Component Type:
circuit breaker
Mounting Mode:
I-Line
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Pollution Degree:
3 IEC 60947-1
Control Type:
toggle
Standards:
NEMA AB1 || EN/IEC 60947-2 || NMX J-266 || EN/IEC 60947-5-1 || UL 489 || CSA C22.2 No 5 || GB 14048.2
Depth:
89 mm
Quantity Per Set:
set of 1
Breaking Capacity:
25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600Y/347 V AC 50/60 Hz UL 489 || 10 kA 250 V DC UL 489
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP1610005EN
Local Signalling:
presence of auxiliary contacts flag green)
Sustainable Offer Status:
Green Premium product
Quality Labels:
CE
Mercury Free:
Yes
Ip Degree Of Protection:
front cover IP40 IEC 60529
Breaking Capacity Code:
D
Product Name:
PowerPact B
Trip Unit Technology:
thermal-magnetic
Ambient Air Temperature For Storage:
-50-85 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circularity Profile:
N/A
Connection Pitch:
27 mm
Continuous Current Rating:
0.8
Electrical Connection:
I-Line connection, line || lugs, load
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Width:
54 mm
Device Short Name:
BD 100
Halogen Content Performance:
Halogen free product
Poles Description:
2P
Circuit Breaker Application:
HACR rated
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Wire Stripping Length:
20 mm
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Phase Connection:
AB
Device Application:
distribution
Brochure:
View
Catalog:
View
Datasheet:
View
