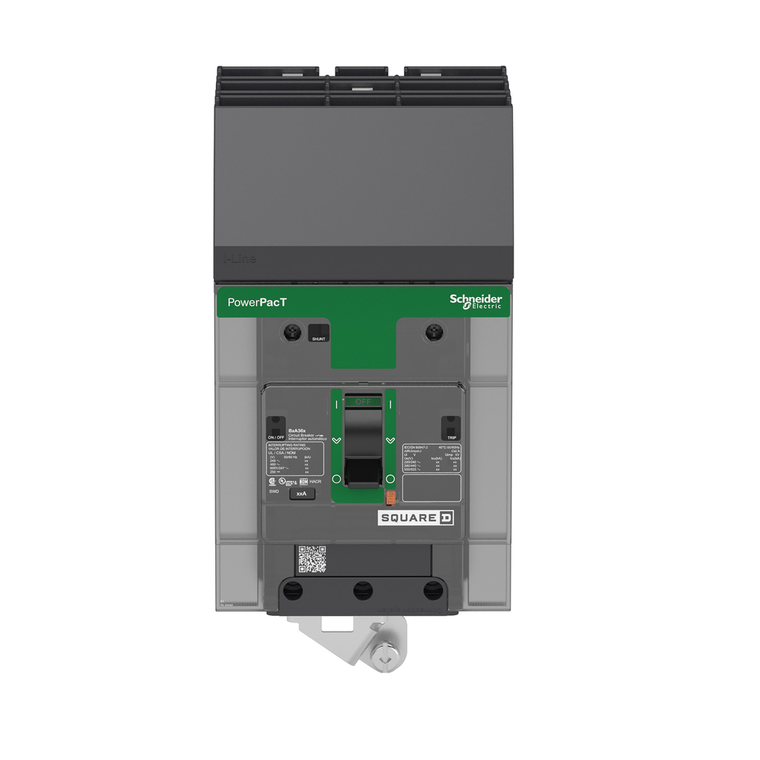

Schneider Electric BDA36025 Molded Case Circuit Brkr 600Y/347V 25A

Schneider Electric BDA36025 Molded Case Circuit Brkr 600Y/347V 25A

Schneider Electric
SKU:
BDA36025
|
UPC:
3606481152541
Availability:
Contact us to confirm availability and lead times.
$1,012.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 25A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Circuit Breaker Application:
HACR rated
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Network Frequency:
50/60 Hz
Device Short Name:
BD 025
Connection Pitch:
27 mm
Ik Degree Of Protection:
IK07 IEC 62262
Ambient Air Temperature For Operation:
-25-70 °C
Eu Rohs Directive:
Compliant with Exemptions
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Breaking Capacity Code:
D
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Width:
81 mm
Control Type:
toggle
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
Quantity Per Set:
set of 1
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Sustainable Offer Status:
Green Premium product
Product Name:
PowerPact B
Rohs Exemption Information:
Yes
Mounting Height:
114 mm
Suitability For Isolation:
yes IEC 60947-2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Poles Description:
3P
Range:
PowerPact
Product Or Component Type:
circuit breaker
Mounting Mode:
I-Line
[Ics] Rated Service Breaking Capacity:
25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
Utilisation Category:
category A
Ambient Air Temperature For Storage:
-50-85 °C
Standards:
NEMA AB1 || EN/IEC 60947-5-1 || GB 14048.2 || CSA C22.2 No 5 || EN/IEC 60947-2 || NMX J-266 || UL 489
Device Application:
distribution
Net Weight:
1.315 kg
Line Rated Current:
25-25 A
Pvc Free:
Yes
9 Mm Pitches:
9
Electrical Connection:
I-Line connection, line || lugs, load
Pollution Degree:
3 IEC 60947-1
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Color:
Gray RAL 7016)
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Trip Unit Technology:
thermal-magnetic
Halogen Content Performance:
Halogen free product
Quality Labels:
CE
Circularity Profile:
N/A
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Phase Connection:
ABC
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
Height:
137 mm
Ip Degree Of Protection:
front cover IP40 IEC 60529
Wire Stripping Length:
20 mm
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Local Signalling:
presence of auxiliary contacts flag green)
Breaking Capacity:
25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600Y/347 V AC 50/60 Hz UL 489 || 10 kA 250 V DC UL 489
Depth:
89 mm
Mercury Free:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP1610005EN
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Continuous Current Rating:
0.8
Brochure:
View
