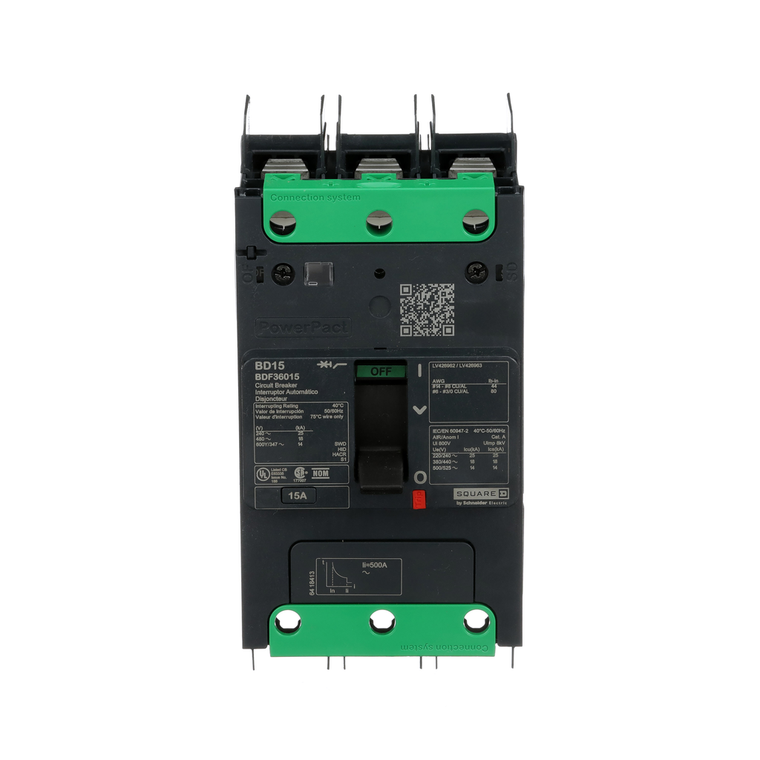

Schneider Electric BDF36015 Molded Case Circuit Brkr 600Y/347V 15A

Schneider Electric BDF36015 Molded Case Circuit Brkr 600Y/347V 15A

Schneider Electric
SKU:
BDF36015
|
UPC:
3606481149206
$979.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit has terminal nuts on both termination ends. This PowerPacT B, 15A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. Optional terminations.
Additional Information
Suitability For Isolation:
yes IEC 60947-2
Utilisation Category:
category A
Mechanical Durability:
15000 cycles IEC 947-1 Annex K ed 5.2
Poles Description:
3P
Height:
137 mm
Wire Stripping Length:
20 mm
Device Short Name:
BD 015
Standards:
EN/IEC 60947-5-1 || NMX J-266 || GB 14048.2 || CSA C22.2 No 5 || UL 489 || EN/IEC 60947-2 || NEMA AB1
Device Application:
distribution
Ip Degree Of Protection:
front cover IP40 IEC 60529
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Line Rated Current:
15-15 A
Ambient Air Temperature For Storage:
-50-85 °C
Awg Gauge:
AWG 14...AWG 8 aluminium/copper || AWG 6...AWG 3/0 aluminium/copper
Product Name:
PowerPact B
Trip Unit Technology:
thermal-magneticTM-D,
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
Ik Degree Of Protection:
IK07 IEC 62262
Environmental Disclosure:
ENVPEP1610005EN
Connection Pitch:
27 mm
Breaking Capacity:
25 kA 208Y/120 V AC 50/60 Hz UL 489 || 18 kA 240 V AC 50/60 Hz UL 489 || Icu 25 kA 480/277 V AC 50/60 Hz UL 489 || Icu 14 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489 || 14 kA 250 V DC UL 489 || 25 kA || Icu 18 kA
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Mercury Free:
Yes
Control Type:
toggle
[Ics] Rated Service Breaking Capacity:
25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
Circuit Breaker Application:
HACR rated
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Trip Unit Name:
TM-D
9 Mm Pitches:
9
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Net Weight:
0.924 kg
Width:
81 mm
Electrical Connection:
terminal nut, ON and OFF end
Ambient Air Temperature For Operation:
-25-70 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Quantity Per Set:
set of 1
Depth:
80 mm
Quality Labels:
CE
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Local Signalling:
presence of auxiliary contacts flag green)
Mounting Mode:
clip-on 35 mm symmetrical DIN rail) || by screws plate)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Color:
Gray RAL 7016)
Tightening Torque:
5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Protected Poles Description:
3t
Pvc Free:
Yes
Product Or Component Type:
circuit breaker
Network Frequency:
50/60 Hz
Pollution Degree:
3 IEC 60947-1
Halogen Content Performance:
Halogen free product
Range:
PowerPact
Operating Altitude:
6561.68 ft (2000 m) without derating || 5000 m with derating
Continuous Current Rating:
0.8
Eu Rohs Directive:
Compliant with Exemptions
Circularity Profile:
N/A
Breaking Capacity Code:
D
