Schneider Electric BDF36040 Molded Case Circuit Brkr 600Y/347V 40A
Schneider Electric
$979.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

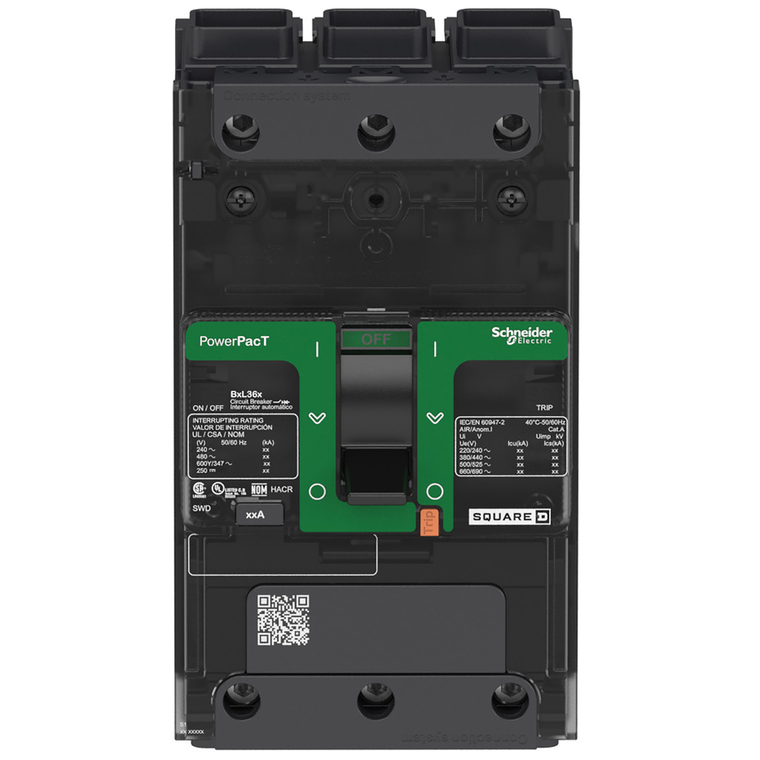

Schneider Electric BDF36040 Molded Case Circuit Brkr 600Y/347V 40A
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit has terminal nuts on both termination ends. This PowerPacT B, 40A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. Optional terminations.
- Awg Gauge:
- AWG 14...AWG 8 aluminium/copper || AWG 6...AWG 3/0 aluminium/copper
- Color:
- Gray RAL 7016)
- Ambient Air Temperature For Storage:
- -50-85 °C
- Poles Description:
- 3P
- Breaking Capacity:
- 25 kA 208Y/120 V AC 50/60 Hz UL 489 || 18 kA 240 V AC 50/60 Hz UL 489 || Icu 25 kA 480/277 V AC 50/60 Hz UL 489 || Icu 14 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489 || 14 kA 250 V DC UL 489 || 25 kA || Icu 18 kA
- Connection Pitch:
- 27 mm
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Wire Stripping Length:
- 20 mm
- Standards:
- NMX J-266 || GB 14048.2 || EN/IEC 60947-2 || UL 489 || EN/IEC 60947-5-1 || CSA C22.2 No 5 || NEMA AB1
- Ik Degree Of Protection:
- IK07 IEC 62262
- Ambient Air Temperature For Operation:
- -25-70 °C
- Mounting Mode:
- clip-on 35 mm symmetrical DIN rail) || by screws plate)
- Protected Poles Description:
- 3t
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.924 kg
- Tightening Torque:
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- Mercury Free:
- Yes
- Range:
- PowerPact
- Trip Unit Technology:
- thermal-magneticTM-D,
- [Ue] Rated Operational Voltage:
- 525 V AC 50/60 Hz UL 489
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
- Suitability For Isolation:
- yes IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Name:
- PowerPact B
- Circularity Profile:
- N/A
- Electrical Connection:
- terminal nut, ON and OFF end
- Mechanical Durability:
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Control Type:
- toggle
- 9 Mm Pitches:
- 9
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Continuous Current Rating:
- 0.8
- Device Short Name:
- BD 040
- Sustainable Offer Status:
- Green Premium product
- Line Rated Current:
- 40-40 A
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
- Circuit Breaker Application:
- HACR rated
- Environmental Disclosure:
- ENVPEP1610005EN
- Utilisation Category:
- category A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Pvc Free:
- Yes
- Product Or Component Type:
- circuit breaker
- Quantity Per Set:
- set of 1
- Height:
- 137 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Halogen Content Performance:
- Halogen free product
- Breaking Capacity Code:
- D
- Device Application:
- distribution
- Width:
- 81 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Depth:
- 80 mm
- Quality Labels:
- CE
- Local Signalling:
- presence of auxiliary contacts flag green)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Network Frequency:
- 50/60 Hz
- Operating Altitude:
- 6561.68 ft (2000 m) without derating || 5000 m with derating
- Eu Rohs Directive:
- Compliant with Exemptions
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Trip Unit Name:
- TM-D
