Schneider Electric BDL26025 Molded Case Circuit Brkr 600Y/347V 25A
Schneider Electric
$783.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

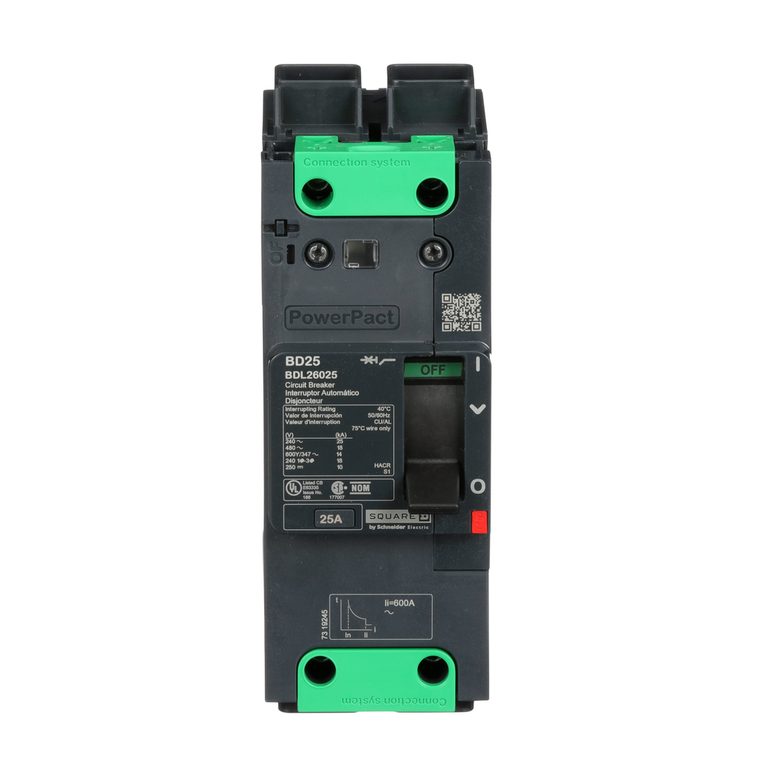

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 25A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Poles Description:
- 2P
- Sustainable Offer Status:
- Green Premium product
- Standards:
- EN/IEC 60947-2 || NMX J-266 || EN/IEC 60947-5-1 || GB 14048.2 || UL 489 || CSA C22.2 No 5 || NEMA AB1
- Net Weight:
- 0.769 kg
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circuit Breaker Application:
- HACR rated
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
- Awg Gauge:
- AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- Width:
- 54 mm
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Utilisation Category:
- category A
- Halogen Content Performance:
- Halogen free product
- Suitability For Isolation:
- yes IEC 60947-2
- Mounting Mode:
- clip-on 35 x 15 mm symmetrical DIN rail) || by screws plate)
- 9 Mm Pitches:
- 6
- Ambient Air Temperature For Storage:
- -50-85 °C
- Color:
- Gray RAL 7016)
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Continuous Current Rating:
- 0.8
- Eu Rohs Directive:
- Compliant with Exemptions
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Breaking Capacity Code:
- D
- Depth:
- 80 mm
- [Ue] Rated Operational Voltage:
- 525 V AC 50/60 Hz UL 489
- Line Rated Current:
- 25-25 A
- Device Short Name:
- BD 025
- Breaking Capacity:
- 25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600Y/347 V AC 50/60 Hz UL 489 || 10 kA 250 V DC UL 489
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -25-70 °C
- Tightening Torque:
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- Pvc Free:
- Yes
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Mercury Free:
- Yes
- Pollution Degree:
- 3 IEC 60947-1
- Ik Degree Of Protection:
- IK07 IEC 62262
- Product Name:
- PowerPact B
- Quantity Per Set:
- set of 1
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Connection Pitch:
- 27 mm
- Product Or Component Type:
- circuit breaker
- Local Signalling:
- presence of auxiliary contacts flag green)
- Height:
- 137 mm
- Trip Unit Technology:
- thermal-magnetic
- Electrical Connection:
- Everlink lug, line || Everlink lug, load
- Network Frequency:
- 50/60 Hz
- Wire Stripping Length:
- 20 mm
- Rohs Exemption Information:
- Yes
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Circularity Profile:
- N/A
- Range:
- PowerPact
- Quality Labels:
- CE
- Environmental Disclosure:
- ENVPEP1610005EN
- Mechanical Durability:
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Control Type:
- toggle
- Device Application:
- distribution
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
