Schneider Electric BDL36070 Molded Case Circuit Brkr 600Y/347V 70A
Schneider Electric
$1,195.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

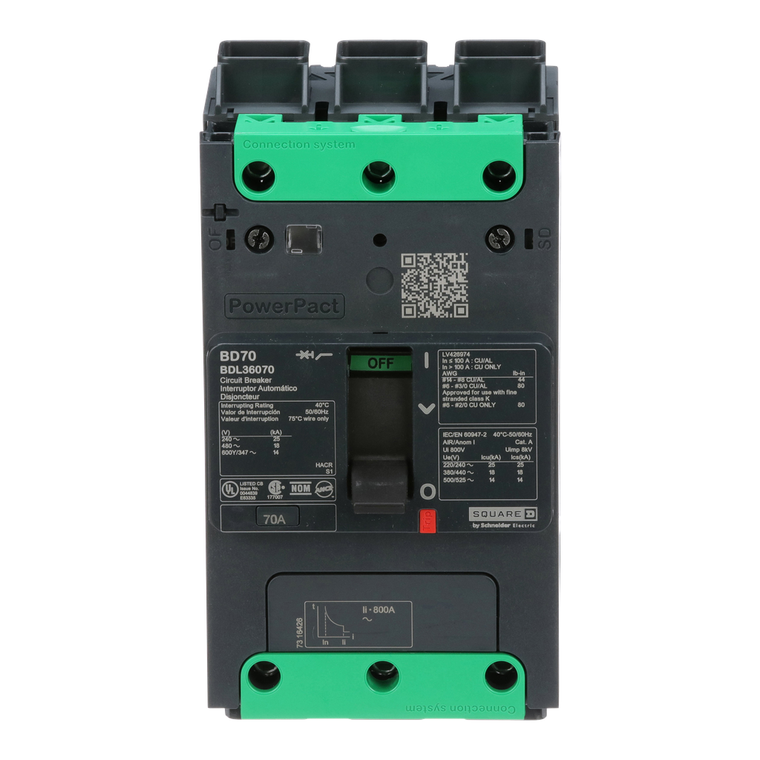

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 70A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Ik Degree Of Protection:
- IK07 IEC 62262
- Mercury Free:
- Yes
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Pollution Degree:
- 3 IEC 60947-1
- Ambient Air Temperature For Storage:
- -50-85 °C
- Network Frequency:
- 50/60 Hz
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Suitability For Isolation:
- yes IEC 60947-2
- Halogen Content Performance:
- Halogen free product
- Quantity Per Set:
- set of 1
- Ambient Air Temperature For Operation:
- -25-70 °C
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Color:
- Gray RAL 7016)
- Continuous Current Rating:
- 0.8
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- circuit breaker
- Trip Unit Technology:
- thermal-magnetic
- Electrical Connection:
- Everlink lug, line || Everlink lug, load
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Pvc Free:
- Yes
- Quality Labels:
- CE
- Breaking Capacity Code:
- D
- Wire Stripping Length:
- 20 mm
- Range:
- PowerPact
- Eu Rohs Directive:
- Compliant with Exemptions
- Poles Description:
- 3P
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Breaking Capacity:
- 25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600Y/347 V AC 50/60 Hz UL 489 || 10 kA 250 V DC UL 489
- Control Type:
- toggle
- Connection Pitch:
- 27 mm
- Mechanical Durability:
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Net Weight:
- 1.074 kg
- Device Short Name:
- BD 070
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Product Name:
- PowerPact B
- Environmental Disclosure:
- ENVPEP1610005EN
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Circularity Profile:
- N/A
- Local Signalling:
- presence of auxiliary contacts flag green)
- Depth:
- 80 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height:
- 137 mm
- Standards:
- NMX J-266 || EN/IEC 60947-5-1 || UL 489 || CSA C22.2 No 5 || GB 14048.2 || EN/IEC 60947-2 || NEMA AB1
- Sustainable Offer Status:
- Green Premium product
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Width:
- 81 mm
- Awg Gauge:
- AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- Utilisation Category:
- category A
- Circuit Breaker Application:
- HACR rated
- 9 Mm Pitches:
- 9
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
- Line Rated Current:
- 70-70 A
- [Ue] Rated Operational Voltage:
- 525 V AC 50/60 Hz UL 489
- Device Application:
- distribution
- Tightening Torque:
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- Mounting Mode:
- clip-on 35 x 15 mm symmetrical DIN rail) || by screws plate)
