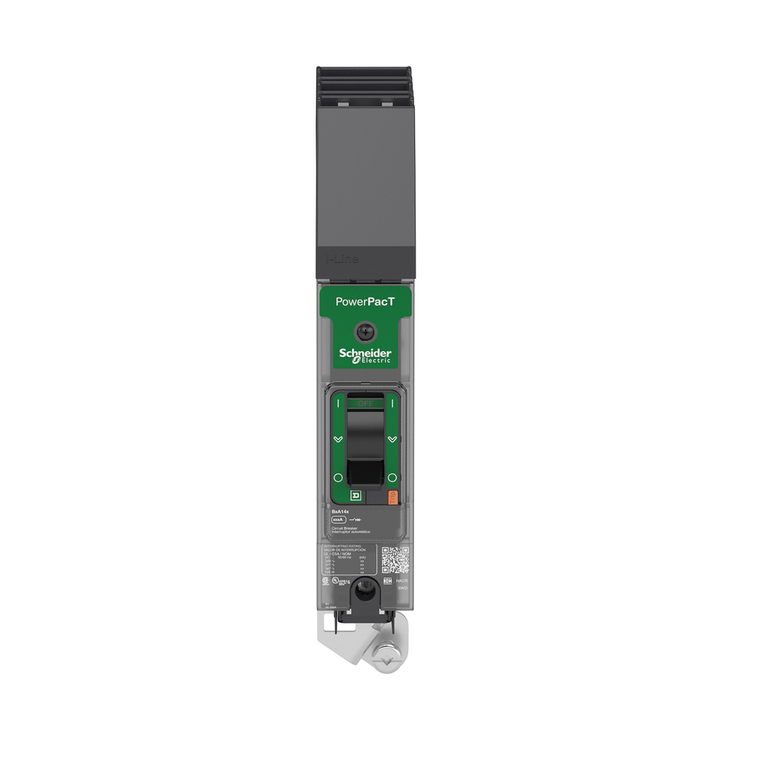

Schneider Electric BGA140201 Molded Case Circuit Breaker 277V 20A

Schneider Electric BGA140201 Molded Case Circuit Breaker 277V 20A

Schneider Electric
SKU:
BGA140201
|
UPC:
785901065890
Availability:
Factory stock
$268.96
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 35kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 20A, 1 pole, circuit breaker has a breaking capacity of 35kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with an A phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Pollution Degree:
3 IEC 60947-1
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Quality Labels:
CE
Quantity Per Set:
set of 1
9 Mm Pitches:
3
Standards:
NEMA AB1 || NMX J-266 || EN/IEC 60947-2 || UL 489 || GB 14048.2 || CSA C22.2 No 5 || EN/IEC 60947-5-1
Circuit Breaker Application:
HACR rated
Breaking Capacity:
65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480Y/277 V AC 50/60 Hz UL 489 || 20 kA 600Y/347 V AC 50/60 Hz UL 489 || 20 kA 125 V DC UL 489
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Wire Stripping Length:
20 mm
Phase Connection:
A
Line Rated Current:
20-20 A
Local Signalling:
presence of auxiliary contacts flag green)
Width:
27 mm
Poles Description:
1P
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz UL 489
[Ics] Rated Service Breaking Capacity:
65 kA 220...240 V AC 50/60 Hz IEC 60947-2
Electrical Connection:
I-Line connection, line || lugs, load
Utilisation Category:
category A
Ik Degree Of Protection:
IK07 IEC 62262
Control Type:
toggle
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Network Frequency:
50/60 Hz
Color:
Gray RAL 7016)
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Ambient Air Temperature For Operation:
-25-70 °C
Product Name:
PowerPact B
Height:
137 mm
Device Application:
distribution
Sustainable Offer Status:
Green Premium product
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
Environmental Disclosure:
ENVPEP1610005EN
Circularity Profile:
N/A
Pvc Free:
Yes
Ambient Air Temperature For Storage:
-50-85 °C
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Halogen Content Performance:
Halogen free product
Product Or Component Type:
circuit breaker
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Device Short Name:
BG 020
Depth:
89 mm
Suitability For Isolation:
yes IEC 60947-2
Connection Pitch:
27 mm
Rohs Exemption Information:
Yes
Trip Unit Technology:
thermal-magnetic
Mounting Height:
38.1 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Mode:
I-Line
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mercury Free:
Yes
Breaking Capacity Code:
G
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Net Weight:
0.6375 kg
Continuous Current Rating:
0.8
Range:
PowerPact
Ip Degree Of Protection:
front cover IP40 IEC 60529
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
