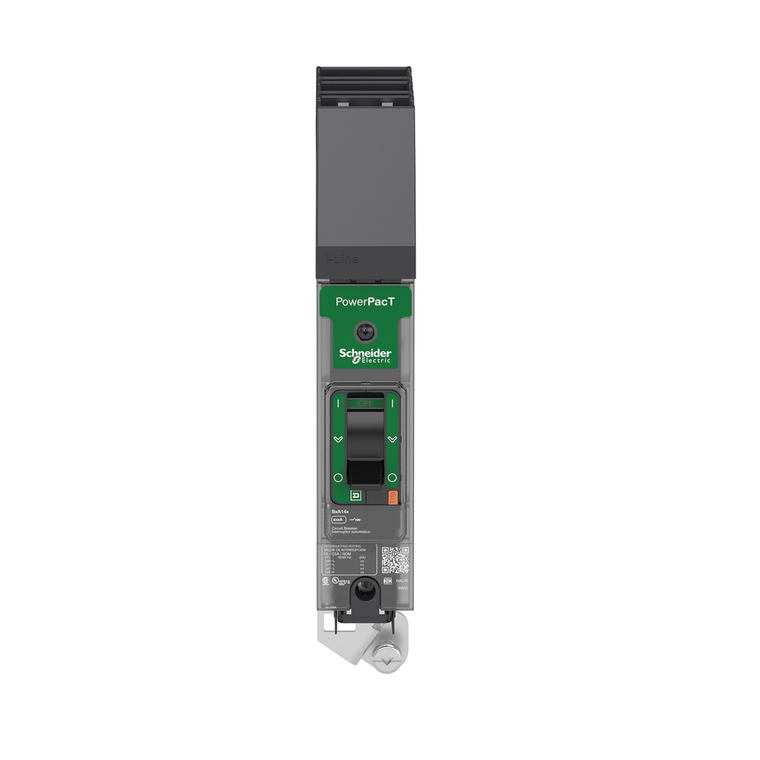

Schneider Electric BGA140601 Molded Case Circuit Breaker 277V 60A

Schneider Electric BGA140601 Molded Case Circuit Breaker 277V 60A

Schneider Electric
SKU:
BGA140601
|
UPC:
785901066484
Availability:
Factory stock
$384.28
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 35kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 60A, 1 pole, circuit breaker has a breaking capacity of 35kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with an A phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
circuit breaker
Ambient Air Temperature For Operation:
-25-70 °C
Circuit Breaker Application:
HACR rated
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Quality Labels:
CE
Phase Connection:
A
Breaking Capacity Code:
G
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Width:
27 mm
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Device Short Name:
BG 060
Utilisation Category:
category A
Halogen Content Performance:
Halogen free product
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Color:
Gray RAL 7016)
Standards:
EN/IEC 60947-5-1 || UL 489 || GB 14048.2 || NMX J-266 || CSA C22.2 No 5 || NEMA AB1 || EN/IEC 60947-2
Local Signalling:
presence of auxiliary contacts flag green)
Control Type:
toggle
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 240 V In
Pvc Free:
Yes
Wire Stripping Length:
20 mm
Trip Unit Technology:
thermal-magnetic
Ik Degree Of Protection:
IK07 IEC 62262
Continuous Current Rating:
0.8
Suitability For Isolation:
yes IEC 60947-2
Pollution Degree:
3 IEC 60947-1
Eu Rohs Directive:
Compliant
Connection Pitch:
27 mm
Electrical Connection:
I-Line connection, line || lugs, load
Quantity Per Set:
set of 1
Mounting Height:
38.1 mm
Network Frequency:
50/60 Hz
Device Application:
distribution
Breaking Capacity:
65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480Y/277 V AC 50/60 Hz UL 489 || 20 kA 600Y/347 V AC 50/60 Hz UL 489 || 20 kA 125 V DC UL 489
Range:
PowerPact
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Name:
PowerPact B
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Mercury Free:
Yes
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz UL 489
Net Weight:
0.6375 kg
Environmental Disclosure:
ENVPEP1610005EN
Height:
137 mm
Poles Description:
1P
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Line Rated Current:
60-60 A
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Ambient Air Temperature For Storage:
-50-85 °C
Mounting Mode:
I-Line
Ip Degree Of Protection:
front cover IP40 IEC 60529
9 Mm Pitches:
3
Depth:
89 mm
Rohs Exemption Information:
Yes
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
[Ics] Rated Service Breaking Capacity:
65 kA 220...240 V AC 50/60 Hz IEC 60947-2
