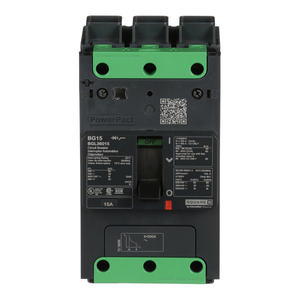

Schneider Electric BGA260151 Molded Case Circuit Brkr 600Y/347V 15A

Schneider Electric BGA260151 Molded Case Circuit Brkr 600Y/347V 15A

Schneider Electric
SKU:
BGA260151
|
UPC:
3606481153401
Availability:
Factory stock
$767.37
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 15A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Ambient Air Temperature For Storage:
-50-85 °C
Eu Rohs Directive:
Compliant with Exemptions
Suitability For Isolation:
yes IEC 60947-2
Rohs Exemption Information:
Yes
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Trip Unit Technology:
thermal-magnetic
Environmental Disclosure:
ENVPEP1610005EN
Pollution Degree:
3 IEC 60947-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
9 Mm Pitches:
6
[Ics] Rated Service Breaking Capacity:
65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
Breaking Capacity Code:
G
Ip Degree Of Protection:
front cover IP40 IEC 60529
Network Frequency:
50/60 Hz
Halogen Content Performance:
Halogen free product
Depth:
89 mm
Ambient Air Temperature For Operation:
-25-70 °C
Mercury Free:
Yes
Net Weight:
0.952 kg
Utilisation Category:
category A
Line Rated Current:
15-15 A
Device Application:
distribution
Circuit Breaker Application:
HACR rated
Connection Pitch:
27 mm
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Phase Connection:
AB
Mounting Height:
76.2 mm
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Continuous Current Rating:
0.8
Width:
54 mm
Quantity Per Set:
set of 1
Quality Labels:
CE
Ik Degree Of Protection:
IK07 IEC 62262
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
Standards:
EN/IEC 60947-5-1 || GB 14048.2 || UL 489 || CSA C22.2 No 5 || NEMA AB1 || NMX J-266 || EN/IEC 60947-2
Color:
Gray RAL 7016)
Height:
137 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Short Name:
BG 015
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Control Type:
toggle
Breaking Capacity:
65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 250 V DC UL 489 || 20 kA 600Y/347 V AC 50/60 Hz UL 489
Mounting Mode:
I-Line
Pvc Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Local Signalling:
presence of auxiliary contacts flag green)
Electrical Connection:
I-Line connection, line || lugs, load
Product Or Component Type:
circuit breaker
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Wire Stripping Length:
20 mm
Product Name:
PowerPact B
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Sustainable Offer Status:
Green Premium product
Poles Description:
2P
Circularity Profile:
N/A
Range:
PowerPact
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
