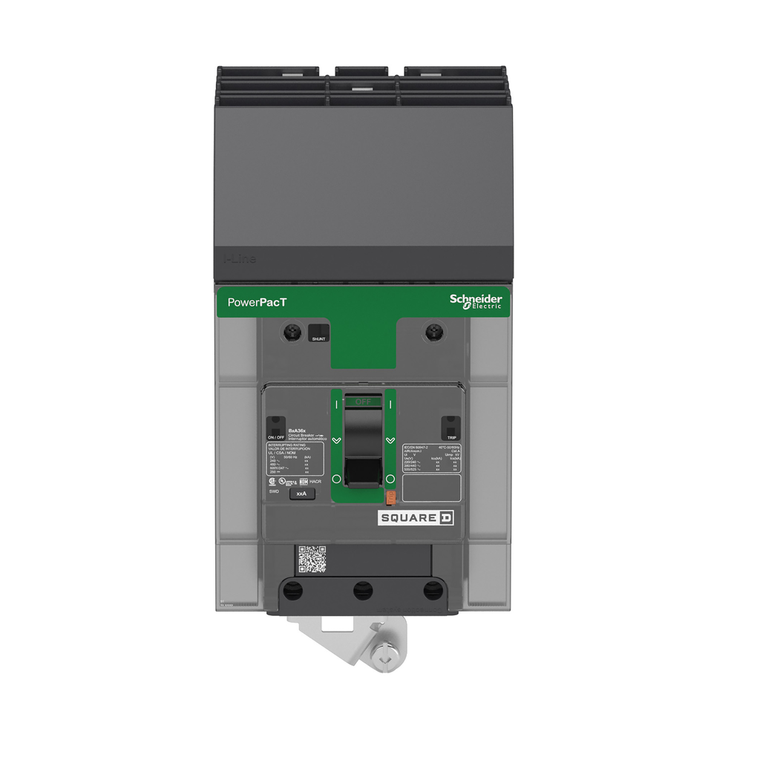

Schneider Electric BGA34070Y Molded Case Circuit Brkr 480Y/277V 70A

Schneider Electric BGA34070Y Molded Case Circuit Brkr 480Y/277V 70A

Schneider Electric
SKU:
BGA34070Y
|
UPC:
3606489779283
Availability:
Factory stock
$899.93
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 35kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 70A, 3 pole, circuit breaker has a breaking capacity of 35kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Width:
81 mm
Range:
PowerPact
Mercury Free:
Yes
Product Name:
PowerPact B
Breaking Capacity:
65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489
Network Frequency:
50/60 Hz
Circularity Profile:
N/A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circuit Breaker Application:
HACR rated
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Line Rated Current:
70-70 A
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
Pvc Free:
Yes
Ambient Air Temperature For Storage:
-50-85 °C
Continuous Current Rating:
0.8
Product Or Component Type:
circuit breaker
Quality Labels:
CE
Poles Description:
3P
Trip Unit Technology:
thermal-magnetic
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Standards:
CSA C22.2 No 5 || EN/IEC 60947-2 || GB 14048.2 || UL 489 || NMX J-266 || NEMA AB1 || EN/IEC 60947-5-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Color:
Gray RAL 7016)
Breaking Capacity Code:
G
Eu Rohs Directive:
Compliant with Exemptions
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
9 Mm Pitches:
9
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
Electrical Connection:
I-Line connection, line || lugs, load
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Height:
137 mm
Rohs Exemption Information:
Yes
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Suitability For Isolation:
yes IEC 60947-2
Mounting Height:
114 mm
Phase Connection:
ABC
Ip Degree Of Protection:
front cover IP40 IEC 60529
Mounting Mode:
I-Line
Pollution Degree:
3 IEC 60947-1
Device Short Name:
BG 070
Net Weight:
1.315 kg
Connection Pitch:
27 mm
Environmental Disclosure:
ENVPEP1610005EN
Sustainable Offer Status:
Green Premium product
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Ambient Air Temperature For Operation:
-25-70 °C
Halogen Content Performance:
Halogen free product
[Ics] Rated Service Breaking Capacity:
65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
Local Signalling:
presence of auxiliary contacts flag green)
Device Application:
distribution
Depth:
89 mm
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Quantity Per Set:
set of 1
Utilisation Category:
category A
Wire Stripping Length:
20 mm
Ik Degree Of Protection:
IK07 IEC 62262
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Control Type:
toggle
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
