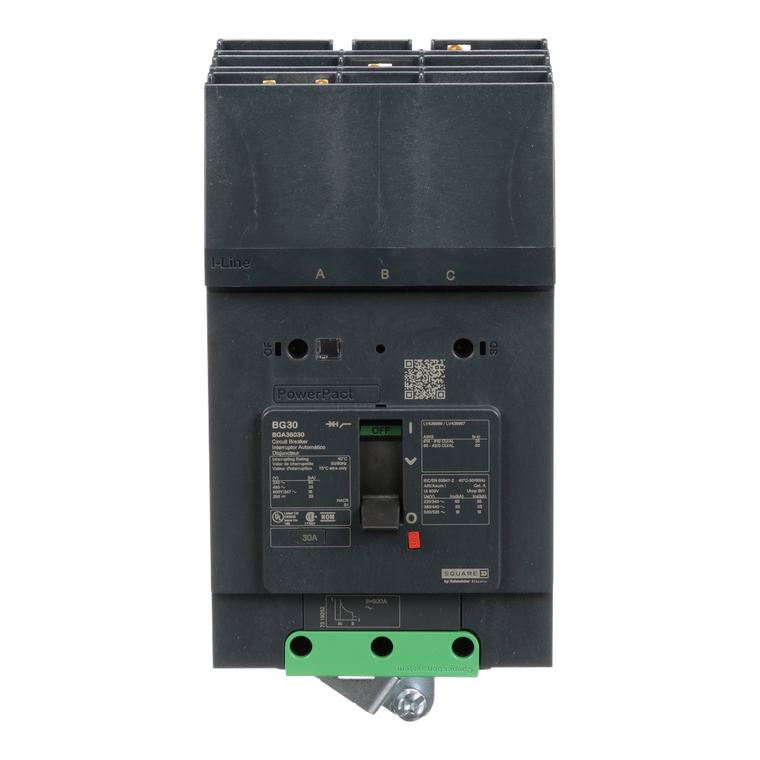

Schneider Electric BGA36030 Molded Case Circuit Brkr 600Y/347V 30A

Schneider Electric BGA36030 Molded Case Circuit Brkr 600Y/347V 30A

Schneider Electric
SKU:
BGA36030
|
UPC:
3606481153715
Availability:
Contact us to confirm availability and lead times.
$1,418.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 30A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Halogen Content Performance:
Halogen free product
Depth:
89 mm
Product Or Component Type:
circuit breaker
Pvc Free:
Yes
9 Mm Pitches:
9
Breaking Capacity Code:
G
Circularity Profile:
N/A
Wire Stripping Length:
20 mm
Eu Rohs Directive:
Compliant with Exemptions
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Phase Connection:
ABC
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
Environmental Disclosure:
ENVPEP1610005EN
Device Short Name:
BG 030
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Net Weight:
1.315 kg
Line Rated Current:
30-30 A
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Circuit Breaker Application:
HACR rated
Rohs Exemption Information:
Yes
Control Type:
toggle
Width:
81 mm
Device Application:
distribution
Sustainable Offer Status:
Green Premium product
Color:
Gray RAL 7016)
[Ics] Rated Service Breaking Capacity:
65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
Suitability For Isolation:
yes IEC 60947-2
Ip Degree Of Protection:
front cover IP40 IEC 60529
Breaking Capacity:
65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 250 V DC UL 489 || 20 kA 600Y/347 V AC 50/60 Hz UL 489
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Height:
137 mm
Product Name:
PowerPact B
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Continuous Current Rating:
0.8
Electrical Connection:
I-Line connection, line || lugs, load
Network Frequency:
50/60 Hz
Poles Description:
3P
Trip Unit Technology:
thermal-magnetic
Quality Labels:
CE
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Utilisation Category:
category A
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Connection Pitch:
27 mm
Ik Degree Of Protection:
IK07 IEC 62262
Range:
PowerPact
Mounting Mode:
I-Line
Ambient Air Temperature For Operation:
-25-70 °C
Mounting Height:
114 mm
Quantity Per Set:
set of 1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pollution Degree:
3 IEC 60947-1
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
Local Signalling:
presence of auxiliary contacts flag green)
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Standards:
NMX J-266 || EN/IEC 60947-5-1 || GB 14048.2 || UL 489 || CSA C22.2 No 5 || NEMA AB1 || EN/IEC 60947-2
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Ambient Air Temperature For Storage:
-50-85 °C
