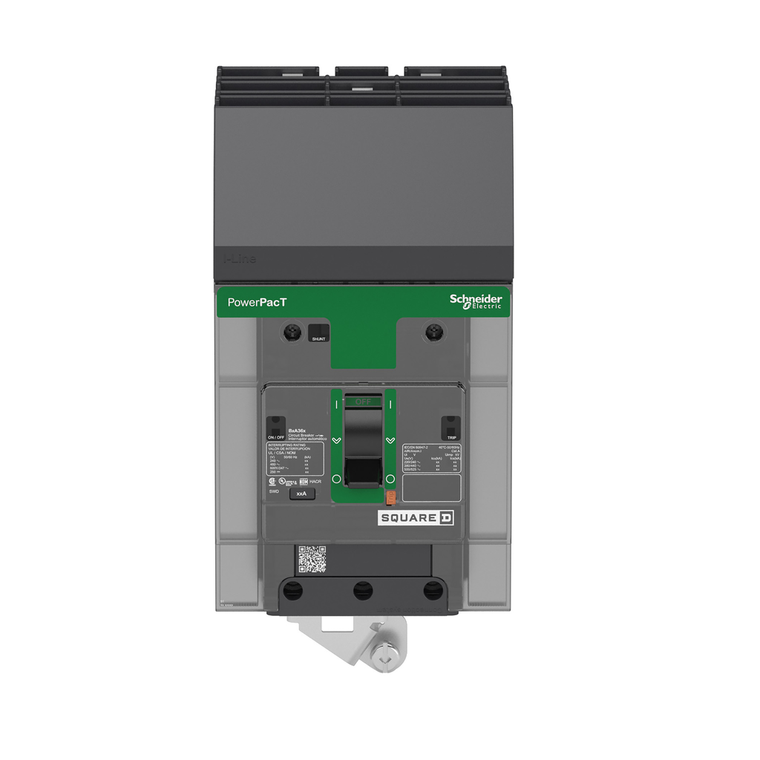

Schneider Electric BGA36045 Molded Case Circuit Brkr 600Y/347V 45A

Schneider Electric BGA36045 Molded Case Circuit Brkr 600Y/347V 45A

Schneider Electric
SKU:
BGA36045
|
UPC:
3606481153777
Availability:
Contact us to confirm availability and lead times.
$1,418.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 45A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Product Name:
PowerPact B
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
Device Short Name:
BG 045
Network Frequency:
50/60 Hz
Circuit Breaker Application:
HACR rated
Sustainable Offer Status:
Green Premium product
Control Type:
toggle
Electrical Connection:
I-Line connection, line || lugs, load
Quantity Per Set:
set of 1
Ambient Air Temperature For Operation:
-25-70 °C
Range:
PowerPact
Suitability For Isolation:
yes IEC 60947-2
Utilisation Category:
category A
Connection Pitch:
27 mm
Circularity Profile:
N/A
Wire Stripping Length:
20 mm
Poles Description:
3P
Color:
Gray RAL 7016)
Mounting Mode:
I-Line
Product Or Component Type:
circuit breaker
Mercury Free:
Yes
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Halogen Content Performance:
Halogen free product
Depth:
89 mm
Device Application:
distribution
Eu Rohs Directive:
Compliant with Exemptions
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Quality Labels:
CE
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Standards:
NEMA AB1 || NMX J-266 || EN/IEC 60947-5-1 || UL 489 || EN/IEC 60947-2 || CSA C22.2 No 5 || GB 14048.2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Breaking Capacity Code:
G
Height:
137 mm
Line Rated Current:
45-45 A
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
9 Mm Pitches:
9
Width:
81 mm
Ambient Air Temperature For Storage:
-50-85 °C
Continuous Current Rating:
0.8
Mounting Height:
114 mm
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Phase Connection:
ABC
Local Signalling:
presence of auxiliary contacts flag green)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Breaking Capacity:
65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 250 V DC UL 489 || 20 kA 600Y/347 V AC 50/60 Hz UL 489
Pollution Degree:
3 IEC 60947-1
Ip Degree Of Protection:
front cover IP40 IEC 60529
Trip Unit Technology:
thermal-magnetic
[Ics] Rated Service Breaking Capacity:
65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
Net Weight:
1.315 kg
Environmental Disclosure:
ENVPEP1610005EN
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Ik Degree Of Protection:
IK07 IEC 62262
Rohs Exemption Information:
Yes
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Pvc Free:
Yes
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
