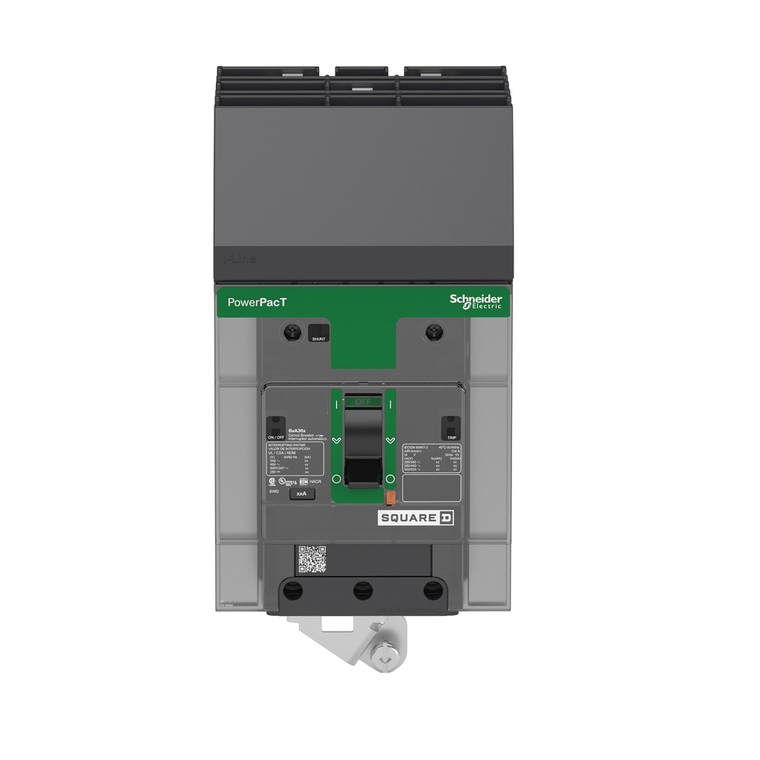

Schneider Electric BGA36100 Molded Case Circuit Brkr 600Y/347V 100A

Schneider Electric BGA36100 Molded Case Circuit Brkr 600Y/347V 100A

Schneider Electric
SKU:
BGA36100
|
UPC:
3606481153937
Availability:
Contact us to confirm availability and lead times.
$1,595.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 100A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Pollution Degree:
3 IEC 60947-1
Utilisation Category:
category A
Suitability For Isolation:
yes IEC 60947-2
Ambient Air Temperature For Operation:
-25-70 °C
Mounting Height:
114 mm
Local Signalling:
presence of auxiliary contacts flag green)
Poles Description:
3P
Ip Degree Of Protection:
front cover IP40 IEC 60529
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Mounting Mode:
I-Line
[Ics] Rated Service Breaking Capacity:
65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
Circuit Breaker Application:
HACR rated
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Connection Pitch:
27 mm
Eu Rohs Directive:
Compliant with Exemptions
Continuous Current Rating:
0.8
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
Quantity Per Set:
set of 1
Color:
Gray RAL 7016)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Breaking Capacity:
65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 250 V DC UL 489 || 20 kA 600Y/347 V AC 50/60 Hz UL 489
Height:
137 mm
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Line Rated Current:
100-100 A
Device Short Name:
BG 100
Standards:
EN/IEC 60947-5-1 || GB 14048.2 || CSA C22.2 No 5 || UL 489 || NEMA AB1 || EN/IEC 60947-2 || NMX J-266
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP1610005EN
9 Mm Pitches:
9
Trip Unit Technology:
thermal-magnetic
Ik Degree Of Protection:
IK07 IEC 62262
Network Frequency:
50/60 Hz
Ambient Air Temperature For Storage:
-50-85 °C
Depth:
89 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Name:
PowerPact B
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Phase Connection:
ABC
Rohs Exemption Information:
Yes
Circularity Profile:
N/A
Product Or Component Type:
circuit breaker
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pvc Free:
Yes
Net Weight:
1.315 kg
Wire Stripping Length:
20 mm
Breaking Capacity Code:
G
Control Type:
toggle
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
Electrical Connection:
I-Line connection, line || lugs, load
Range:
PowerPact
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Width:
81 mm
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Halogen Content Performance:
Halogen free product
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Quality Labels:
CE
Sustainable Offer Status:
Green Premium product
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Device Application:
distribution
Brochure:
View
Catalog:
View
Datasheet:
View
