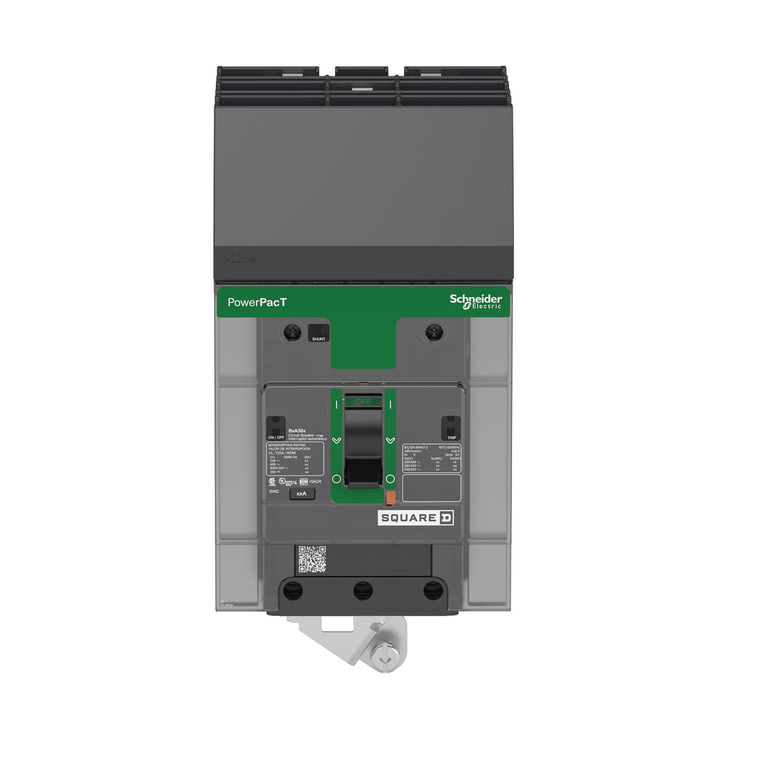

Schneider Electric BGA36110 Molded Case Circuit Brkr 600Y/347V 110A

Schneider Electric BGA36110 Molded Case Circuit Brkr 600Y/347V 110A

Schneider Electric
SKU:
BGA36110
|
UPC:
785901056249
Availability:
Factory stock
$1,244.40
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 110A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Net Weight:
1.315 kg
Depth:
89 mm
Ambient Air Temperature For Operation:
-25-70 °C
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Quality Labels:
CE
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
Mercury Free:
Yes
Width:
81 mm
Sustainable Offer Status:
Green Premium product
9 Mm Pitches:
9
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Mounting Mode:
I-Line
Pvc Free:
Yes
Pollution Degree:
3 IEC 60947-1
Trip Unit Technology:
thermal-magnetic
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Environmental Disclosure:
ENVPEP1610005EN
Local Signalling:
presence of auxiliary contacts flag green)
Height:
137 mm
Standards:
EN/IEC 60947-2 || GB 14048.2 || NEMA AB1 || NMX J-266 || EN/IEC 60947-5-1 || CSA C22.2 No 5 || UL 489
Product Name:
PowerPact B
Device Application:
distribution
Eu Rohs Directive:
Compliant with Exemptions
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Circularity Profile:
N/A
Electrical Connection:
I-Line connection, line || lugs, load
Mounting Height:
114 mm
Circuit Breaker Application:
HACR rated
Utilisation Category:
category A
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Wire Stripping Length:
20 mm
Poles Description:
3P
Halogen Content Performance:
Halogen free product
Connection Pitch:
27 mm
Breaking Capacity Code:
G
Line Rated Current:
110-110 A
Product Or Component Type:
circuit breaker
Breaking Capacity:
65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 250 V DC UL 489 || 20 kA 600Y/347 V AC 50/60 Hz UL 489
Phase Connection:
ABC
[Ics] Rated Service Breaking Capacity:
65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
Device Short Name:
BG 110
Continuous Current Rating:
0.8
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Ambient Air Temperature For Storage:
-50-85 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Range:
PowerPact
Quantity Per Set:
set of 1
Suitability For Isolation:
yes IEC 60947-2
Network Frequency:
50/60 Hz
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
Control Type:
toggle
Ip Degree Of Protection:
front cover IP40 IEC 60529
Color:
Gray RAL 7016)
Ik Degree Of Protection:
IK07 IEC 62262
