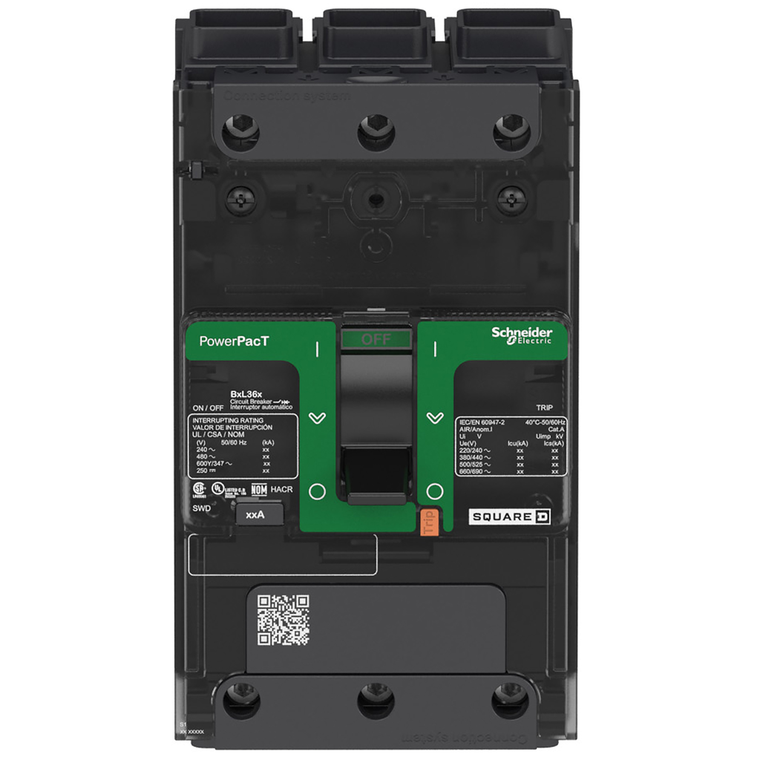

Schneider Electric BGF36035 Molded Case Circuit Brkr 600Y/347V 35A

Schneider Electric BGF36035 Molded Case Circuit Brkr 600Y/347V 35A

Schneider Electric
SKU:
BGF36035
|
UPC:
3606481149541
Availability:
Contact us to confirm availability and lead times.
$3,024.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit has terminal nuts on both termination ends. This PowerPacT B, 35A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. EverLink lugs are also available with unique integrated control wire terminals.
Additional Information
Color:
Gray RAL 7016)
9 Mm Pitches:
9
Line Rated Current:
35-35 A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Device Short Name:
BG 035
Range:
PowerPact
Circularity Profile:
N/A
Sustainable Offer Status:
Green Premium product
[Ics] Rated Service Breaking Capacity:
65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
Quantity Per Set:
set of 1
Ambient Air Temperature For Operation:
-25-70 °C
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Rohs Exemption Information:
Yes
Suitability For Isolation:
yes IEC 60947-2
Tightening Torque:
5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
Protected Poles Description:
3t
Width:
81 mm
Environmental Disclosure:
ENVPEP1610005EN
Ik Degree Of Protection:
IK07 IEC 62262
Pollution Degree:
3 IEC 60947-1
Trip Unit Technology:
thermal-magneticTM-D,
Breaking Capacity:
65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489
Local Signalling:
presence of auxiliary contacts flag green)
Ip Degree Of Protection:
front cover IP40 IEC 60529
Utilisation Category:
category A
Circuit Breaker Application:
HACR rated
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Network Frequency:
50/60 Hz
Pvc Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Control Type:
toggle
Product Name:
PowerPact B
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mercury Free:
Yes
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Standards:
NEMA AB1 || GB 14048.2 || UL 489 || EN/IEC 60947-2 || NMX J-266 || EN/IEC 60947-5-1 || CSA C22.2 No 5
Poles Description:
3P
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Electrical Connection:
terminal nut, ON and OFF end
Eu Rohs Directive:
Compliant with Exemptions
Ambient Air Temperature For Storage:
-50-85 °C
Connection Pitch:
27 mm
Trip Unit Name:
TM-D
Mounting Mode:
clip-on 35 mm symmetrical DIN rail) || by screws plate)
Wire Stripping Length:
20 mm
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Halogen Content Performance:
Halogen free product
Awg Gauge:
AWG 14...AWG 8 aluminium/copper || AWG 6...AWG 3/0 aluminium/copper
Operating Altitude:
6561.68 ft (2000 m) without derating || 5000 m with derating
Product Or Component Type:
circuit breaker
Depth:
80 mm
Height:
137 mm
Mechanical Durability:
15000 cycles IEC 947-1 Annex K ed 5.2
Continuous Current Rating:
0.8
Device Application:
distribution
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
Net Weight:
0.924 kg
Quality Labels:
CE
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Breaking Capacity Code:
G
