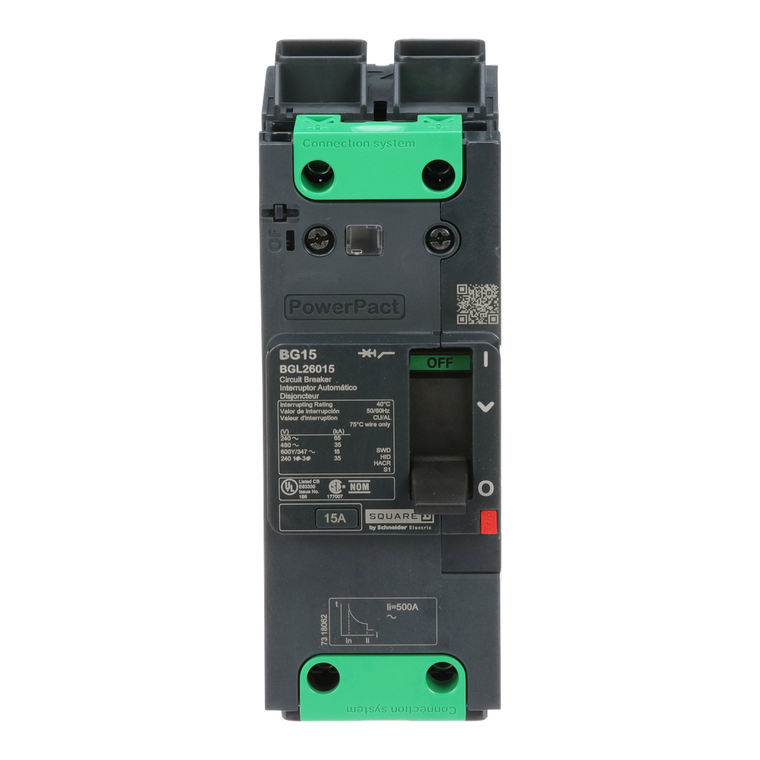

Schneider Electric BGL26015 Molded Case Circuit Brkr 600Y/347V 15A

Schneider Electric BGL26015 Molded Case Circuit Brkr 600Y/347V 15A

Schneider Electric
SKU:
BGL26015
|
UPC:
3606481154019
Availability:
Contact us to confirm availability and lead times.
$1,142.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 15A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
Tightening Torque:
5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
Breaking Capacity Code:
G
Halogen Content Performance:
Halogen free product
Trip Unit Technology:
thermal-magnetic
Local Signalling:
presence of auxiliary contacts flag green)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Short Name:
BG 015
Poles Description:
2P
Color:
Gray RAL 7016)
Electrical Connection:
Everlink lug, line || Everlink lug, load
Device Application:
distribution
Pollution Degree:
3 IEC 60947-1
Standards:
NEMA AB1 || UL 489 || GB 14048.2 || NMX J-266 || EN/IEC 60947-2 || EN/IEC 60947-5-1 || CSA C22.2 No 5
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
Pvc Free:
Yes
Connection Pitch:
27 mm
Ambient Air Temperature For Operation:
-25-70 °C
Ik Degree Of Protection:
IK07 IEC 62262
Sustainable Offer Status:
Green Premium product
Circuit Breaker Application:
HACR rated
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Quantity Per Set:
set of 1
9 Mm Pitches:
6
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Wire Stripping Length:
20 mm
Quality Labels:
CE
Ambient Air Temperature For Storage:
-50-85 °C
Line Rated Current:
15-15 A
Suitability For Isolation:
yes IEC 60947-2
Environmental Disclosure:
ENVPEP1610005EN
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
Depth:
80 mm
Range:
PowerPact
Product Name:
PowerPact B
Circularity Profile:
N/A
Control Type:
toggle
Ip Degree Of Protection:
front cover IP40 IEC 60529
Breaking Capacity:
65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 250 V DC UL 489 || 20 kA 600Y/347 V AC 50/60 Hz UL 489
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
[Ics] Rated Service Breaking Capacity:
65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Or Component Type:
circuit breaker
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Continuous Current Rating:
0.8
Width:
54 mm
Network Frequency:
50/60 Hz
Awg Gauge:
AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Utilisation Category:
category A
Mounting Mode:
clip-on 35 x 15 mm symmetrical DIN rail) || by screws plate)
Net Weight:
0.769 kg
Rohs Exemption Information:
Yes
Height:
137 mm
