Schneider Electric BGL36035LU Molded Case Circuit Brkr 600Y/347V 35A
Schneider Electric
$2,182.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

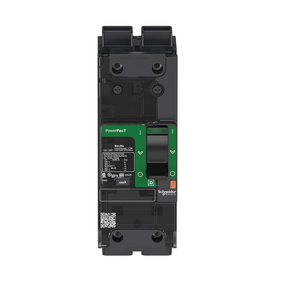

Schneider Electric BGL36035LU Molded Case Circuit Brkr 600Y/347V 35A
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 35A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a control wire terminal on the line end EverLink lug. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. EverLink lugs are also available with unique integrated control wire terminals.
- Trip Unit Name:
- TM-D
- Circuit Breaker Application:
- HACR rated
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Range:
- PowerPact
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Net Weight:
- 1.074 kg
- Wire Stripping Length:
- 20 mm
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Mechanical Durability:
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Network Frequency:
- 50/60 Hz
- Quantity Per Set:
- set of 1
- Line Rated Current:
- 35-35 A
- Width:
- 81 mm
- Color:
- Gray RAL 7016)
- Eu Rohs Directive:
- Compliant
- Trip Unit Technology:
- thermal-magneticTM-D,
- Standards:
- NMX J-266 || EN/IEC 60947-5-1 || EN/IEC 60947-2 || CSA C22.2 No 5 || GB 14048.2 || NEMA AB1 || UL 489
- Device Application:
- distribution
- Environmental Disclosure:
- ENVPEP1610005EN
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Ik Degree Of Protection:
- IK07 IEC 62262
- Tightening Torque:
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- Halogen Content Performance:
- Halogen free product
- Mercury Free:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pollution Degree:
- 3 IEC 60947-1
- Ambient Air Temperature For Operation:
- -25-70 °C
- 9 Mm Pitches:
- 9
- Continuous Current Rating:
- 0.8
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
- Awg Gauge:
- AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- Control Type:
- toggle
- Quality Labels:
- CE
- Utilisation Category:
- category A
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Connection Pitch:
- 27 mm
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- circuit breaker
- Poles Description:
- 3P
- Suitability For Isolation:
- yes IEC 60947-2
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Local Signalling:
- presence of auxiliary contacts flag green)
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
- Mounting Mode:
- clip-on 35 mm symmetrical DIN rail) || by screws plate)
- Breaking Capacity:
- 65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489
- Rohs Exemption Information:
- Yes
- Protected Poles Description:
- 3t
- Electrical Connection:
- Everlink lug, line || Everlink lug, load
- [Ue] Rated Operational Voltage:
- 525 V AC 50/60 Hz UL 489
- Pvc Free:
- Yes
- Product Name:
- PowerPact B
- Height:
- 137 mm
- Operating Altitude:
- 6561.68 ft (2000 m) without derating || 5000 m with derating
- Ambient Air Temperature For Storage:
- -50-85 °C
- Breaking Capacity Code:
- G
- Depth:
- 80 mm
- Device Short Name:
- BG 035
