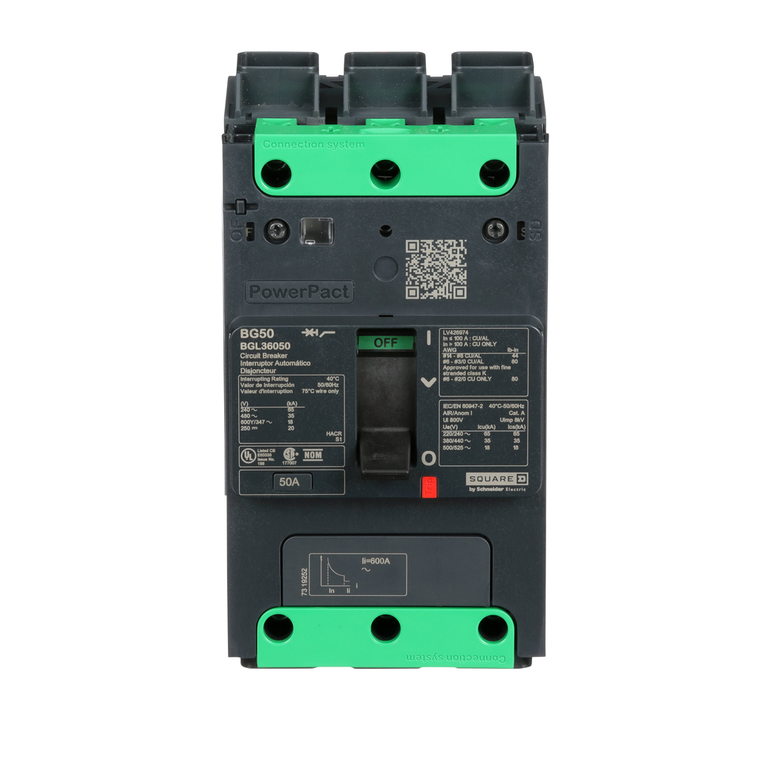

Schneider Electric BGL36050 Molded Case Circuit Brkr 600Y/347V 50A

Schneider Electric BGL36050 Molded Case Circuit Brkr 600Y/347V 50A

Schneider Electric
SKU:
BGL36050
|
UPC:
3606481154101
Availability:
Factory stock
$930.46
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 50A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Tightening Torque:
5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
Height:
137 mm
Ambient Air Temperature For Operation:
-25-70 °C
Rohs Exemption Information:
Yes
Mounting Mode:
clip-on 35 x 15 mm symmetrical DIN rail) || by screws plate)
Depth:
80 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive:
Compliant with Exemptions
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Ambient Air Temperature For Storage:
-50-85 °C
Wire Stripping Length:
20 mm
Circularity Profile:
N/A
Ik Degree Of Protection:
IK07 IEC 62262
Environmental Disclosure:
ENVPEP1610005EN
Awg Gauge:
AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Line Rated Current:
50-50 A
Utilisation Category:
category A
Range:
PowerPact
Color:
Gray RAL 7016)
Pvc Free:
Yes
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Electrical Connection:
Everlink lug, line || Everlink lug, load
Device Short Name:
BG 050
Poles Description:
3P
Quantity Per Set:
set of 1
Breaking Capacity Code:
G
Device Application:
distribution
Connection Pitch:
27 mm
Control Type:
toggle
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
Ip Degree Of Protection:
front cover IP40 IEC 60529
Local Signalling:
presence of auxiliary contacts flag green)
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Breaking Capacity:
65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 250 V DC UL 489 || 20 kA 600Y/347 V AC 50/60 Hz UL 489
9 Mm Pitches:
9
Product Or Component Type:
circuit breaker
Standards:
EN/IEC 60947-2 || GB 14048.2 || NEMA AB1 || UL 489 || CSA C22.2 No 5 || EN/IEC 60947-5-1 || NMX J-266
Quality Labels:
CE
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Continuous Current Rating:
0.8
Product Name:
PowerPact B
Halogen Content Performance:
Halogen free product
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circuit Breaker Application:
HACR rated
Pollution Degree:
3 IEC 60947-1
Width:
81 mm
Net Weight:
1.074 kg
Suitability For Isolation:
yes IEC 60947-2
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
[Ics] Rated Service Breaking Capacity:
65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
Network Frequency:
50/60 Hz
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Trip Unit Technology:
thermal-magnetic
