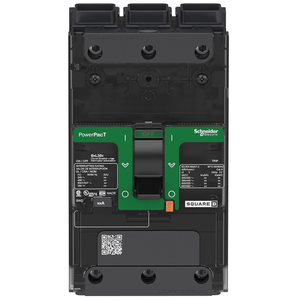

Schneider Electric BJA260301 Molded Case Circuit Brkr 600Y/347V 30A

Schneider Electric BJA260301 Molded Case Circuit Brkr 600Y/347V 30A

Schneider Electric
SKU:
BJA260301
|
UPC:
785901058236
Availability:
Contact us to confirm availability and lead times.
$1,541.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 30A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Standards:
EN/IEC 60947-5-1 || EN/IEC 60947-2 || CSA C22.2 No 5 || NEMA AB1 || UL 489 || GB 14048.2 || NMX J-266
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Pvc Free:
Yes
Product Or Component Type:
circuit breaker
Device Short Name:
BJ 030
Network Frequency:
50/60 Hz
Ip Degree Of Protection:
front cover IP40 IEC 60529
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz UL 489
Circularity Profile:
N/A
Local Signalling:
presence of auxiliary contacts flag green)
Mercury Free:
Yes
Connection Pitch:
27 mm
Product Name:
PowerPact B
Pollution Degree:
3 IEC 60947-1
Range:
PowerPact
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Breaking Capacity Code:
J
Wire Stripping Length:
20 mm
Depth:
89 mm
Environmental Disclosure:
ENVPEP1610005EN
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Net Weight:
0.952 kg
[Ics] Rated Service Breaking Capacity:
100 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 10 kA 690 V AC 50/60 Hz IEC 60947-2 || 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 65 kA 440 V AC 50/60 Hz IEC 60947-2
Quantity Per Set:
set of 1
Ambient Air Temperature For Operation:
-25-70 °C
Height:
137 mm
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Poles Description:
2P
Device Application:
distribution
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Line Rated Current:
30-30 A
Mounting Height:
76.2 mm
Electrical Connection:
I-Line connection, line || lugs, load
Ambient Air Temperature For Storage:
-50-85 °C
Circuit Breaker Application:
HACR rated
Continuous Current Rating:
0.8
Mounting Mode:
I-Line
Quality Labels:
CE
Halogen Content Performance:
Halogen free product
Width:
54 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Eu Rohs Directive:
Compliant with Exemptions
Suitability For Isolation:
yes IEC 60947-2
Trip Unit Technology:
thermal-magnetic
Control Type:
toggle
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
Phase Connection:
AB
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Utilisation Category:
category A
Ik Degree Of Protection:
IK07 IEC 62262
9 Mm Pitches:
6
Color:
Gray RAL 7016)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Breaking Capacity:
100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480/277 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 250 V DC UL 489
