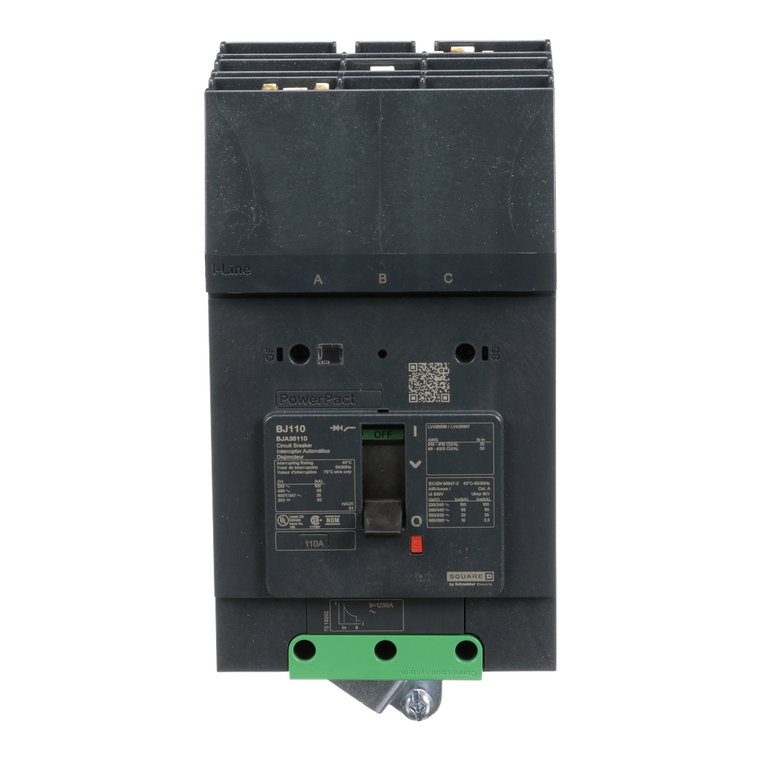

Schneider Electric BJA36110 Molded Case Circuit Brkr 600Y/347V 110A

Schneider Electric BJA36110 Molded Case Circuit Brkr 600Y/347V 110A

Schneider Electric
SKU:
BJA36110
|
UPC:
3606481185945
Availability:
Factory stock
$3,358.19
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 110A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Phase Connection:
ABC
Pvc Free:
Yes
9 Mm Pitches:
9
Height:
137 mm
Product Name:
PowerPact B
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Mercury Free:
Yes
Product Or Component Type:
circuit breaker
Width:
81 mm
Utilisation Category:
category A
Electrical Connection:
I-Line connection, line || lugs, load
Ik Degree Of Protection:
IK07 IEC 62262
Device Short Name:
BJ 110
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Halogen Content Performance:
Halogen free product
Pollution Degree:
3 IEC 60947-1
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Range:
PowerPact
Quality Labels:
CE
Ambient Air Temperature For Operation:
-25-70 °C
Breaking Capacity:
100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480/277 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 250 V DC UL 489
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz UL 489
Rohs Exemption Information:
Yes
Wire Stripping Length:
20 mm
Mounting Height:
114 mm
Network Frequency:
50/60 Hz
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Suitability For Isolation:
yes IEC 60947-2
Connection Pitch:
27 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Standards:
UL 489 || GB 14048.2 || NMX J-266 || EN/IEC 60947-5-1 || EN/IEC 60947-2 || NEMA AB1 || CSA C22.2 No 5
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Circularity Profile:
N/A
Sustainable Offer Status:
Green Premium product
Eu Rohs Directive:
Compliant with Exemptions
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
Trip Unit Technology:
thermal-magnetic
[Ics] Rated Service Breaking Capacity:
100 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 10 kA 690 V AC 50/60 Hz IEC 60947-2 || 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 65 kA 440 V AC 50/60 Hz IEC 60947-2
Poles Description:
3P
Local Signalling:
presence of auxiliary contacts flag green)
Control Type:
toggle
Depth:
89 mm
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Device Application:
distribution
Net Weight:
1.315 kg
Continuous Current Rating:
0.8
Ip Degree Of Protection:
front cover IP40 IEC 60529
Circuit Breaker Application:
HACR rated
Ambient Air Temperature For Storage:
-50-85 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP1610005EN
Quantity Per Set:
set of 1
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Mounting Mode:
I-Line
Color:
Gray RAL 7016)
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Line Rated Current:
110-110 A
Breaking Capacity Code:
J
