Product out of China RoHS scope. Substance declaration for your information.
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz UL 489
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Breaking Capacity Code:
J
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Utilisation Category:
category A
[Ics] Rated Service Breaking Capacity:
100 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 2.5 kA 690 V AC 50/60 Hz IEC 60947-2 || 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 65 kA 440 V AC 50/60 Hz IEC 60947-2
Ip Degree Of Protection:
front cover IP40 IEC 60529
Line Rated Current:
25-25 A
Electrical Connection:
terminal nut, ON and OFF end
Operating Altitude:
6561.68 ft (2000 m) without derating || 5000 m with derating
Eu Rohs Directive:
Compliant with Exemptions
Trip Unit Name:
TM-D
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Width:
108 mm
Control Type:
toggle
Color:
Gray RAL 7016)
Breaking Capacity:
100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480/277 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 250 V DC UL 489
Device Short Name:
BJ 025
Sustainable Offer Status:
Green Premium product
Ik Degree Of Protection:
IK07 IEC 62262
Wire Stripping Length:
20 mm
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Pvc Free:
Yes
Circuit Breaker Application:
HACR rated
Net Weight:
1.241 kg
Ambient Air Temperature For Operation:
-25-70 °C

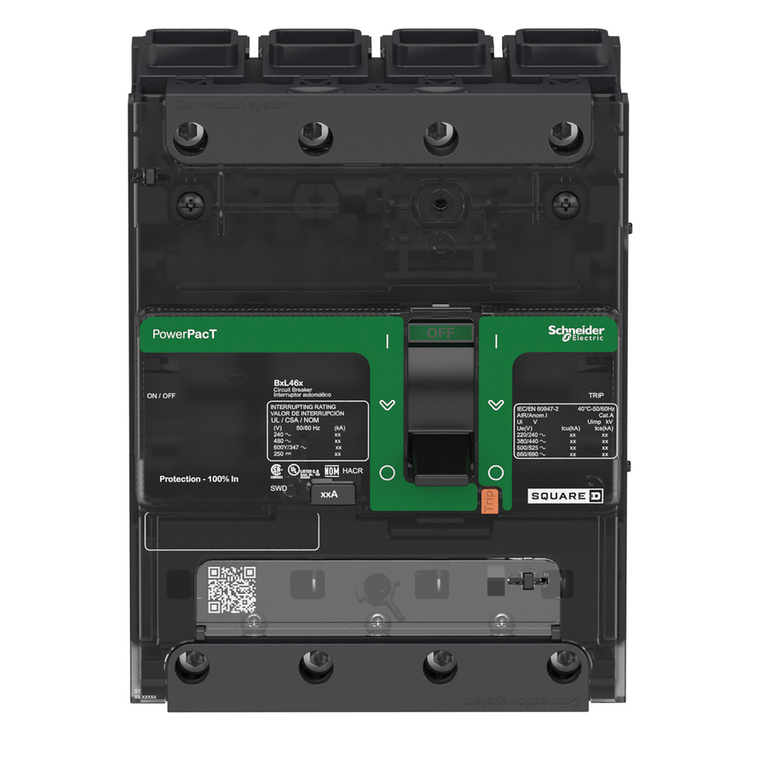

Product Name:
PowerPact B
Connection Pitch:
27 mm
Local Signalling:
presence of auxiliary contacts flag green)
Range:
PowerPact
Mounting Mode:
clip-on 35 mm symmetrical DIN rail) || by screws plate)
Mechanical Durability:
15000 cycles IEC 947-1 Annex K ed 5.2
Product Or Component Type:
circuit breaker
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Protected Poles Description:
4t
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker...
