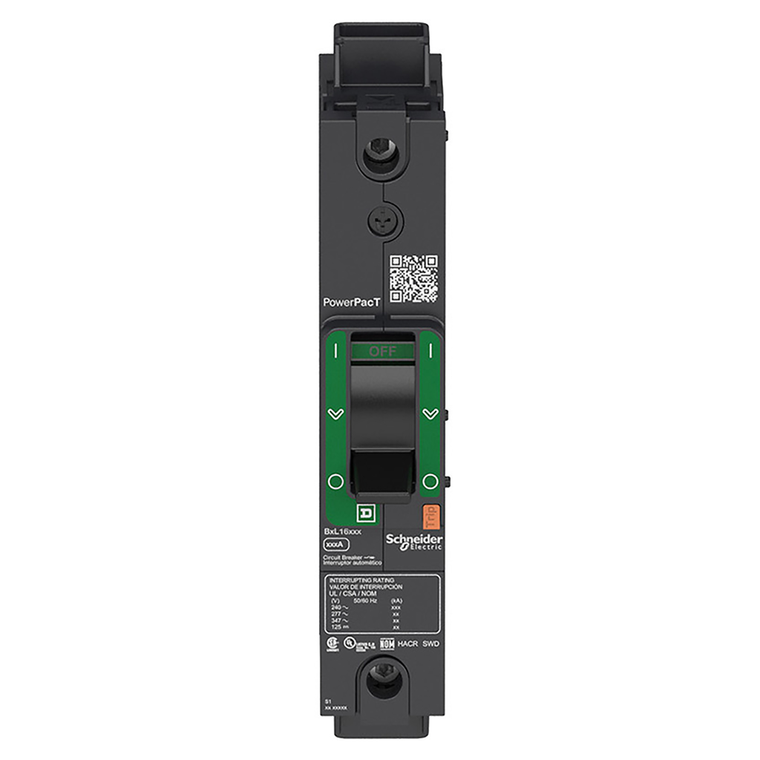

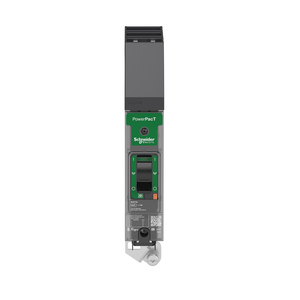

Schneider Electric BJL16040 Molded Case Circuit Breaker 347V 40A
Schneider Electric
$1,311.75
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric BJL16040 Molded Case Circuit Breaker 347V 40A
Circuit breaker, PowerPacT B, 40A, 1 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80%
- Utilisation Category:
- category A
- Tightening Torque:
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- Breaking Capacity Code:
- J
- Rohs Exemption Information:
- Yes
- Network Frequency:
- 50/60 Hz
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL 489
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure:
- ENVPEP1610005EN
- Electrical Connection:
- Everlink lug, line || Everlink lug, load
- Pollution Degree:
- 3 IEC 60947-1
- Breaking Capacity:
- 100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480Y/277 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 125 V DC UL 489
- Ambient Air Temperature For Operation:
- -25-70 °C
- Quality Labels:
- CE
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Wire Stripping Length:
- 20 mm
- Continuous Current Rating:
- 0.8
- Operating Altitude:
- 6561.68 ft (2000 m) without derating || 5000 m with derating
- Height:
- 137 mm
- Pvc Free:
- Yes
- Poles Description:
- 1P
- Circuit Breaker Application:
- HACR rated
- 9 Mm Pitches:
- 3
- Ambient Air Temperature For Storage:
- -50-85 °C
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Halogen Content Performance:
- Halogen free product
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Control Type:
- toggle
- Mechanical Durability:
- 15000 cycles IEC 947-1 Annex F ed 5.2
- Standards:
- EN/IEC 60947-2 || CSA C22.2 No 5 || GB 14048.2 || EN/IEC 60947-5-1 || NMX J-266 || UL 489 || NEMA AB1
- Color:
- Gray RAL 7016)
- Connection Pitch:
- 27 mm
- Ik Degree Of Protection:
- IK07 IEC 62262
- Width:
- 27 mm
- Product Name:
- PowerPact B
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220...240 V AC 50/60 Hz IEC 60947-2
- Trip Unit Technology:
- thermal-magneticTM-D,
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Or Component Type:
- circuit breaker
- Awg Gauge:
- AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- Quantity Per Set:
- set of 1
- Net Weight:
- 0.51 kg
- Device Short Name:
- BJ 040
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Mercury Free:
- Yes
- Trip Unit Name:
- TM-D
- Eu Rohs Directive:
- Compliant
- Line Rated Current:
- 40-40 A
- Protected Poles Description:
- 1t
- Range:
- PowerPact
- Depth:
- 80 mm
- Sustainable Offer Status:
- Green Premium product
- Mounting Mode:
- clip-on 35 mm symmetrical DIN rail) || by screws plate)
- Suitability For Isolation:
- yes IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 In
- Device Application:
- distribution
