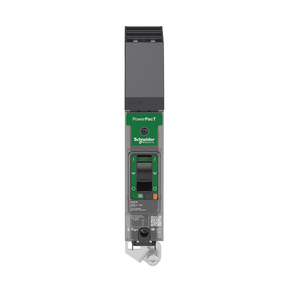

Schneider Electric BJL16100 Molded Case Circuit Breaker 347V 100A

(No reviews yet) Write a Review

Write a Review

Schneider Electric BJL16100 Molded Case Circuit Breaker 347V 100A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BJL16100

UPC:

3606481194008

MPN:

Condition:

New

Device Short Name:

BJ 100

Connection Pitch:

27 mm

Awg Gauge:

AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper

Product Name:

PowerPact B

Breaking Capacity Code:

J

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Net Weight:

0.51 kg

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Wire Stripping Length:

20 mm

Mounting Mode:

clip-on 35 mm symmetrical DIN rail) || by screws plate)

Circuit Breaker Application:

HACR rated

Poles Description:

1P

Line Rated Current:

100-100 A

Standards:

EN/IEC 60947-5-1 || NMX J-266 || EN/IEC 60947-2 || UL 489 || GB 14048.2 || CSA C22.2 No 5 || NEMA AB1

Ik Degree Of Protection:

IK07 IEC 62262

Quantity Per Set:

set of 1

Color:

Gray RAL 7016)

Mercury Free:

Yes

Electrical Durability:

10000 cycles IEC 947-1 Annex K ed 5.2 In

Utilisation Category:

category A

Mechanical Durability:

15000 cycles IEC 947-1 Annex F ed 5.2

Breaking Capacity:

100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480Y/277 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 125 V DC UL 489

Suitability For Isolation:

yes IEC 60947-2

Width:

27 mm

Halogen Content Performance:

Halogen free product

Trip Unit Name:

TM-D

Ip Degree Of Protection:

front cover IP40 IEC 60529

Ambient Air Temperature For Storage:

-50-85 °C

Rohs Exemption Information:

Yes

Continuous Current Rating:

0.8

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Range:

PowerPact

Ambient Air Temperature For Operation:

-25-70 °C

Control Type:

toggle

Height:

137 mm

Pvc Free:

Yes

Trip Unit Technology:

thermal-magneticTM-D,

Circularity Profile:

N/A

Device Application:

distribution

[Ue] Rated Operational Voltage:

240 V AC 50/60 Hz UL 489

California Proposition 65:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Or Component Type:

circuit breaker

Environmental Disclosure:

ENVPEP1610005EN

Quality Labels:

CE

Operating Altitude:

6561.68 ft (2000 m) without derating || 5000 m with derating

9 Mm Pitches:

3

Network Frequency:

50/60 Hz

Product Certifications:

UL || IEC || CCC || EAC || CSA || NOM

Tightening Torque:

5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)

Electrical Connection:

Everlink lug, line || Everlink lug, load

[Ui] Rated Insulation Voltage:

800 V IEC 60947-2

Protected Poles Description:

1t

Eu Rohs Directive:

Compliant with Exemptions

Sustainable Offer Status:

Green Premium product

[Ics] Rated Service Breaking Capacity:

65 kA 220...240 V AC 50/60 Hz IEC 60947-2

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Pollution Degree:

3 IEC 60947-1

Depth:

80 mm
