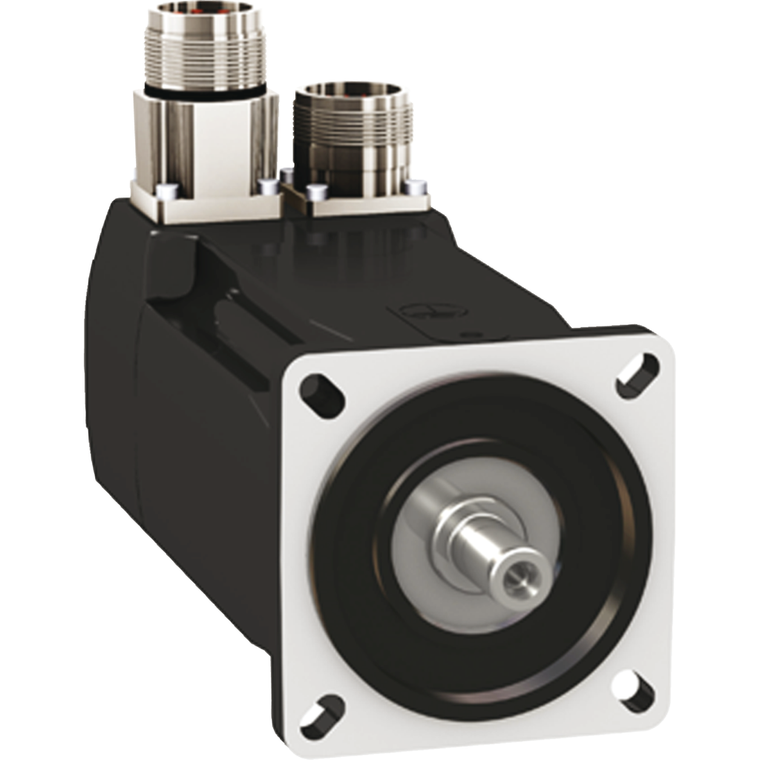

Schneider Electric BMH0701P37A1A Motor 70Mm Iec 1,4Nm Ip65/67 750W Key
SKU:
BMH0701P37A1A
UPC:
3606485193397
MPN:
Condition:
New
Motor Flange Size:
70 mm
Stator Electrical Time Constant:
2.8 ms 20 °C
Maximum Axial Force Fa:
0.2 x Fr
Torque Constant:
0.79 N.m/A 120 °C
China Rohs Regulation:
X
Circularity Profile:
N/A
Feedback Type:
multiturn SinCos Hiperface
Second Shaft:
without second shaft end
Mercury Free:
Yes
Centring Collar Diameter:
60 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Us] Rated Supply Voltage:
480 V
Maximum Radial Force Fr:
660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm
Shaft Length:
23 mm
Nominal Output Power:
350 W LXM32.U60N4 1.5 A, 400 V, three phase || 350 W LXM32.U60N4 1.5 A, 480 V, three phase || 700 W LXM32.D12N4 3 A, 400 V, three phase || 700 W LXM32.D12N4 3 A, 480 V, three phase
Holding Brake:
without
Net Weight:
1.6 kg
Nominal Torque:
1.1 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 1.1 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 1.3 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.3 N.m LXM32.D12N4 3 A, 480 V, three phase
Warranty:
18 months
Mounting Holes Diameter:
5.5 mm
Stator Inductance:
23.4 mH 20 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Peak Stall Torque:
4.2 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 4.2 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 4.2 N.m LXM32.D12N4 3 A, 400 V, three phase || 4.2 N.m LXM32.D12N4 3 A, 480 V, three phase
Type Of Cooling:
natural convection
Electrical Connection:
straight connectors
Continuous Stall Torque:
1.2 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 1.2 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 1.4 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.4 N.m LXM32.D12N4 3 A, 480 V, three phase
Nominal Speed:
3000 rpm LXM32.U60N4 1.5 A, 400 V, three phase || 3000 rpm LXM32.U60N4 1.5 A, 480 V, three phase || 5000 rpm LXM32.D12N4 3 A, 400 V, three phase || 5000 rpm LXM32.D12N4 3 A, 480 V, three phase
Maximum Mechanical Speed:
8000 rpm
Back Emf Constant:
50.72 V/krpm 120 °C
Product Compatibility:
LXM32.U60N4 400...480 V three phase || LXM32.D12N4 400...480 V three phase
Maximum Current Irms:
6 A LXM32.U60N4 || 6 A LXM32.D12N4
Shaft End:
keyed
Mounting Support:
international standard flange
Pvc Free:
Yes
Sustainable Offer Status:
Green Premium product
Number Of Mounting Holes:
4
Device Short Name:
BMH
Number Of Motor Stacks:
1
Centring Collar Depth:
2.5 mm
Stator Resistance:
8.3 Ohm 20 °C
Continuous Power:
1.05 W
Circle Diameter Of The Mounting Holes:
82 mm
Speed Feedback Resolution:
32768 points/turn x 4096 turns
Length:
122 mm
Rohs Exemption Information:
Yes
Rotor Inertia:
0.59 kg.cm²
Shaft Diameter:
11 mm
Range Compatibility:
Lexium 32
Key Width:
18 mm
Product Or Component Type:
servo motor
Continuous Stall Current:
1.78 A
Phase:
three phase
Environmental Disclosure:
ENVPEP111002EN
Maximum Permanent Current:
5.97 A
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
