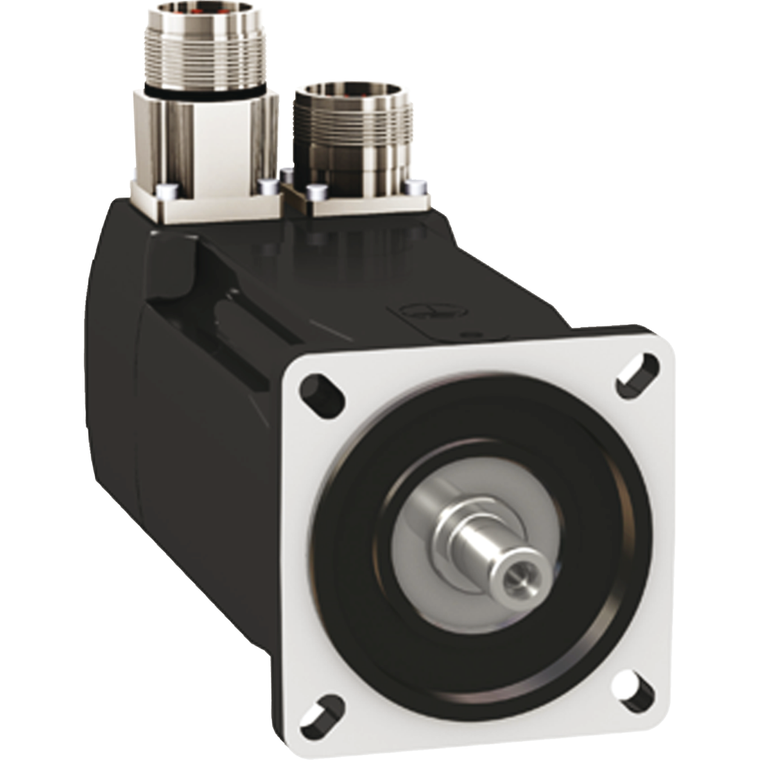

Schneider Electric BMH0702P11A1A Motor 70Mm Iec 2,5Nm Ip54 1160W Key

(No reviews yet) Write a Review

Write a Review

Schneider Electric BMH0702P11A1A Motor 70Mm Iec 2,5Nm Ip54 1160W Key

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BMH0702P11A1A

UPC:

3.60649E+12

MPN:

Condition:

New

Maximum Permanent Current:

9.68 A

Nominal Output Power:

700 W LXM32.D12N4 3 A, 400 V, three phase || 700 W LXM32.D12N4 3 A, 480 V, three phase

Length:

154 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Feedback Type:

single turn SinCos Hiperface

Mercury Free:

Yes

Stator Inductance:

12.2 mH 20 °C

Circularity Profile:

N/A

[Us] Rated Supply Voltage:

480 V

Circle Diameter Of The Mounting Holes:

82 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Continuous Stall Current:

2.94 A

Motor Flange Size:

70 mm

Back Emf Constant:

54.08 V/krpm 120 °C

Maximum Mechanical Speed:

8000 rpm

Maximum Axial Force Fa:

0.2 x Fr

Stator Resistance:

3.8 Ohm 20 °C

Nominal Torque:

2.2 N.m LXM32.D12N4 3 A, 400 V, three phase || 2.2 N.m LXM32.D12N4 3 A, 480 V, three phase

Centring Collar Diameter:

60 mm

Environmental Disclosure:

ENVPEP111002EN

Holding Brake:

without

Mounting Support:

international standard flange

Speed Feedback Resolution:

131072 points/turn

Ip Degree Of Protection:

IP54 standard

Second Shaft:

without second shaft end

Product Or Component Type:

servo motor

Sustainable Offer Status:

Green Premium product

Key Width:

18 mm

Torque Constant:

0.84 N.m/A 120 °C

Net Weight:

2.3 kg

Nominal Speed:

3000 rpm LXM32.D12N4 3 A, 400 V, three phase || 3000 rpm LXM32.D12N4 3 A, 480 V, three phase

Product Compatibility:

LXM32.D12N4 400...480 V three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Current Irms:

9.7 A LXM32.D12N4

Continuous Stall Torque:

2.5 N.m LXM32.D12N4 3 A, 400 V, three phase || 2.5 N.m LXM32.D12N4 3 A, 480 V, three phase

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Centring Collar Depth:

2.5 mm

Range Compatibility:

Lexium 32

Maximum Radial Force Fr:

710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm || 410 N 5000 rpm || 390 N 6000 rpm

Number Of Mounting Holes:

4

Number Of Motor Poles:

10

Pvc Free:

Yes

Device Short Name:

BMH

Shaft Length:

23 mm

Shaft End:

keyed

Shaft Diameter:

11 mm

Phase:

three phase

Continuous Power:

1.51 W

Type Of Cooling:

natural convection

Mounting Holes Diameter:

5.5 mm

Electrical Connection:

straight connectors

Rotor Inertia:

1.13 kg.cm²

Warranty:

18 months

Peak Stall Torque:

7.4 N.m LXM32.D12N4 3 A, 400 V, three phase || 7.4 N.m LXM32.D12N4 3 A, 480 V, three phase

Number Of Motor Stacks:

2

Stator Electrical Time Constant:

3.2 ms 20 °C

China Rohs Regulation:

X

Datasheet:

View
