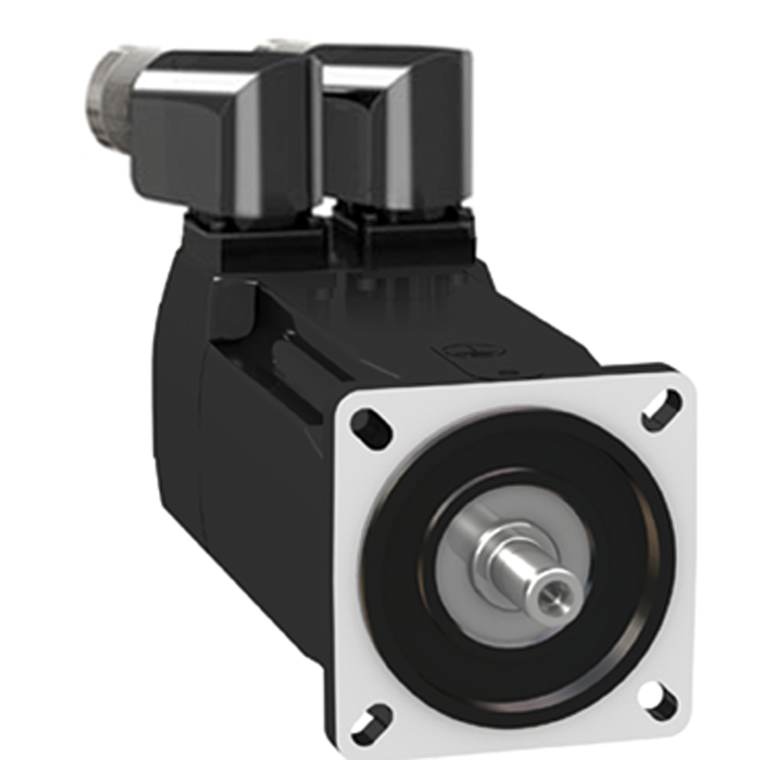

Schneider Electric BMH0702P16A2A Motor 70Mm Iec 2,5Nm Ip54 1160W Key
Schneider Electric
$933.90
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 8000RPM and parallel keyed shaft without holding brake. It is equipped with a SinCos Hiperface® encoder (32768 points/turn) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V, a continuous stall current of 2.94A and a continuous power of 1.51W. The shaft dimensions are 11mm (Diameter) x 23mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP54 rated product. Its dimensions are 154mm (Length) x 70mm (Width), centring collar dimensions are 2.5mm (Depth) x 60mm (Diameter) with 82mm circle diameter of the mounting hole. It weighs 2.3kg. This product is compatible with Lexium 32 servo drives. It supports international standard 70mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.
- Type Of Cooling:
- natural convection
- Stator Resistance:
- 3.8 Ohm 20 °C
- Shaft End:
- keyed
- Key Width:
- 18 mm
- Length:
- 154 mm
- Number Of Mounting Holes:
- 4
- Peak Stall Torque:
- 7.4 N.m LXM32.D12N4 3 A, 400 V, three phase || 7.4 N.m LXM32.D12N4 3 A, 480 V, three phase
- Shaft Diameter:
- 11 mm
- Pvc Free:
- Yes
- Stator Electrical Time Constant:
- 3.2 ms 20 °C
- Back Emf Constant:
- 54.08 V/krpm 120 °C
- Rotor Inertia:
- 1.13 kg.cm²
- Maximum Radial Force Fr:
- 710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm || 410 N 5000 rpm || 390 N 6000 rpm
- Motor Flange Size:
- 70 mm
- Second Shaft:
- without second shaft end
- Mercury Free:
- Yes
- Continuous Stall Current:
- 2.94 A
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- N/A
- Number Of Motor Stacks:
- 2
- Environmental Disclosure:
- ENVPEP111002EN
- Maximum Mechanical Speed:
- 8000 rpm
- Net Weight:
- 2.3 kg
- Mounting Support:
- international standard flange
- Holding Brake:
- without
- [Us] Rated Supply Voltage:
- 480 V
- Speed Feedback Resolution:
- 32768 points/turn
- Maximum Axial Force Fa:
- 0.2 x Fr
- Circle Diameter Of The Mounting Holes:
- 82 mm
- Device Short Name:
- BMH
- Centring Collar Diameter:
- 60 mm
- Maximum Current Irms:
- 9.7 A LXM32.D12N4
- Torque Constant:
- 0.84 N.m/A 120 °C
- Continuous Stall Torque:
- 2.5 N.m LXM32.D12N4 3 A, 400 V, three phase || 2.5 N.m LXM32.D12N4 3 A, 480 V, three phase
- Nominal Output Power:
- 700 W LXM32.D12N4 3 A, 400 V, three phase || 700 W LXM32.D12N4 3 A, 480 V, three phase
- Number Of Motor Poles:
- 10
- Nominal Torque:
- 2.2 N.m LXM32.D12N4 3 A, 400 V, three phase || 2.2 N.m LXM32.D12N4 3 A, 480 V, three phase
- Rohs Exemption Information:
- Yes
- Range Compatibility:
- Lexium 32
- Phase:
- three phase
- Shaft Length:
- 23 mm
- Mounting Holes Diameter:
- 5.5 mm
- Electrical Connection:
- rotatable right-angled connectors
- China Rohs Regulation:
- X
- Centring Collar Depth:
- 2.5 mm
- Product Compatibility:
- LXM32.D12N4 400...480 V three phase
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Maximum Permanent Current:
- 9.68 A
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- servo motor
- Warranty:
- 18 months
- Feedback Type:
- single turn SinCos Hiperface
- Nominal Speed:
- 3000 rpm LXM32.D12N4 3 A, 400 V, three phase || 3000 rpm LXM32.D12N4 3 A, 480 V, three phase
- Continuous Power:
- 1.51 W
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ip Degree Of Protection:
- IP54 standard
- Stator Inductance:
- 12.2 mH 20 °C
- Datasheet:
- View
