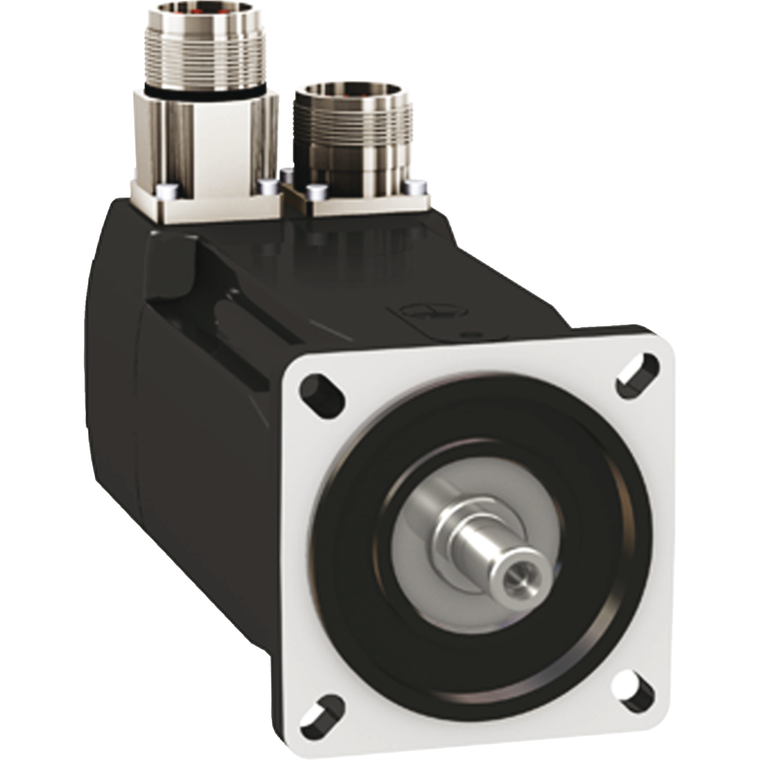

Schneider Electric BMH0703P02A1A Motor 70Mm Iec 3,4Nm Ip54 1320W No Key
SKU:
BMH0703P02A1A
UPC:
3.60649E+12
MPN:
Condition:
New
Number Of Motor Stacks:
3
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ip Degree Of Protection:
IP54 standard
Type Of Cooling:
natural convection
Electrical Connection:
straight connectors
Product Or Component Type:
servo motor
Sustainable Offer Status:
Green Premium product
Centring Collar Depth:
2.5 mm
Continuous Stall Current:
3.91 A
[Us] Rated Supply Voltage:
480 V
Stator Inductance:
8.6 mH 20 °C
Continuous Power:
1.68 W
Shaft End:
smooth shaft
Stator Resistance:
2.65 Ohm 20 °C
Mercury Free:
Yes
Maximum Radial Force Fr:
730 N 1000 rpm || 580 N 2000 rpm || 510 N 3000 rpm || 460 N 4000 rpm || 430 N 5000 rpm || 400 N 6000 rpm
Pvc Free:
Yes
Holding Brake:
without
Back Emf Constant:
55.8 V/krpm 120 °C
Feedback Type:
multiturn SinCos Hiperface
Device Short Name:
BMH
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Speed Feedback Resolution:
131072 points/turn x 4096 turns
Number Of Mounting Holes:
4
Nominal Torque:
2.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 2.4 N.m LXM32.D18N4 6 A, 480 V, three phase
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Stator Electrical Time Constant:
3.2 ms 20 °C
Motor Flange Size:
70 mm
Maximum Current Irms:
12.6 A LXM32.D18N4
Warranty:
18 months
Product Compatibility:
LXM32.D18N4 400...480 V three phase
Phase:
three phase
Rotor Inertia:
1.67 kg.cm²
Range Compatibility:
Lexium 32
Torque Constant:
0.87 N.m/A 120 °C
Peak Stall Torque:
10.2 N.m LXM32.D18N4 6 A, 400 V, three phase || 10.2 N.m LXM32.D18N4 6 A, 480 V, three phase
Circularity Profile:
N/A
Net Weight:
3 kg
Shaft Diameter:
14 mm
Number Of Motor Poles:
10
Shaft Length:
30 mm
Maximum Axial Force Fa:
0.2 x Fr
Continuous Stall Torque:
3.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 480 V, three phase
Nominal Speed:
5000 rpm LXM32.D18N4 6 A, 400 V, three phase || 5000 rpm LXM32.D18N4 6 A, 480 V, three phase
Nominal Output Power:
1300 W LXM32.D18N4 6 A, 400 V, three phase || 1300 W LXM32.D18N4 6 A, 480 V, three phase
Second Shaft:
without second shaft end
Circle Diameter Of The Mounting Holes:
82 mm
Mounting Support:
international standard flange
Maximum Mechanical Speed:
8000 rpm
Environmental Disclosure:
ENVPEP111002EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 8000RPM and smooth shaft end without holding...
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed...
