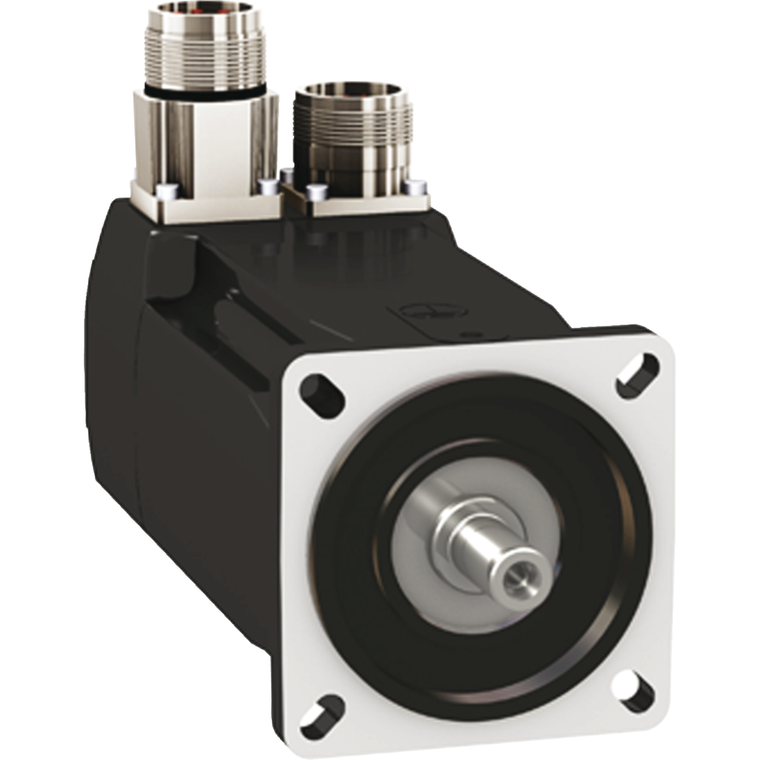

Schneider Electric BMH0703P06A1A Motor 70Mm Iec 3,4Nm Ip54 1320W No Key
SKU:
BMH0703P06A1A
UPC:
3.60649E+12
MPN:
Condition:
New
Environmental Disclosure:
ENVPEP111002EN
Number Of Motor Poles:
10
Net Weight:
3 kg
Feedback Type:
single turn SinCos Hiperface
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mounting Holes Diameter:
5.5 mm
Maximum Axial Force Fa:
0.2 x Fr
Number Of Motor Stacks:
3
[Us] Rated Supply Voltage:
480 V
Circle Diameter Of The Mounting Holes:
82 mm
Nominal Output Power:
1300 W LXM32.D18N4 6 A, 400 V, three phase || 1300 W LXM32.D18N4 6 A, 480 V, three phase
Warranty:
18 months
Stator Resistance:
2.65 Ohm 20 °C
Type Of Cooling:
natural convection
Sustainable Offer Status:
Green Premium product
Phase:
three phase
Circularity Profile:
N/A
Continuous Power:
1.68 W
Rotor Inertia:
1.67 kg.cm²
Shaft End:
smooth shaft
Product Compatibility:
LXM32.D18N4 400...480 V three phase
Torque Constant:
0.87 N.m/A 120 °C
Holding Brake:
without
Stator Inductance:
8.6 mH 20 °C
Electrical Connection:
straight connectors
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Back Emf Constant:
55.8 V/krpm 120 °C
Nominal Speed:
5000 rpm LXM32.D18N4 6 A, 400 V, three phase || 5000 rpm LXM32.D18N4 6 A, 480 V, three phase
Peak Stall Torque:
10.2 N.m LXM32.D18N4 6 A, 400 V, three phase || 10.2 N.m LXM32.D18N4 6 A, 480 V, three phase
Mercury Free:
Yes
Maximum Current Irms:
12.6 A LXM32.D18N4
Continuous Stall Torque:
3.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 480 V, three phase
Device Short Name:
BMH
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
servo motor
Maximum Radial Force Fr:
730 N 1000 rpm || 580 N 2000 rpm || 510 N 3000 rpm || 460 N 4000 rpm || 430 N 5000 rpm || 400 N 6000 rpm
Second Shaft:
without second shaft end
Stator Electrical Time Constant:
3.2 ms 20 °C
Motor Flange Size:
70 mm
Centring Collar Diameter:
60 mm
Centring Collar Depth:
2.5 mm
Maximum Mechanical Speed:
8000 rpm
Shaft Length:
30 mm
China Rohs Regulation:
X
Nominal Torque:
2.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 2.4 N.m LXM32.D18N4 6 A, 480 V, three phase
Ip Degree Of Protection:
IP54 standard
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 8000RPM and smooth shaft end without holding...
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed...
