Schneider Electric BMH0703T16A2A Motor 70Mm Iec 3,4Nm Ip54 1030W Key
Schneider Electric
$976.35
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

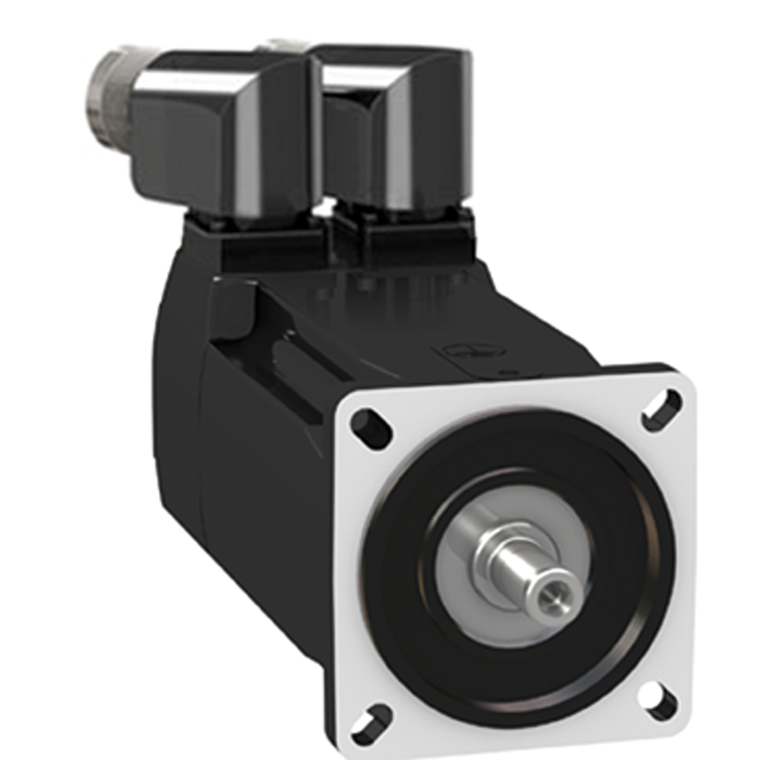

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 8000RPM and parallel keyed shaft without holding brake. It is equipped with a SinCos Hiperface® encoder (32768 points/turn) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 240V, a continuous stall current of 5.55A and a continuous power of 1.68W. The shaft dimensions are 14mm (Diameter) x 30mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP54 rated product. Its dimensions are 186mm (Length) x 70mm (Width), centring collar dimensions are 2.5mm (Depth) x 60mm (Diameter) with 82mm circle diameter of the mounting hole. It weighs 3kg. This product is compatible with Lexium 32 servo drives. It supports international standard 70mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.
- Maximum Radial Force Fr:
- 730 N 1000 rpm || 580 N 2000 rpm || 510 N 3000 rpm || 460 N 4000 rpm || 430 N 5000 rpm || 400 N 6000 rpm
- Warranty:
- 18 months
- Speed Feedback Resolution:
- 32768 points/turn
- Phase:
- three phase
- Range Compatibility:
- Lexium 32
- Circle Diameter Of The Mounting Holes:
- 82 mm
- Feedback Type:
- single turn SinCos Hiperface
- Number Of Motor Poles:
- 10
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Stator Electrical Time Constant:
- 3.3 ms 20 °C
- Sustainable Offer Status:
- Green Premium product
- Continuous Power:
- 1.68 W
- Length:
- 186 mm
- Rohs Exemption Information:
- Yes
- Maximum Permanent Current:
- 17.84 A
- Shaft Length:
- 30 mm
- Continuous Stall Current:
- 5.55 A
- Second Shaft:
- without second shaft end
- Type Of Cooling:
- natural convection
- Device Short Name:
- BMH
- Maximum Mechanical Speed:
- 8000 rpm
- Net Weight:
- 3 kg
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Back Emf Constant:
- 39.3 V/krpm 120 °C
- Centring Collar Diameter:
- 60 mm
- Nominal Speed:
- 2000 rpm LXM32.D30M2 10 A, 115 V, single phase || 3000 rpm LXM32.D18M2 6 A, 230 V, single phase
- Maximum Current Irms:
- 15 A LXM32.D30M2 || 17.8 A LXM32.D18M2
- Mounting Holes Diameter:
- 5.5 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Compatibility:
- LXM32.D30M2 115 V single phase || LXM32.D18M2 230 V single phase
- Shaft Diameter:
- 14 mm
- Centring Collar Depth:
- 2.5 mm
- Circularity Profile:
- N/A
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Nominal Output Power:
- 650 W LXM32.D30M2 10 A, 115 V, single phase || 900 W LXM32.D18M2 6 A, 230 V, single phase
- Key Width:
- 20 mm
- Motor Flange Size:
- 70 mm
- Rotor Inertia:
- 1.67 kg.cm²
- Maximum Axial Force Fa:
- 0.2 x Fr
- Environmental Disclosure:
- ENVPEP111002EN
- Product Or Component Type:
- servo motor
- Number Of Motor Stacks:
- 3
- Peak Stall Torque:
- 8.7 N.m LXM32.D30M2 10 A, 115 V, single phase || 10.2 N.m LXM32.D18M2 6 A, 230 V, single phase
- Mercury Free:
- Yes
- Stator Inductance:
- 4.3 mH 20 °C
- Number Of Mounting Holes:
- 4
- Pvc Free:
- Yes
- [Us] Rated Supply Voltage:
- 240 V
- Torque Constant:
- 0.61 N.m/A 120 °C
- Shaft End:
- keyed
- Ip Degree Of Protection:
- IP54 standard
- Nominal Torque:
- 3.1 N.m LXM32.D30M2 10 A, 115 V, single phase || 2.9 N.m LXM32.D18M2 6 A, 230 V, single phase
- Holding Brake:
- without
- Electrical Connection:
- rotatable right-angled connectors
- Stator Resistance:
- 1.32 Ohm 20 °C
- Continuous Stall Torque:
- 3.4 N.m LXM32.D30M2 10 A, 115 V, single phase || 3.4 N.m LXM32.D18M2 6 A, 230 V, single phase
- Mounting Support:
- international standard flange
