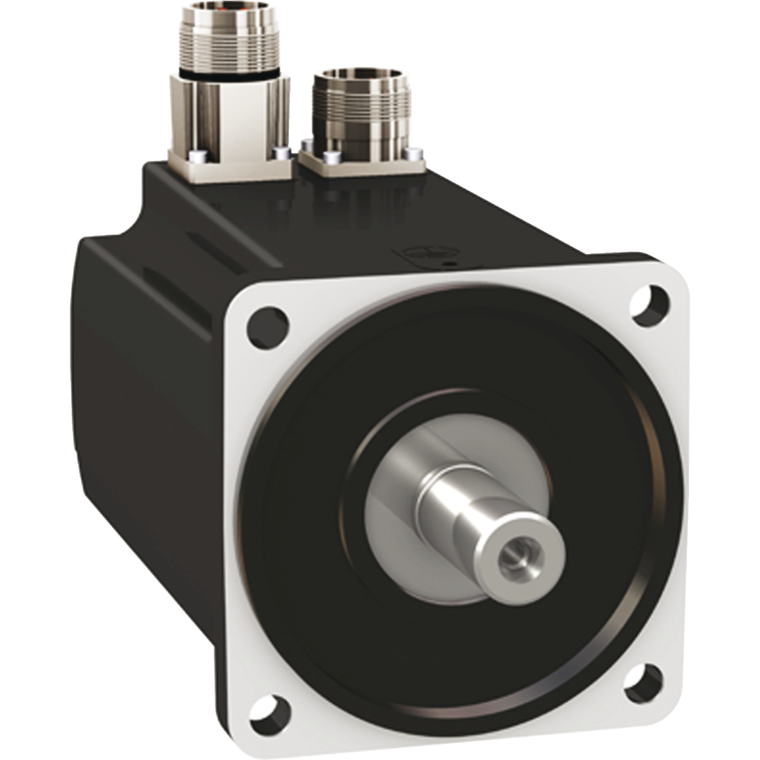

Schneider Electric BMH1001P02F1A Motor 100Mm Iec 3,6Nm Ip54 1260W No Key

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric BMH1001P02F1A Motor 100Mm Iec 3,6Nm Ip54 1260W No Key

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BMH1001P02F1A

UPC:

3.60649E+12

MPN:

Condition:

New

Number Of Mounting Holes:

4

Maximum Mechanical Speed:

6000 rpm

Holding Torque:

5.5 N.m holding brake

Range Compatibility:

Lexium 32

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Stator Inductance:

13.9 mH 20 °C

Number Of Motor Stacks:

1

Maximum Permanent Current:

11.93 A

Number Of Motor Poles:

10

Phase:

three phase

China Rohs Regulation:

X

Continuous Power:

1.76 W

Holding Brake:

with

Second Shaft:

without second shaft end

Length:

170.3 mm

Stator Resistance:

3.1 Ohm 20 °C

Shaft Length:

40 mm

Centring Collar Depth:

3.5 mm

Nominal Torque:

1.9 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.9 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 480 V, three phase

Maximum Current Irms:

11.9 A LXM32.D12N4 || 11.9 A LXM32.D18N4

Sustainable Offer Status:

Green Premium product

Nominal Output Power:

800 W LXM32.D12N4 3 A, 400 V, three phase || 800 W LXM32.D12N4 3 A, 480 V, three phase || 1300 W LXM32.D18N4 6 A, 400 V, three phase || 1300 W LXM32.D18N4 6 A, 480 V, three phase

Back Emf Constant:

70.3 V/krpm 120 °C

Net Weight:

4.8 kg

[Us] Rated Supply Voltage:

480 V

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Type Of Cooling:

natural convection

Warranty:

18 months

Shaft Diameter:

19 mm

Maximum Radial Force Fr:

900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm

Electrical Connection:

straight connectors

Ip Degree Of Protection:

IP54 standard

Peak Stall Torque:

10.8 N.m LXM32.D12N4 3 A, 400 V, three phase || 10.8 N.m LXM32.D12N4 3 A, 480 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 400 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 480 V, three phase

Brake Pull-In Power:

12 W

Product Compatibility:

LXM32.D12N4 400...480 V three phase || LXM32.D18N4 400...480 V three phase

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Pvc Free:

Yes

Motor Flange Size:

100 mm

Nominal Speed:

4000 rpm LXM32.D12N4 3 A, 400 V, three phase || 4000 rpm LXM32.D12N4 3 A, 480 V, three phase || 4000 rpm LXM32.D18N4 6 A, 400 V, three phase || 4000 rpm LXM32.D18N4 6 A, 480 V, three phase

Stator Electrical Time Constant:

4.5 ms 20 °C

Mounting Support:

international standard flange

Rohs Exemption Information:

Yes

Device Short Name:

BMH

Feedback Type:

multiturn SinCos Hiperface

Centring Collar Diameter:

95 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Or Component Type:

servo motor

Environmental Disclosure:

ENVPEP111002EN

Maximum Axial Force Fa:

0.2 x Fr

Shaft End:

smooth shaft

Circularity Profile:

N/A

Mounting Holes Diameter:

9 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Continuous Stall Torque:

3.3 N.m LXM32.D12N4 3 A, 400 V, three phase || 3.3 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 480 V, three phase

Rotor Inertia:

3.68 kg.cm²

Torque Constant:

1.1 N.m/A 120 °C

Continuous Stall Current:

3.15 A

Circle Diameter Of The Mounting Holes:

115 mm

Mercury Free:

Yes

Datasheet:

View
