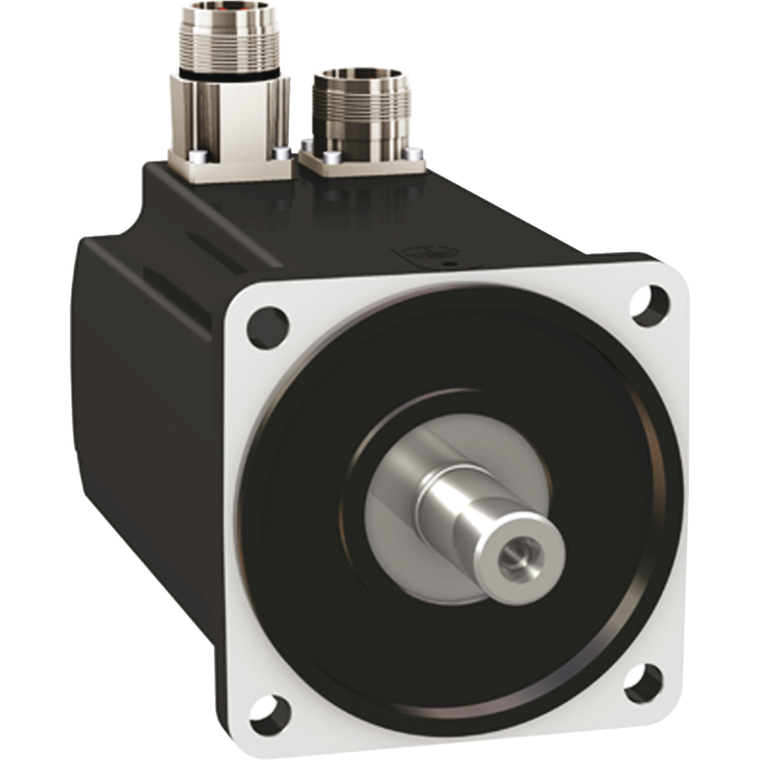

Schneider Electric BMH1001P11F1A Motor 100Mm Iec 3,4Nm Ip54 1260W Key

SKU:

BMH1001P11F1A

UPC:

3.60649E+12

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Number Of Motor Poles:

10

Stator Electrical Time Constant:

4.5 ms 20 °C

Pvc Free:

Yes

Nominal Torque:

1.9 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.9 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 480 V, three phase

Continuous Stall Torque:

3.3 N.m LXM32.D12N4 3 A, 400 V, three phase || 3.3 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 480 V, three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Net Weight:

4.8 kg

Centring Collar Diameter:

95 mm

Speed Feedback Resolution:

131072 points/turn

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Key Width:

30 mm

Stator Resistance:

3.1 Ohm 20 °C

Holding Torque:

5.5 N.m holding brake

Continuous Power:

1.76 W

Feedback Type:

single turn SinCos Hiperface

Nominal Speed:

4000 rpm LXM32.D12N4 3 A, 400 V, three phase || 4000 rpm LXM32.D12N4 3 A, 480 V, three phase || 4000 rpm LXM32.D18N4 6 A, 400 V, three phase || 4000 rpm LXM32.D18N4 6 A, 480 V, three phase

Mounting Support:

international standard flange

Centring Collar Depth:

3.5 mm

[Us] Rated Supply Voltage:

480 V

Environmental Disclosure:

ENVPEP111002EN

Type Of Cooling:

natural convection

Shaft Length:

40 mm

Range Compatibility:

Lexium 32

Shaft End:

keyed

Ip Degree Of Protection:

IP54 standard

Holding Brake:

with

Maximum Current Irms:

11.9 A LXM32.D12N4 || 11.9 A LXM32.D18N4

Number Of Motor Stacks:

1

Back Emf Constant:

70.3 V/krpm 120 °C

Warranty:

18 months

Rotor Inertia:

3.68 kg.cm²

Stator Inductance:

13.9 mH 20 °C

Product Compatibility:

LXM32.D12N4 400...480 V three phase || LXM32.D18N4 400...480 V three phase

Electrical Connection:

straight connectors

Length:

170.3 mm

Device Short Name:

BMH

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Nominal Output Power:

800 W LXM32.D12N4 3 A, 400 V, three phase || 800 W LXM32.D12N4 3 A, 480 V, three phase || 1300 W LXM32.D18N4 6 A, 400 V, three phase || 1300 W LXM32.D18N4 6 A, 480 V, three phase

Motor Flange Size:

100 mm

Circle Diameter Of The Mounting Holes:

115 mm

Torque Constant:

1.1 N.m/A 120 °C

Maximum Axial Force Fa:

0.2 x Fr

Shaft Diameter:

19 mm

Maximum Permanent Current:

11.93 A

Brake Pull-In Power:

12 W

Product Or Component Type:

servo motor

Continuous Stall Current:

3.15 A

China Rohs Regulation:

X

Maximum Mechanical Speed:

6000 rpm

Number Of Mounting Holes:

4

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Peak Stall Torque:

10.8 N.m LXM32.D12N4 3 A, 400 V, three phase || 10.8 N.m LXM32.D12N4 3 A, 480 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 400 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 480 V, three phase

Sustainable Offer Status:

Green Premium product

Mounting Holes Diameter:

9 mm

Maximum Radial Force Fr:

900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm

Circularity Profile:

N/A

Second Shaft:

without second shaft end

Mercury Free:

Yes

Phase:

three phase
