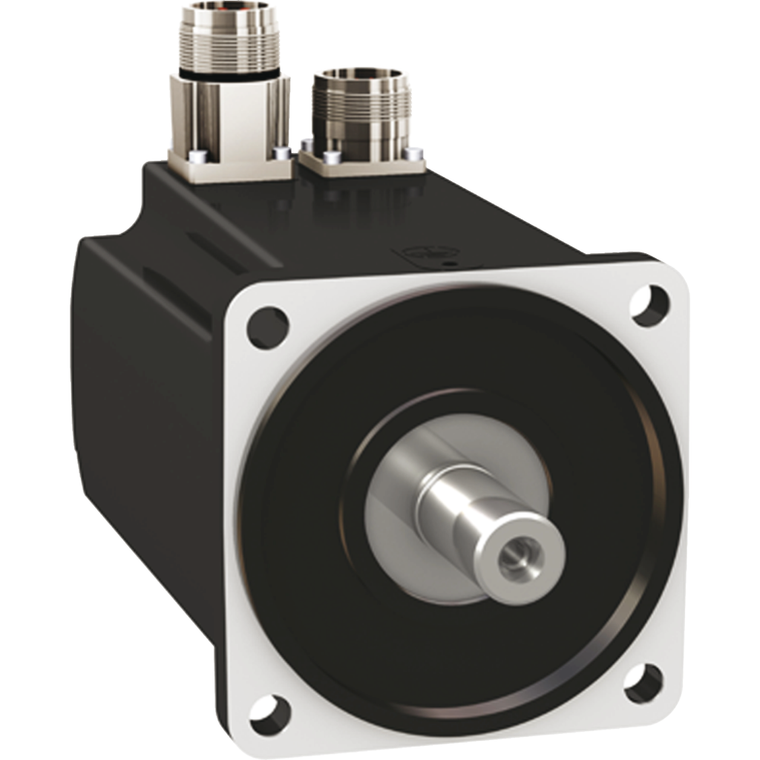

Schneider Electric BMH1001P16F1A Motor 100Mm Iec 3,6Nm Ip54 1260W Key

SKU:

BMH1001P16F1A

UPC:

3.60649E+12

MPN:

Condition:

New

Ip Degree Of Protection:

IP54 standard

Maximum Axial Force Fa:

0.2 x Fr

Nominal Speed:

4000 rpm LXM32.D12N4 3 A, 400 V, three phase || 4000 rpm LXM32.D12N4 3 A, 480 V, three phase || 4000 rpm LXM32.D18N4 6 A, 400 V, three phase || 4000 rpm LXM32.D18N4 6 A, 480 V, three phase

Speed Feedback Resolution:

32768 points/turn

Net Weight:

4.8 kg

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Torque Constant:

1.1 N.m/A 120 °C

Rotor Inertia:

3.68 kg.cm²

Maximum Permanent Current:

11.93 A

Holding Torque:

5.5 N.m holding brake

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Holes Diameter:

9 mm

Nominal Output Power:

800 W LXM32.D12N4 3 A, 400 V, three phase || 800 W LXM32.D12N4 3 A, 480 V, three phase || 1300 W LXM32.D18N4 6 A, 400 V, three phase || 1300 W LXM32.D18N4 6 A, 480 V, three phase

Rohs Exemption Information:

Yes

Shaft Diameter:

19 mm

Brake Pull-In Power:

12 W

Key Width:

30 mm

Warranty:

18 months

Centring Collar Depth:

3.5 mm

Environmental Disclosure:

ENVPEP111002EN

Maximum Current Irms:

11.9 A LXM32.D12N4 || 11.9 A LXM32.D18N4

Product Compatibility:

LXM32.D12N4 400...480 V three phase || LXM32.D18N4 400...480 V three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Back Emf Constant:

70.3 V/krpm 120 °C

Device Short Name:

BMH

Number Of Motor Poles:

10

Continuous Power:

1.76 W

Peak Stall Torque:

10.8 N.m LXM32.D12N4 3 A, 400 V, three phase || 10.8 N.m LXM32.D12N4 3 A, 480 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 400 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 480 V, three phase

Holding Brake:

with

Maximum Mechanical Speed:

6000 rpm

Phase:

three phase

Electrical Connection:

straight connectors

Sustainable Offer Status:

Green Premium product

Stator Resistance:

3.1 Ohm 20 °C

Continuous Stall Torque:

3.3 N.m LXM32.D12N4 3 A, 400 V, three phase || 3.3 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 480 V, three phase

Product Or Component Type:

servo motor

Pvc Free:

Yes

Number Of Mounting Holes:

4

Stator Electrical Time Constant:

4.5 ms 20 °C

Second Shaft:

without second shaft end

Shaft End:

keyed

China Rohs Regulation:

X

Number Of Motor Stacks:

1

[Us] Rated Supply Voltage:

480 V

Motor Flange Size:

100 mm

Length:

170.3 mm

Circle Diameter Of The Mounting Holes:

115 mm

Centring Collar Diameter:

95 mm

Continuous Stall Current:

3.15 A

Nominal Torque:

1.9 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.9 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 480 V, three phase

Mercury Free:

Yes

Type Of Cooling:

natural convection

Stator Inductance:

13.9 mH 20 °C

Circularity Profile:

N/A

Range Compatibility:

Lexium 32

Mounting Support:

international standard flange

Feedback Type:

single turn SinCos Hiperface

Shaft Length:

40 mm

Maximum Radial Force Fr:

900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm
