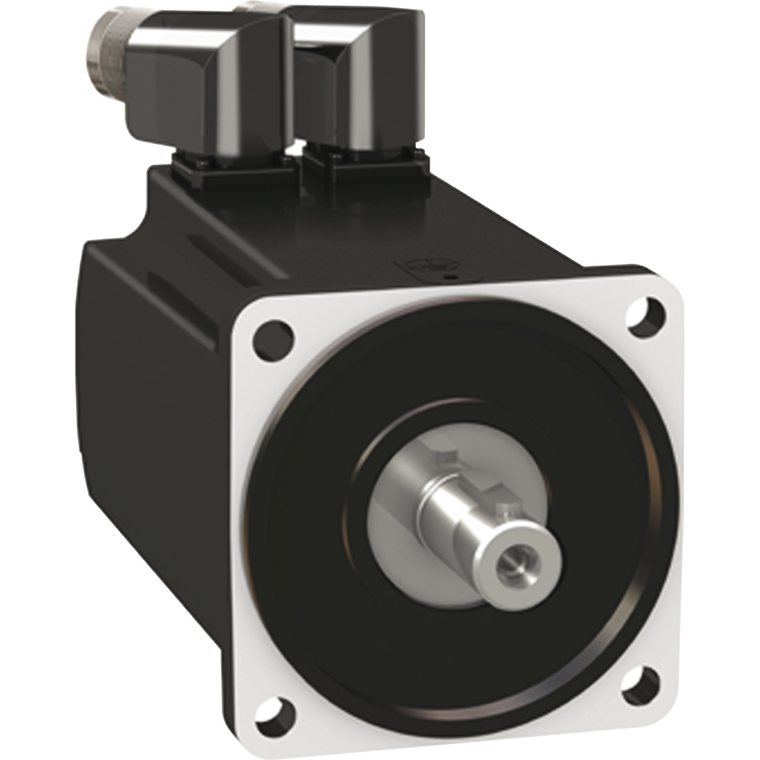

Schneider Electric BMH1001P16F2A Motor 100Mm Iec 3,6Nm Ip54 1260W Key

SKU:

BMH1001P16F2A

UPC:

3606485195681

MPN:

Condition:

New

Product Compatibility:

LXM32.D12N4 400...480 V three phase || LXM32.D18N4 400...480 V three phase

Holding Torque:

5.5 N.m holding brake

Feedback Type:

single turn SinCos Hiperface

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shaft Length:

40 mm

Number Of Mounting Holes:

4

Peak Stall Torque:

10.8 N.m LXM32.D12N4 3 A, 400 V, three phase || 10.8 N.m LXM32.D12N4 3 A, 480 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 400 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 480 V, three phase

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Or Component Type:

servo motor

Nominal Speed:

4000 rpm LXM32.D12N4 3 A, 400 V, three phase || 4000 rpm LXM32.D12N4 3 A, 480 V, three phase || 4000 rpm LXM32.D18N4 6 A, 400 V, three phase || 4000 rpm LXM32.D18N4 6 A, 480 V, three phase

Mercury Free:

Yes

Holding Brake:

with

Back Emf Constant:

70.3 V/krpm 120 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Current Irms:

11.9 A LXM32.D12N4 || 11.9 A LXM32.D18N4

Maximum Mechanical Speed:

6000 rpm

Circularity Profile:

N/A

Maximum Radial Force Fr:

900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm

Length:

170.3 mm

Device Short Name:

BMH

Ip Degree Of Protection:

IP54 standard

Type Of Cooling:

natural convection

Net Weight:

4.8 kg

Electrical Connection:

rotatable right-angled connectors

Torque Constant:

1.1 N.m/A 120 °C

Nominal Torque:

1.9 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.9 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 480 V, three phase

Nominal Output Power:

800 W LXM32.D12N4 3 A, 400 V, three phase || 800 W LXM32.D12N4 3 A, 480 V, three phase || 1300 W LXM32.D18N4 6 A, 400 V, three phase || 1300 W LXM32.D18N4 6 A, 480 V, three phase

Centring Collar Diameter:

95 mm

Warranty:

18 months

Environmental Disclosure:

ENVPEP111002EN

Continuous Stall Torque:

3.3 N.m LXM32.D12N4 3 A, 400 V, three phase || 3.3 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 480 V, three phase

Pvc Free:

Yes

Stator Electrical Time Constant:

4.5 ms 20 °C

Speed Feedback Resolution:

32768 points/turn

Maximum Permanent Current:

11.93 A

Number Of Motor Poles:

10

Continuous Power:

1.76 W

Shaft Diameter:

19 mm

Rohs Exemption Information:

Yes

Mounting Holes Diameter:

9 mm

Key Width:

30 mm

Number Of Motor Stacks:

1

Shaft End:

keyed

Maximum Axial Force Fa:

0.2 x Fr

Stator Resistance:

3.1 Ohm 20 °C

Brake Pull-In Power:

12 W

Circle Diameter Of The Mounting Holes:

115 mm

Second Shaft:

without second shaft end

Mounting Support:

international standard flange

Phase:

three phase

Continuous Stall Current:

3.15 A

Rotor Inertia:

3.68 kg.cm²

Sustainable Offer Status:

Green Premium product

[Us] Rated Supply Voltage:

480 V

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range Compatibility:

Lexium 32

Stator Inductance:

13.9 mH 20 °C

China Rohs Regulation:

X

Centring Collar Depth:

3.5 mm

Motor Flange Size:

100 mm
