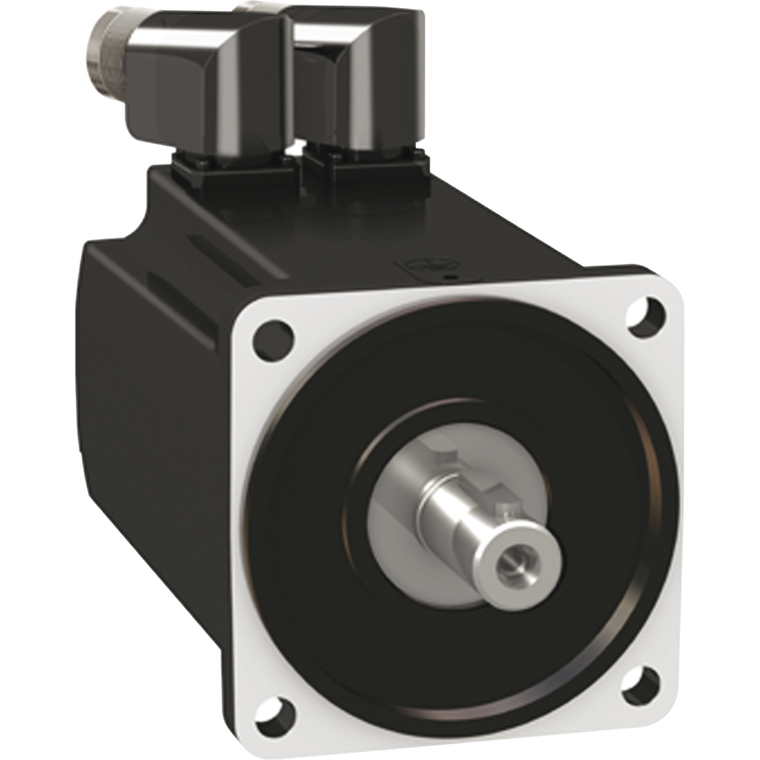

Schneider Electric BMH1001P17F2A Motor 100Mm Iec 3,6Nm Ip54 1260W Key

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric BMH1001P17F2A Motor 100Mm Iec 3,6Nm Ip54 1260W Key

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BMH1001P17F2A

UPC:

3.60649E+12

MPN:

Condition:

New

Maximum Axial Force Fa:

0.2 x Fr

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Motor Flange Size:

100 mm

Electrical Connection:

rotatable right-angled connectors

Range Compatibility:

Lexium 32

Rohs Exemption Information:

Yes

Warranty:

18 months

Product Or Component Type:

servo motor

Back Emf Constant:

70.3 V/krpm 120 °C

Maximum Permanent Current:

11.93 A

Second Shaft:

without second shaft end

Circle Diameter Of The Mounting Holes:

115 mm

Stator Electrical Time Constant:

4.5 ms 20 °C

Sustainable Offer Status:

Green Premium product

Centring Collar Depth:

3.5 mm

Holding Torque:

5.5 N.m holding brake

Continuous Stall Torque:

3.3 N.m LXM32.D12N4 3 A, 400 V, three phase || 3.3 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 480 V, three phase

Shaft Length:

40 mm

Nominal Output Power:

800 W LXM32.D12N4 3 A, 400 V, three phase || 800 W LXM32.D12N4 3 A, 480 V, three phase || 1300 W LXM32.D18N4 6 A, 400 V, three phase || 1300 W LXM32.D18N4 6 A, 480 V, three phase

Key Width:

30 mm

Continuous Stall Current:

3.15 A

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Peak Stall Torque:

10.8 N.m LXM32.D12N4 3 A, 400 V, three phase || 10.8 N.m LXM32.D12N4 3 A, 480 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 400 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 480 V, three phase

Mounting Support:

international standard flange

Stator Inductance:

13.9 mH 20 °C

China Rohs Regulation:

X

Nominal Torque:

1.9 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.9 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 480 V, three phase

Mercury Free:

Yes

Circularity Profile:

N/A

Environmental Disclosure:

ENVPEP111002EN

[Us] Rated Supply Voltage:

480 V

Net Weight:

4.8 kg

Shaft End:

keyed

Device Short Name:

BMH

Nominal Speed:

4000 rpm LXM32.D12N4 3 A, 400 V, three phase || 4000 rpm LXM32.D12N4 3 A, 480 V, three phase || 4000 rpm LXM32.D18N4 6 A, 400 V, three phase || 4000 rpm LXM32.D18N4 6 A, 480 V, three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Number Of Motor Stacks:

1

Number Of Mounting Holes:

4

Type Of Cooling:

natural convection

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Mechanical Speed:

6000 rpm

Centring Collar Diameter:

95 mm

Speed Feedback Resolution:

32768 points/turn x 4096 turns

Ip Degree Of Protection:

IP54 standard

Phase:

three phase

Maximum Radial Force Fr:

900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm

Feedback Type:

multiturn SinCos Hiperface

Holding Brake:

with

Product Compatibility:

LXM32.D12N4 400...480 V three phase || LXM32.D18N4 400...480 V three phase

Shaft Diameter:

19 mm

Maximum Current Irms:

11.9 A LXM32.D12N4 || 11.9 A LXM32.D18N4

Brake Pull-In Power:

12 W

Torque Constant:

1.1 N.m/A 120 °C

Length:

170.3 mm

Number Of Motor Poles:

10

Stator Resistance:

3.1 Ohm 20 °C

Pvc Free:

Yes

Continuous Power:

1.76 W

Rotor Inertia:

3.68 kg.cm²

Mounting Holes Diameter:

9 mm
