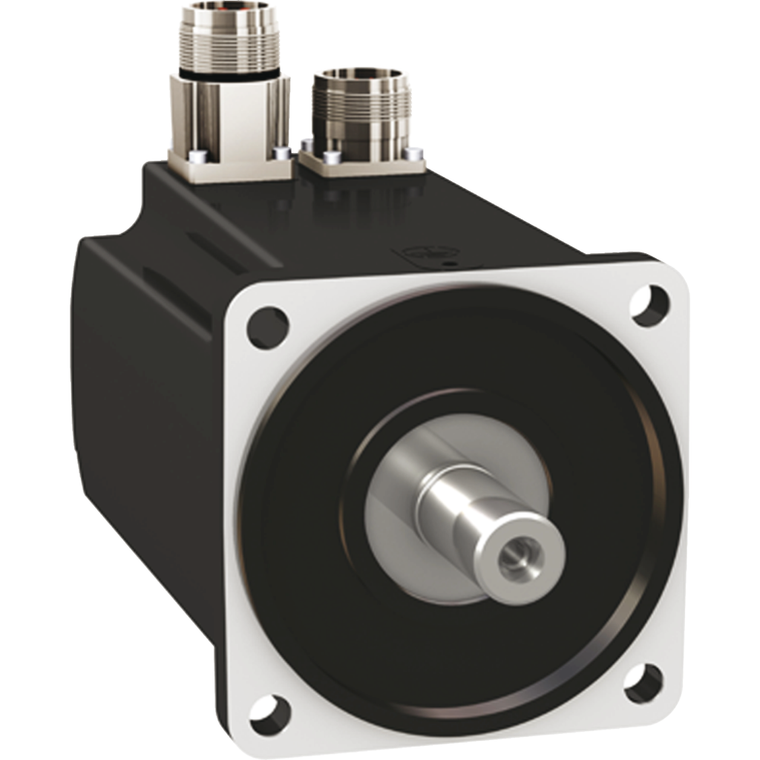

Schneider Electric BMH1001P21A1A Motor 100Mm Iec 3,4Nm Ip65/67 1260W No

Schneider Electric BMH1001P21A1A Motor 100Mm Iec 3,4Nm Ip65/67 1260W No

Schneider Electric
SKU:
BMH1001P21A1A
|
UPC:
3606485200187
$2,865.38
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 6000RPM and smooth shaft end without holding brake. It is an equipped with a single-turn SinCos Hiperface® feedback with 1,31,072 points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 3.15A and a continuous power of 1.76W. The shaft dimensions are 19mm (diameter) x 40mm (length). It is furnished with straight connectors for electrical connection. It is an IP65 and IP67 rated product. The length of this product is 128.6mm and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 3.34kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.D12N4 at 400V to 480V three phase and LXM32.D18N4 at 400V to 480V three phase. It supports 100mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
Additional Information
Second Shaft:
without second shaft end
Sustainable Offer Status:
Green Premium product
Shaft Diameter:
19 mm
Pvc Free:
Yes
Nominal Torque:
1.9 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.9 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 480 V, three phase
Torque Constant:
1.1 N.m/A 120 °C
Maximum Axial Force Fa:
0.2 x Fr
Number Of Mounting Holes:
4
Back Emf Constant:
70.3 V/krpm 120 °C
Length:
128.6 mm
Mounting Support:
international standard flange
Warranty:
18 months
Mercury Free:
Yes
Net Weight:
3.34 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Product Compatibility:
LXM32.D12N4 400...480 V three phase || LXM32.D18N4 400...480 V three phase
Rotor Inertia:
3.19 kg.cm²
China Rohs Regulation:
X
Mounting Holes Diameter:
9 mm
Number Of Motor Poles:
10
Continuous Stall Torque:
3.3 N.m LXM32.D12N4 3 A, 400 V, three phase || 3.3 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 480 V, three phase
Circle Diameter Of The Mounting Holes:
115 mm
Shaft End:
smooth shaft
Centring Collar Diameter:
95 mm
Peak Stall Torque:
10.8 N.m LXM32.D12N4 3 A, 400 V, three phase || 10.8 N.m LXM32.D12N4 3 A, 480 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 400 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 480 V, three phase
Centring Collar Depth:
3.5 mm
Holding Brake:
without
Type Of Cooling:
natural convection
Circularity Profile:
N/A
Product Or Component Type:
servo motor
[Us] Rated Supply Voltage:
480 V
Feedback Type:
single turn SinCos Hiperface
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Mechanical Speed:
6000 rpm
Phase:
three phase
Nominal Speed:
4000 rpm LXM32.D12N4 3 A, 400 V, three phase || 4000 rpm LXM32.D12N4 3 A, 480 V, three phase || 4000 rpm LXM32.D18N4 6 A, 400 V, three phase || 4000 rpm LXM32.D18N4 6 A, 480 V, three phase
Maximum Permanent Current:
11.93 A
Range Compatibility:
Lexium 32
Maximum Radial Force Fr:
900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Stator Inductance:
13.9 mH 20 °C
Continuous Stall Current:
3.15 A
Motor Flange Size:
100 mm
Rohs Exemption Information:
Yes
Stator Resistance:
3.1 Ohm 20 °C
Stator Electrical Time Constant:
4.5 ms 20 °C
Maximum Current Irms:
11.9 A LXM32.D12N4 || 11.9 A LXM32.D18N4
Electrical Connection:
straight connectors
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Device Short Name:
BMH
Speed Feedback Resolution:
131072 points/turn
Continuous Power:
1.76 W
Number Of Motor Stacks:
1
Shaft Length:
40 mm
Nominal Output Power:
800 W LXM32.D12N4 3 A, 400 V, three phase || 800 W LXM32.D12N4 3 A, 480 V, three phase || 1300 W LXM32.D18N4 6 A, 400 V, three phase || 1300 W LXM32.D18N4 6 A, 480 V, three phase
Environmental Disclosure:
ENVPEP111002EN
Datasheet:
View
